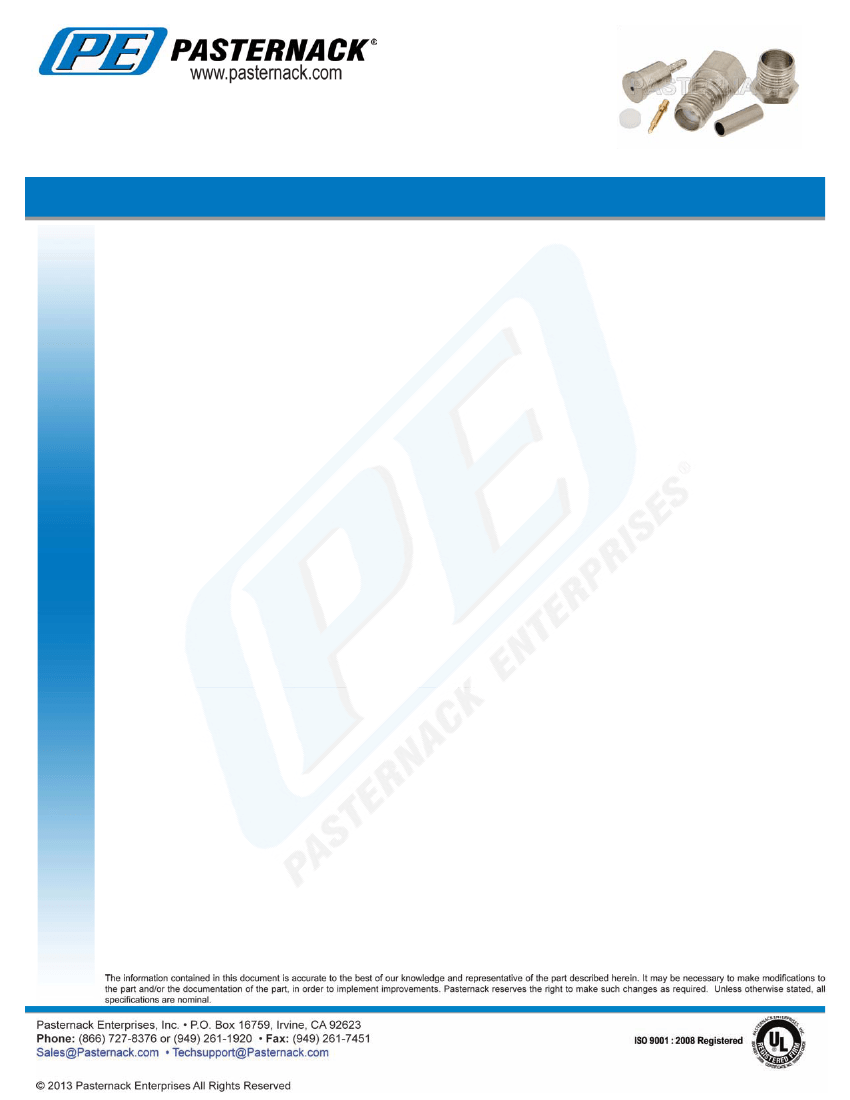

RP SMA Female Connector Crimp/Solder
Attachment For RG178, RG196
TECHNICAL DATA SHEET
RP SMA Female Connector Crimp/Solder Attachment For RG178, RG196
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
SMA Female Reverse Polarity
MIL-C-39012
RG178,RG196
Crimp/Solder
Straight
PE4799
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +165
1.078 [27.38]
0.312 [7.92]
0.013 [5.9]
SMA Female Reverse Polarity
Gold
MIL-G-45204
Brass, Nickel
Teflon
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
RP SMA Female Connector Crimp/Solder Attachment For RG178, RG196 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
RP SMA Female Connector Crimp/Solder Attachment For RG178, RG196 PE4799
URL:
http://www.pasternack.com/sma-female-reverse-polarity-rg178-rg196-connector-pe4799-p.aspx
PE4799 REV 01
1
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE4799

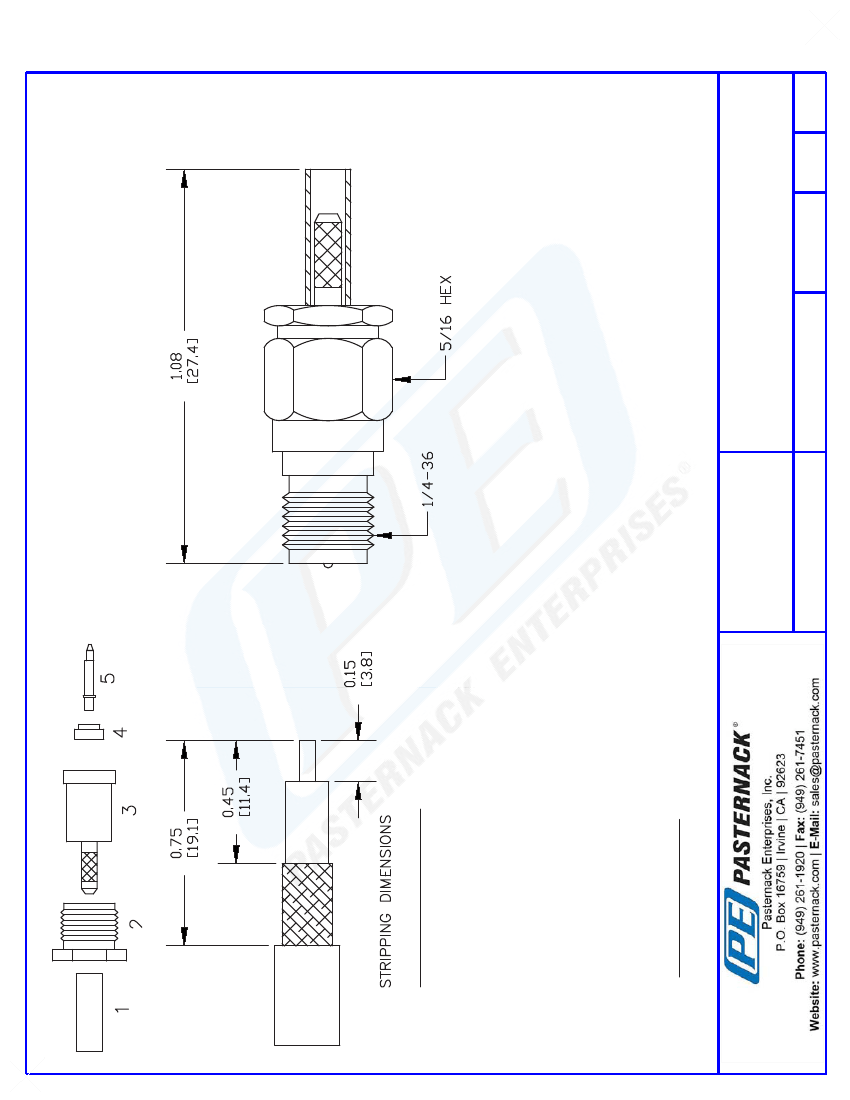

CAD Drawing
RP SMA Female Connector Crimp/Solder Attachment For RG178, RG196
PE4799 REV 01
ASSEMBLY PROCEDURES
1. SLIDE FERRULE (1) & CLAMP NUT (2) OVER
CABLE. STRIP CABLE AS SHOWN. TIN CENTER
CONDUCTOR.
2. FLAIR BRAID & INSERT EXTENSION (3) SLIDING
UNDER BRAID. CENTER CONDUCTOR PROTRUDING
THROUGH HOLE IN EXTENSION. SLIDE PTFE (4)
OVER CENTER CONDUCTOR.
3. SOLDER CONTACT (5) TO CENTER CONDUCTOR.
SLIDE FERRULE OVER BRAID & CRIMP. INSTALL
CABLE ASSEMBLY INTO BODY & TIGHTEN.
CRIMP SIZE REQUIRED
FERRULE: .100" HEX CRIMP TOOL
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
PE4799
FSCM NO. 53919
CAD FILE
XXXXXX
SCALE N/A
SIZE A
XXXX
2
