D-Sub Plug Right Angle Contact Crimp/
Solder Attachment For RG178, RG196
TECHNICAL DATA SHEET
D-Sub Plug Right Angle Contact Crimp/Solder Attachment For RG178, RG196
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
D-Sub Plug
RG178,RG196
Crimp/Solder
Right Angle
PE4826
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Height, in [mm]
.
0.735 [18.67]
0.605 [15.37]
0.006 [2.72]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Body Material and Plating
Dielectric Type
D-Sub Plug
Gold
Brass, Gold
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
Plotted and Other Data
Notes:
Values at 25 °C, sea level
D-Sub Plug Right Angle Contact Crimp/Solder Attachment For RG178, RG196 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
D-Sub Plug Right Angle Contact Crimp/Solder Attachment For RG178, RG196 PE4826
URL:
http://www.pasternack.com/d-sub-plug-standard-rg178-rg196-connector-pe4826-p.aspx
PE4826 REV 01
1
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE4826

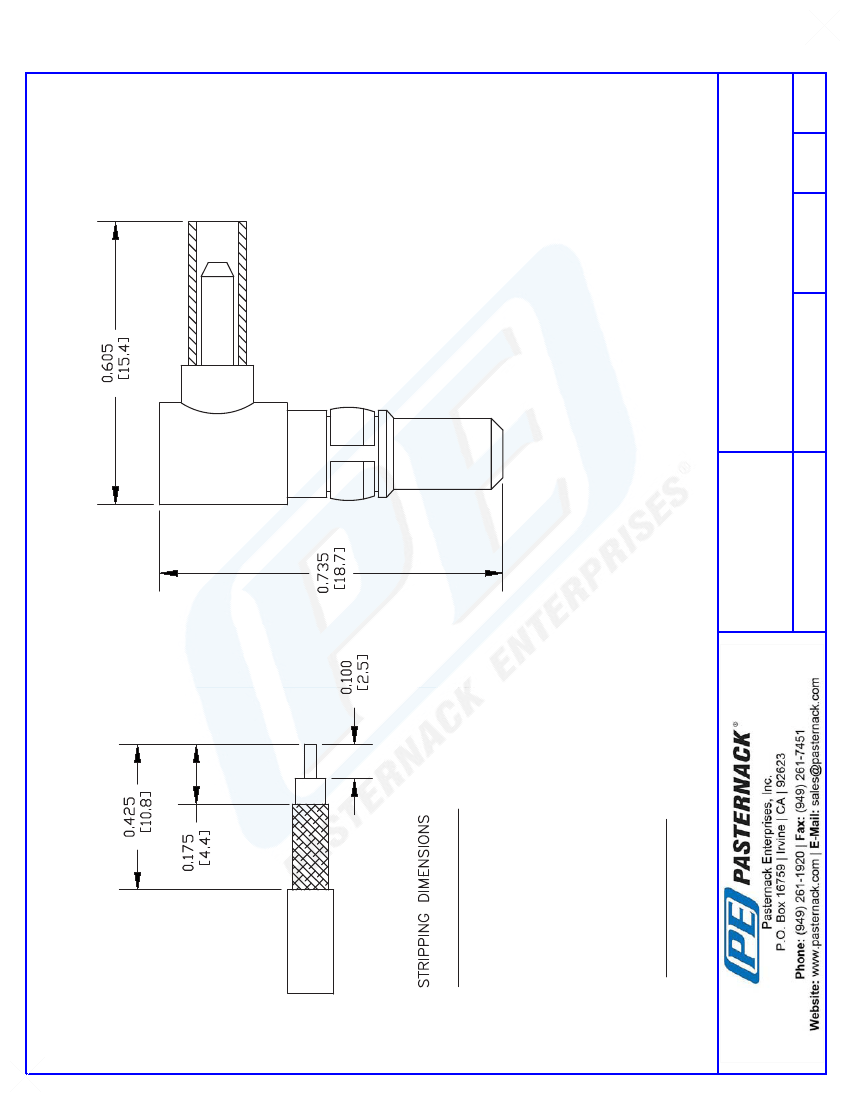

CAD Drawing
D-Sub Plug Right Angle Contact Crimp/Solder Attachment For RG178, RG196
PE4826 REV 01
ASSEMBLY PROCEDURES
1.
STRIP CABLE AS SHOWN.
2.
INSTALL CABLE INTO BODY OF CONNECTOR
AND SOFT SOLDER CENTER CONDUCTOR IN
PLACE.
3.
CRIMP FERRULE & SOLDER CAP IN PLACE.
CRIMP SIZE REQUIRED
FERRULE: .100" HEX CRIMP TOOL
PE4826
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
061002
SCALE N/A
SIZE A
127
2
