D-Sub Receptacle Contact Solder Attachment Thru

Hole PCB, .200 inch x .046 inch Hole Spacing

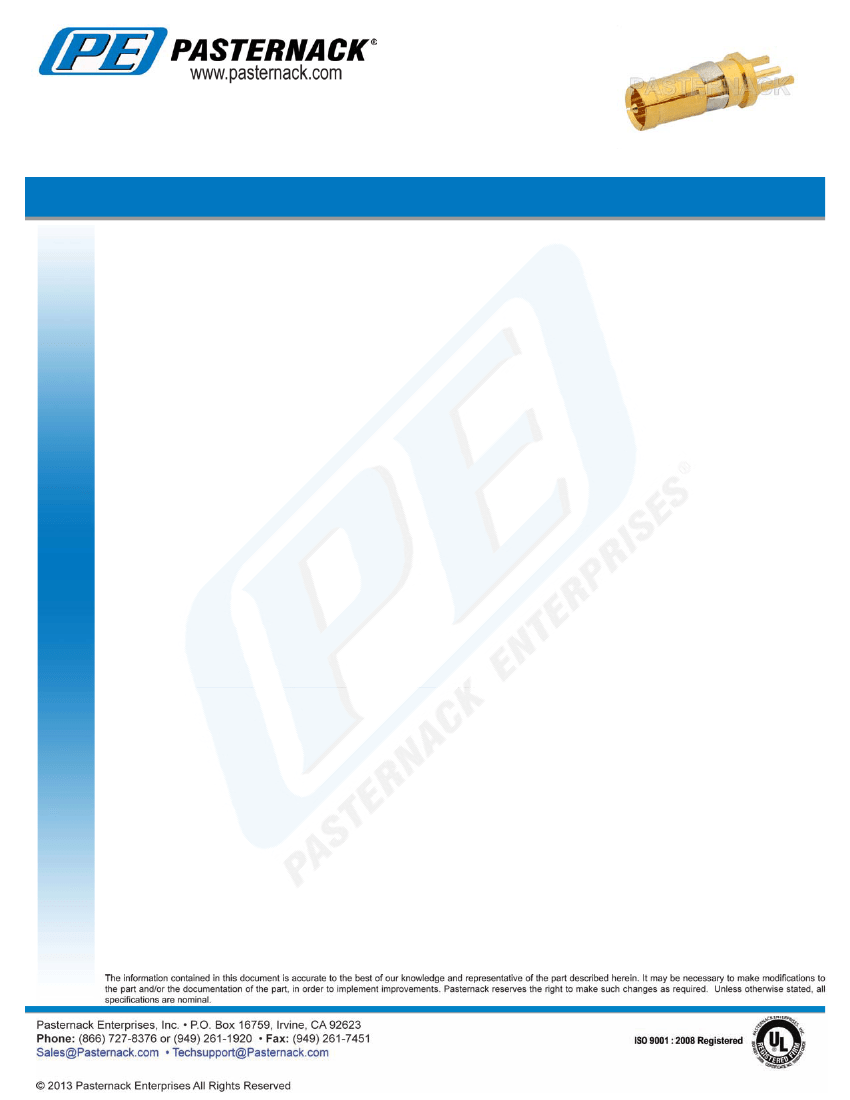

TECHNICAL DATA SHEET

PE4832

D-Sub Receptacle Contact Solder Attachment Thru Hole PCB, .200 inch x .046 inch Hole Spacing

Configuration

Connector

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

D-Sub Receptacle

Thru Hole

Solder

Straight

Electrical Specifications

Impedance, Ohms

Mechanical Specifications

Size

Length, in [mm]

Width/Dia., in [mm]

0.67 [17.02]

0.224 [5.69]

0.006 [2.72]

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Outer Conductor Material and Plating

Body Material and Plating

Dielectric Type

D-Sub Receptacle

Gold

Brass, Gold

PTFE

Compliance Certifications

(visit www.Pasternack.com for current document)

Plotted and Other Data

Notes:

Values at 25 °C, sea level

D-Sub Receptacle Contact Solder Attachment Thru Hole PCB, .200 inch x .046 inch Hole Spacing from Pasternack Enterprises

has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%

availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

D-Sub Receptacle Contact Solder Attachment Thru Hole PCB, .200 inch x .046 inch Hole Spacing

PE4832

URL:

http://www.pasternack.com/d-sub-receptacle-standard-thru-hole-pcb-connector-pe4832-p.aspx

PE4832 REV 01
