D-12180-4 datasheet, PDF - EEWORLD Datasheet

D-12180-4: DescriptionSplitter, 12000MHz Min, 18000MHz Max, 2dB Insertion Loss-Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size272KB，1 Pages; ManufacturerRLC Electronics Inc

Download Datasheet Parametric View All

D-12180-4 Overview

Splitter, 12000MHz Min, 18000MHz Max, 2dB Insertion Loss-Max,

Parameter Name	Attribute value
Maker	RLC Electronics Inc
Reach Compliance Code	unknown
Other features	SMA-F, ISOLATION-MIN (DB):15
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	23.01 dBm
Maximum insertion loss	2 dB
Maximum operating frequency	18000 MHz
Minimum operating frequency	12000 MHz
RF/Microwave Device Types	SPLITTER
Maximum voltage standing wave ratio	2

Isolated Power

Dividers 2, 4, 8 & 16 Way

RLC Electronics' In Phase Power Dividers are the smallest

units available in the industry today. Performance is improved

by utilizing 2-step transformers and two thick film resistive

elements. For close phase and amplitude tracking, these

"Wilkinson" dividers utilize precision etching of the single

microstrip board..

Specifications

Power:

10 watts avg. (outputs terminated with a VSWR

less that 1.35) 200mW avg. (outputs terminated with

any VSWR and phase)

Connectors:

SMA female

Impedance:

50 ohms

Environment:

MIL-E-5400, Class 1A

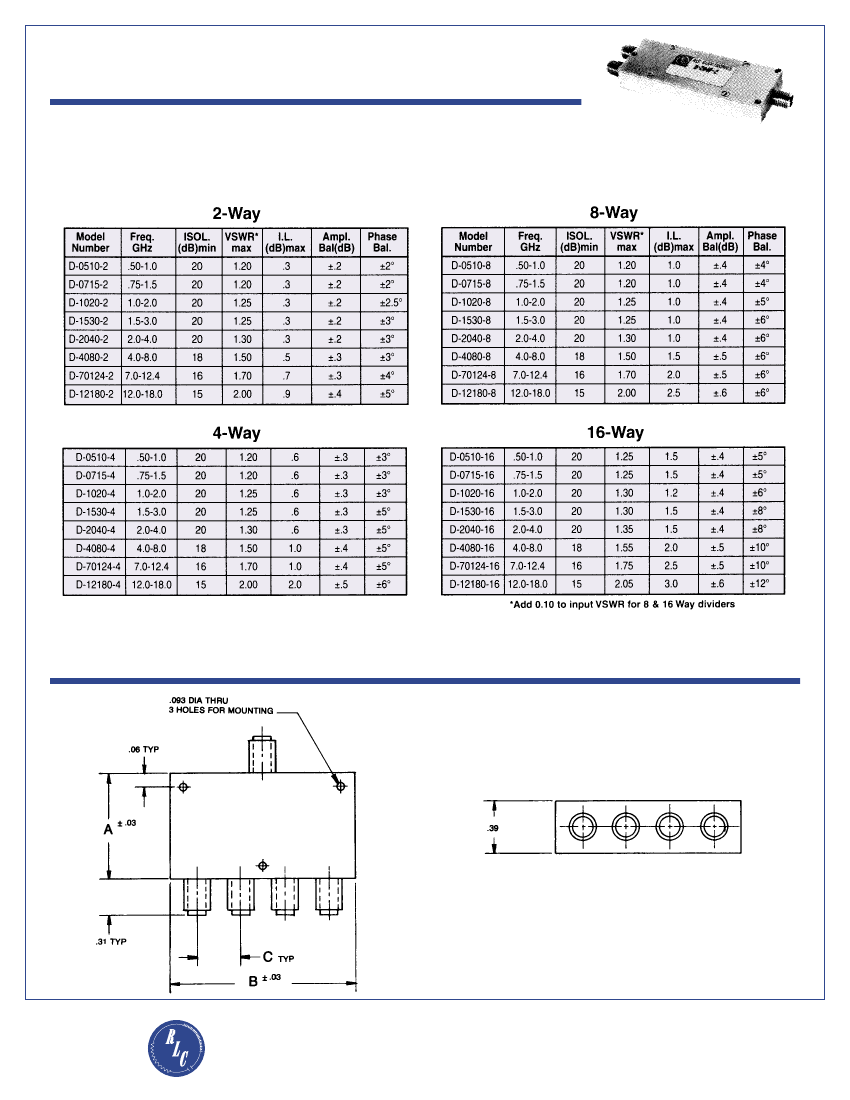

Outline Drawing

RLC ELECTRONICS, INC.

83 Radio Circle, Mount Kisco, New York 10549 • Telephone: 914-241-1334 • Fax: 914-241-1753

e-mail: sales@rlcelectronics.com • www.rlcelectronics.com
