Data Sheet
35Amp Bosch Type Pressfit
AVALANCHE Automotive Rectifiers

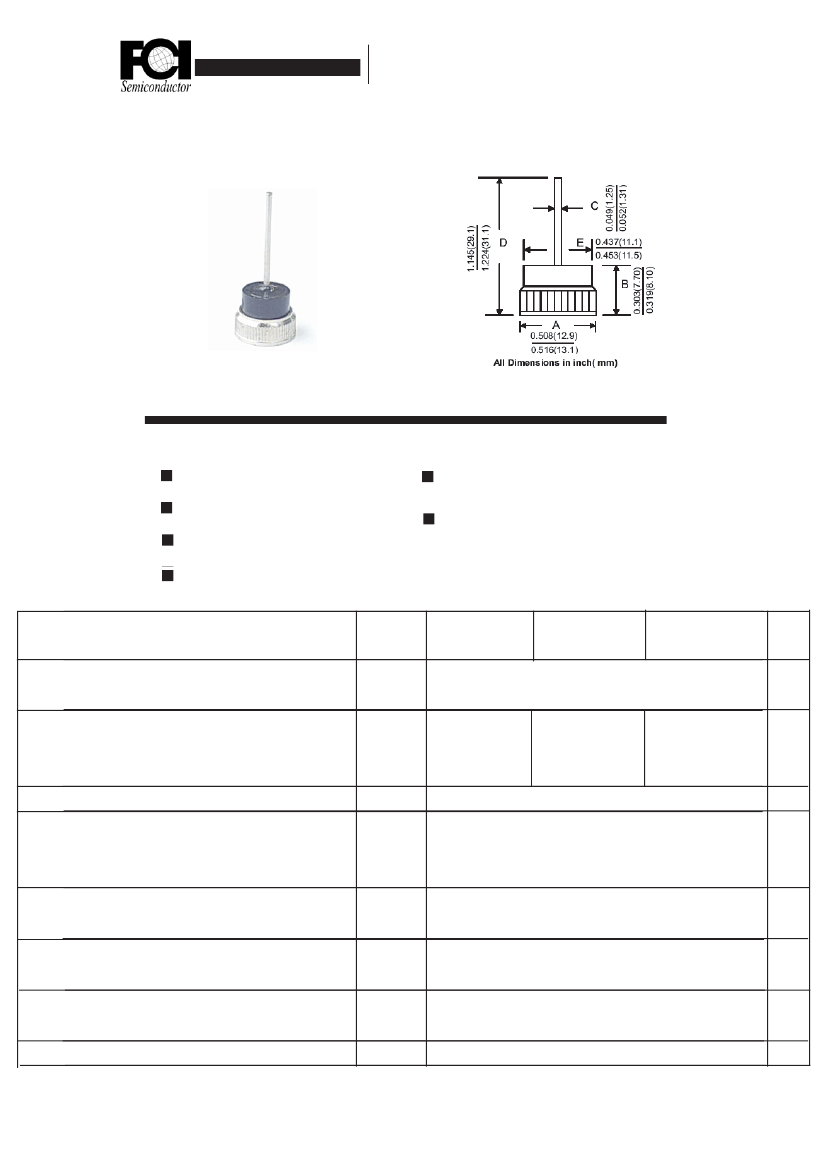

MECHANICAL DIMENSIONS
DESCRIPTION
PBFR3523~43P/N
BOSCH TYPE PRESS-FIT
Features
Low Cost
Super Cool
Long
life Features
High
Current
Capability
NOTE:
1.PBFR3523P
Positive(Forward),(+)
Cathode To Case,
Color Code Red
2.PBFR3523N
Negative(Reverse),(-)
Anode To Case,Color
Code Black
Electrical Characteristics@25C
Average Forward Current, Io at Tc=150C
60HZ, Resistive Or Inductive Load
BREAKDOWN VOLTAGE(1) AVALANCHE
M(IR=100mADC,
Tc=25C)
PULSE TEST:PULAE WIDTH<=30uS, DUTY CYCLE<=2.0%
Symbol
IF
PBFR3523P
PBFR3523N
PBFR3535P
PBFR3535N
35
PBFR3543P
PBFR3543N
Unit
A(DC)
V
BR
VF
IFSM
20~26
24~32
1.18
400
39~47
V(DC)
V
A
Max. Inst Forward Voltage Drop. VF at
80Amp
Peak Forward Surge Current, IFM(surge):
8.3ms. Single Half Sine-Wave
Superimposed On Rated Load (JEDEC method)
Maximum Reverse Current IR At Rated DC
Reverse Voltage=20V. TC= 25C
Maximum Reverse Current IR At Rated DC
Reverse Voltage=16/20/33. TC=100C
Maximum Thermal Resistance, Junction To Case
(single side cooled)
Operating And Storage Temperature Range
IR
IR
-
R
0JA
Tj; Tstrg
0.2
200
1.5
-65 to +175
uA
uA
C/W
C
