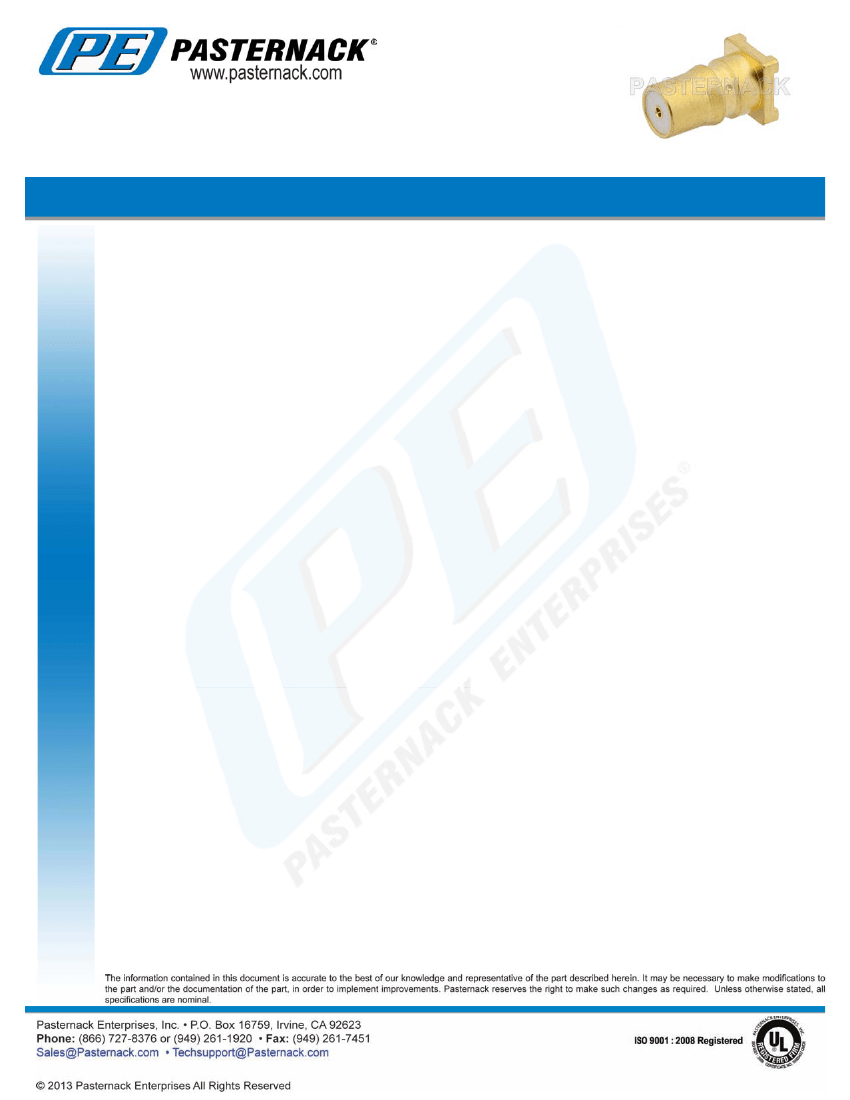

QMA Female Connector Solder Attachment Surface Mount PCB
TECHNICAL DATA SHEET
QMA Female Connector Solder Attachment Surface Mount PCB
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
QMA Female
Surface Mount
Solder
Straight
PE44510
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
DC to 18
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
0.433 [11]
0.25 [6.35]
0.25 [6.35]
0.006 [2.72]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Body Material and Plating
Dielectric Type
QMA Female
Gold
Brass, Gold
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
QMA Female Connector Solder Attachment Surface Mount PCB from Pasternack Enterprises has same day shipment for
domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the
broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
QMA Female Connector Solder Attachment Surface Mount PCB PE44510
URL:
http://www.pasternack.com/qma-female-standard-surface-mount-pcb-connector-pe44510-p.aspx
PE44510 REV 01
1
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE44510

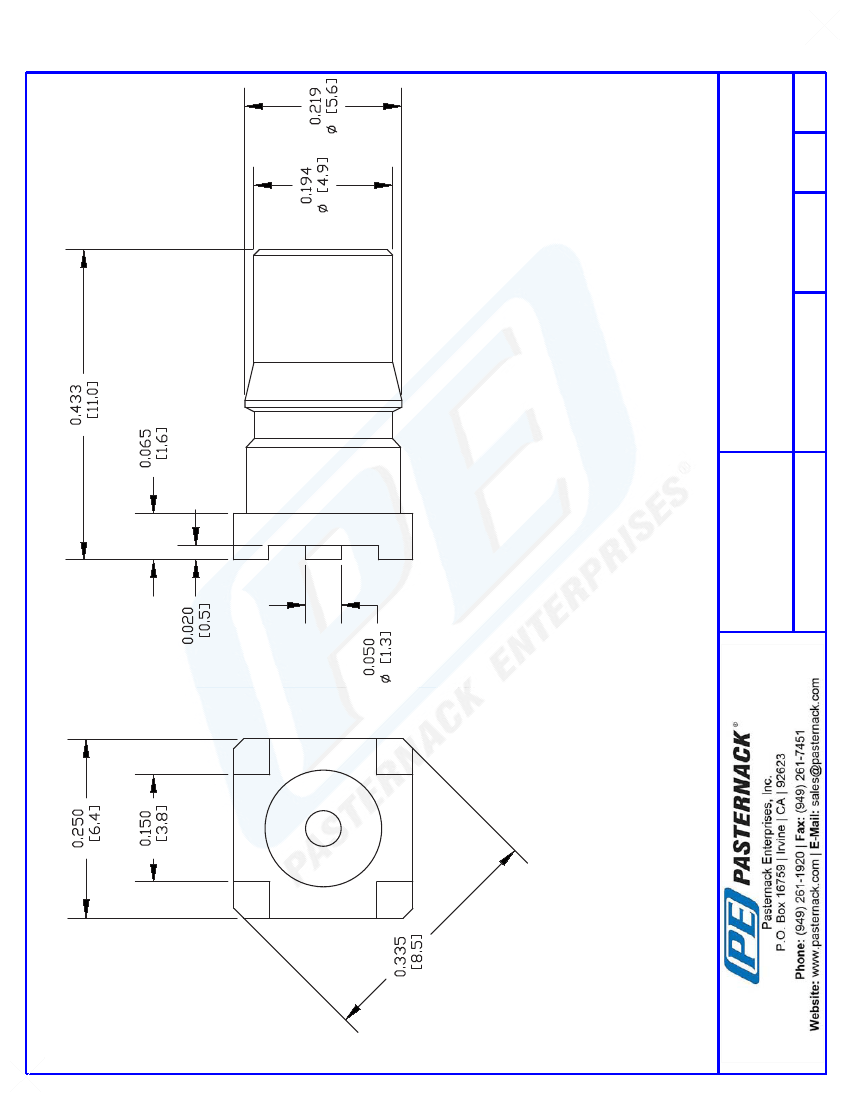

CAD Drawing
QMA Female Connector Solder Attachment Surface Mount PCB
PE44510 REV 01
PE44510
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
022908
SCALE N/A
SIZE A
147
2
