N Male Right Angle Connector Crimp/Solder
Attachment For PE-C400, 0.400 inch
TECHNICAL DATA SHEET
N Male Right Angle Connector Crimp/Solder Attachment For PE-C400, 0.400 inch
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
N Male
MIL-STD-348A
PE-C400,0.400 inch
Crimp/Solder
Right Angle
PE44526
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum Operating Voltage, Volts
Frequency 1
Frequency, GHz
VSWR
DC to 11
50
1,500
DC to 6
1.5:1
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
-65 to +165
1.31 [33.27]
0.83 [21]
1.31 [33.27]
0.11 [49.9]
N Male
Brass, Gold
30µ in. minimum
Brass, Tri-Metal
18
9 [1.02]
Brass, Tri-Metal
Teflon
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Coupling Nut Material and Plating
Hex Size, mm
Torque, in-lbs [Nm]
Body Material and Plating
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
N Male Right Angle Connector Crimp/Solder Attachment For PE-C400, 0.400 inch PE44526
PE44526 REV
1
N Male Right Angle Connector Crimp/Solder
Attachment For PE-C400, 0.400 inch
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE44526
URL:
http://www.pasternack.com/n-male-standard-pe-c400-0.400-connector-pe44526-p.aspx
N Male Right Angle Connector Crimp/Solder Attachment For PE-C400, 0.400 inch from Pasternack Enterprises has same
day shipment for domestic and International orders. We maintain 99% availability of the industry’s broadest selection of RF,
microwave and fiber optic products.
PE44526 REV
2
PE44526

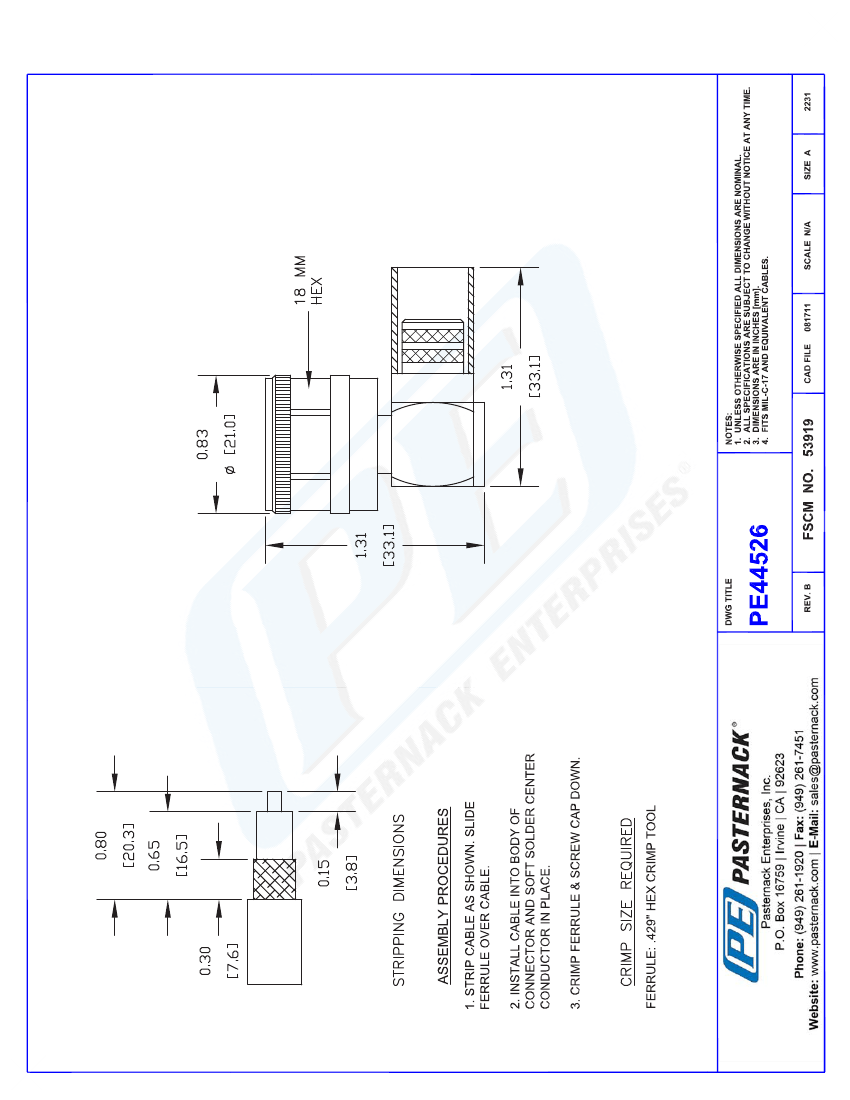

CAD Drawing
N Male Right Angle Connector Crimp/Solder Attachment For PE-C400, 0.400 inch
© 2012 Pasternack Enterprises All Rights Reserved
PE44526 REV
3
