N Male Right Angle Connector Crimp/Solder
Attachment For PE-C600, 0.600 inch
TECHNICAL DATA SHEET
N Male Right Angle Connector Crimp/Solder Attachment For PE-C600, 0.600 inch
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
N Male
PE-C600,0.600 inch
Crimp/Solder
Right Angle
PE44527
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
1.51 [38.35]
0.83 [21]
1.4 [35.56]
0.11 [49.9]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Coupling Nut Material and Plating
Body Material and Plating
Dielectric Type
N Male
Brass, Gold
Brass, Nexcote
Brass, Nexcote
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
N Male Right Angle Connector Crimp/Solder Attachment For PE-C600, 0.600 inch from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
N Male Right Angle Connector Crimp/Solder Attachment For PE-C600, 0.600 inch PE44527
URL:
http://www.pasternack.com/n-male-standard-pe-c600-0.600-connector-pe44527-p.aspx
PE44527 REV
1
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE44527

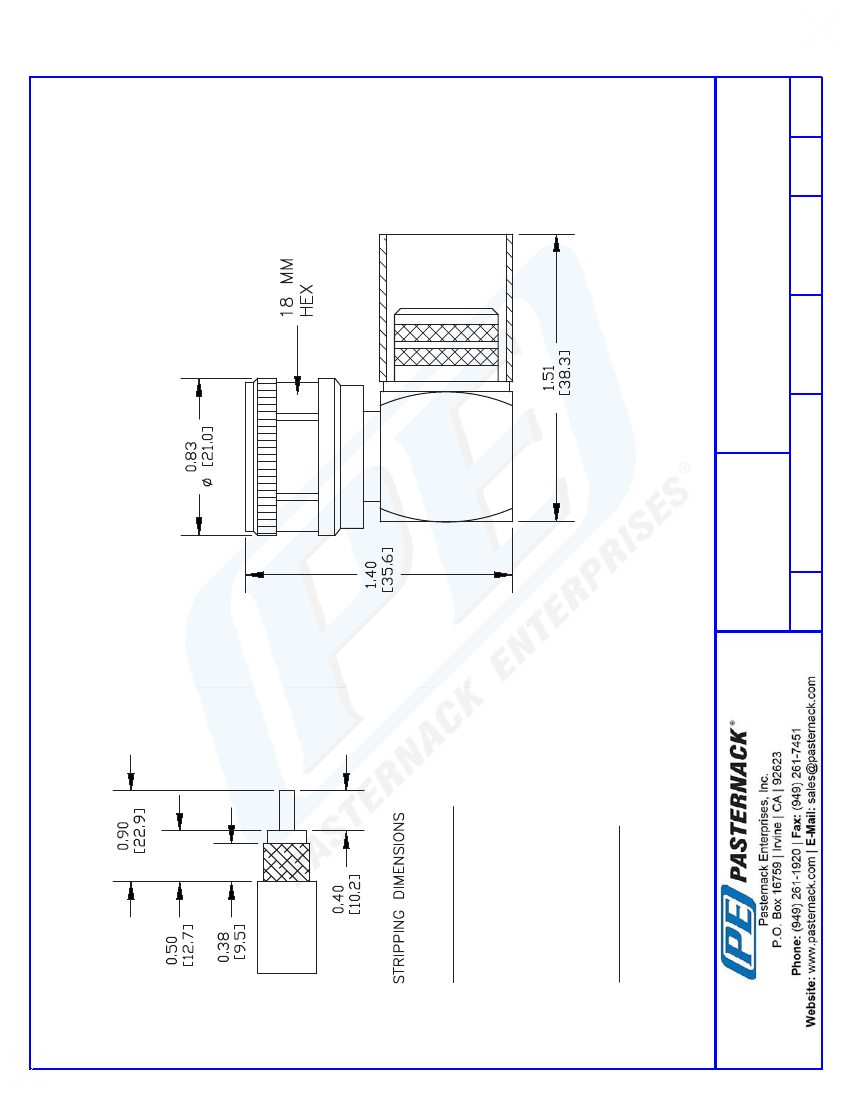

CAD Drawing
N Male Right Angle Connector Crimp/Solder Attachment For PE-C600, 0.600 inch
PE44527 REV
ASSEMBLY PROCEDURES
1. STRIP CABLE AS SHOWN. SLIDE FERRULE OVER
CABLE.
2. INSTALL CABLE INTO BODY OF CONNECTOR AND
SOFT SOLDER CENTER CONDUCTOR IN PLACE.
3. CRIMP FERRULE & PUSH.
CRIMP SIZE REQUIRED
FERRULE: .610" HEX CRIMP TOOL
PE44527
REV. -
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
FSCM NO. 53919
CAD FILE
XXXXXX
SCALE N/A
SIZE A
127
2
