7/16 DIN Male Connector Clamp/Solder
Attachment For 7/8 inch Annular
TECHNICAL DATA SHEET
7/16 DIN Male Connector Clamp/Solder Attachment For 7/8 inch Annular
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
7/16 DIN Male
7/8 inch Annular
Clamp/Solder
Straight
PE44568
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
2.554 [64.87]
1.36 [34.54]
0.485 [219.99]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Coupling Nut Material and Plating
Hex Size, in.
Torque, ft-lbs [Nm]
Body Material and Plating
Dielectric Type
7/16 DIN Male
Silver
Brass, Tri-Metal
1 1/4
18.417 [24.97]
Brass, Tri-Metal
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
7/16 DIN Male Connector Clamp/Solder Attachment For 7/8 inch Annular from Pasternack Enterprises has same day shipment
for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of
the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
7/16 DIN Male Connector Clamp/Solder Attachment For 7/8 inch Annular PE44568
URL:
http://www.pasternack.com/7-16-male-standard-7-8-inch-annular-connector-pe44568-p.aspx
PE44568 REV 01
1
ASSEMBLY PROCEDURES
© 2013 Pasternack Enterprises All Rights Reserved

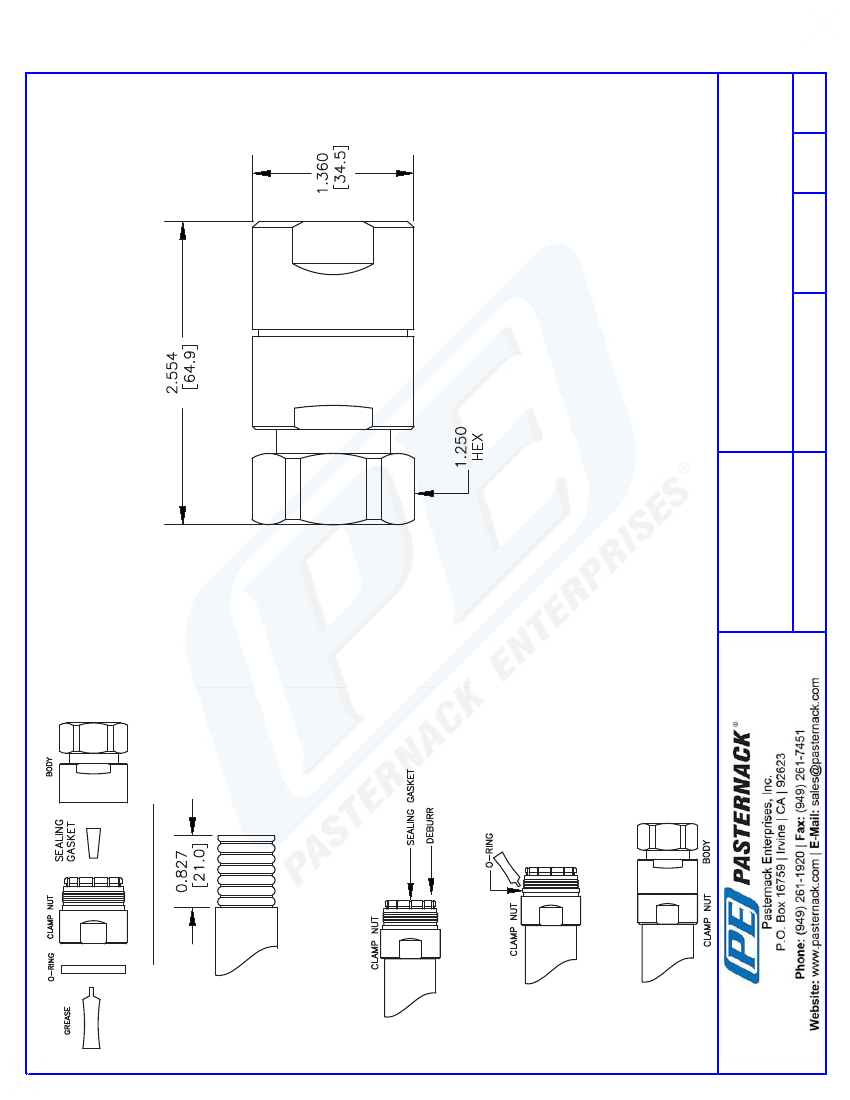

DWG TITLE
1. STRIP CABLE AS SHOWN.
2. INSTALL CLAMP NUT ONTO CABLE. FLAIR OUT INNER & OUTER
CONDUCTOR. DEBURR INNER & OUTER CONDUCTOR. SLIDE
GREASED SEALING GASKET INTO CENTER CONDUCTOR.
PE44568
CAD Drawing
7/16 DIN Male Connector Clamp/Solder Attachment For 7/8 inch Annular
PE44568 REV 01
3. SLIDE O-RING OVER THREAD AND SEAT INTO PLACE. GREASE
O-RING.
4. HOLD CLAMP NUT STEADY & SCREW INTO BODY. INJECT GREASE
INTO HOLE OF CLAMP NUT. THEN TIGHTEN.
PE44568
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
090808-A
SCALE N/A
SIZE A
XXXX
2
