75 Ohm N Female Connector Clamp/Solder
Attachment For RG59, RG62, .480 inch D Hole
TECHNICAL DATA SHEET
75 Ohm N Female Connector Clamp/Solder Attachment For RG59, RG62, .480 inch D Hole
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
N Female
RG59,RG62
Clamp/Solder
Straight
PE4516
Electrical Specifications
Impedance, Ohms
75
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
1.4 [35.56]
0.625 [16]
0.068 [30.84]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Body Material and Plating
Dielectric Type
N Female
Silver
Brass, Nickel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
75 Ohm N Female Connector Clamp/Solder Attachment For RG59, RG62, .480 inch D Hole from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
75 Ohm N Female Connector Clamp/Solder Attachment For RG59, RG62, .480 inch D Hole
PE4516
URL:
http://www.pasternack.com/n-female-standard-rg59-rg62-connector-pe4516-p.aspx
PE4516 REV
1
ASSEMBLY PROCEDURES
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
1. SLIDE CLAMP NUT (1), WASHER (2) & GASKET (3)
OVER CABLE. STRIP CABLE AS SHOWN. DO
NOT NICK BRAID WHILE CUTTING JACKET.
TAPER END OF BRAID TO PERMIT ASSEMBLY
OF BRAID CLAMP (4). SLIDE BRAID CLAMP (4)
OVER BRAID & SEAT AGAINST CABLE.
PE4516

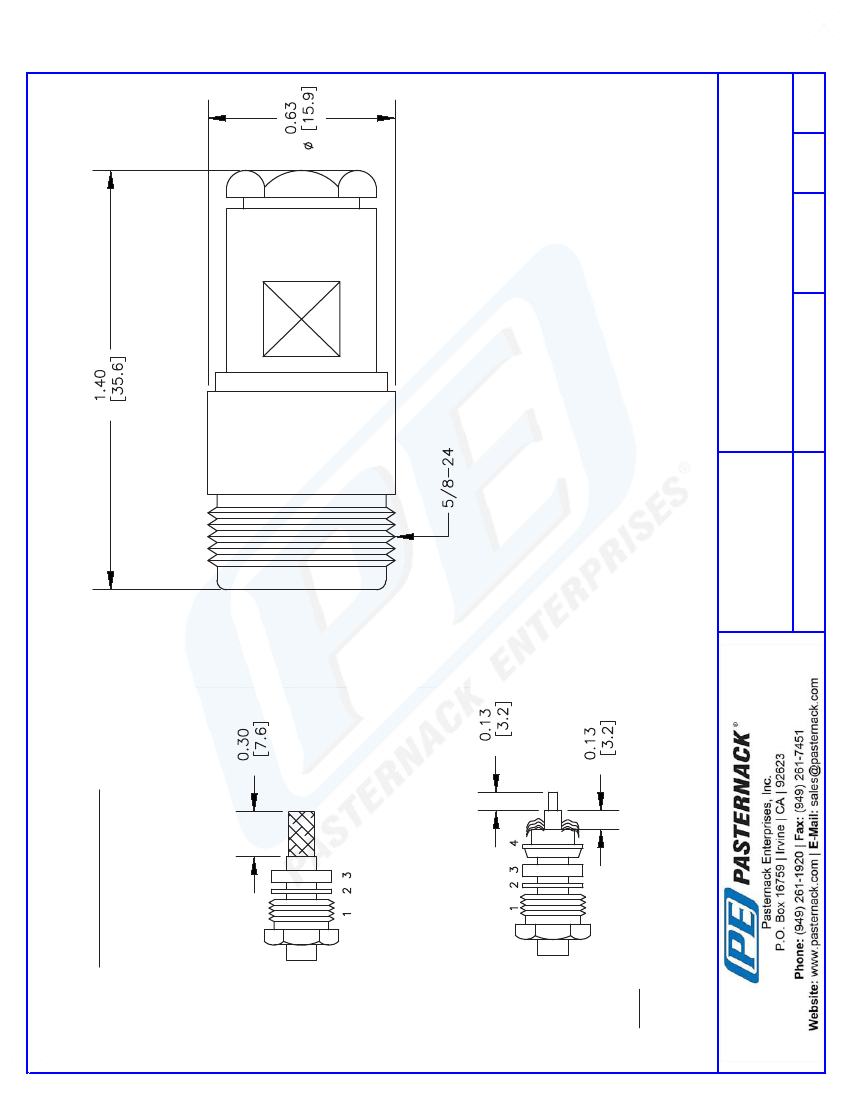

CAD Drawing
75 Ohm N Female Connector Clamp/Solder Attachment
For RG59, RG62, .480 inch D Hole
PE4516 REV
2. FORM BRAID OVER CLAMP NUT (4). TRIM BRAID
BACK TO SHOULDER. CUT DIELECTRIC &
CENTER CONDUCTOR TO DIMENSION SHOWN.
DO NOT NICK CENTER CONDUCTOR. SOLDER
CONTACT TO CENTER CONDUCTOR. REMOVE
EXCESS SOLDER. DO NOT OVER HEAT
DIELECTRIC. INSERT CABLE ASSEMBLY INTO
BODY & TIGHTEN.
NOTE:
RG62 USES PTFE INSERT.
INSERT PTFE BEFORE CONTACT.
TAPER END FIRST.
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
PE4516
FSCM NO. 53919
CAD FILE
052102
SCALE N/A
SIZE A
127
2
