75 Ohm BNC Male Connector Crimp/Solder Attachment For RG6
TECHNICAL DATA SHEET
75 Ohm BNC Male Connector Crimp/Solder Attachment For RG6
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
BNC Male
RG6
Crimp/Solder
Straight
PE4598
Electrical Specifications
Frequency Range, MHz
Impedance, Ohms
Maximum VSWR
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
DC to 1,000
75
1.3:1
500
1,500
Mechanical Specifications
Temperature
Operating Range, deg C

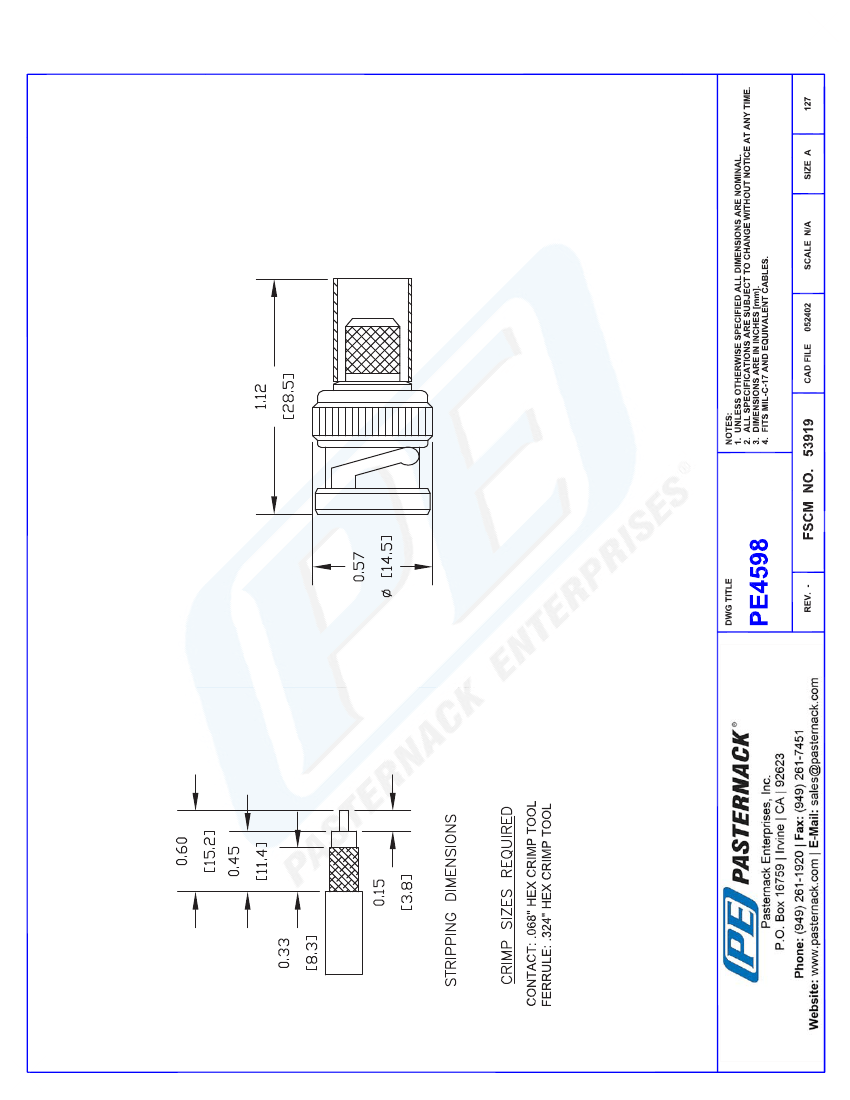

Size
Length, in [mm]
Width/Dia., in [mm]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
-65 to +165
1.122 [28.5]
0.571 [15]
0.027 [12.25]
BNC Male
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/bnc-male-standard-rg6-connector-pe4598-p.aspx
75 Ohm BNC Male Connector Crimp/Solder Attachment For RG6 from Pasternack Enterprises has same day shipment for
domestic and International orders. We maintain 99% availability of the industry’s broadest selection of RF, microwave and
fiber optic products.
PE4598 REV
1
