PFFR25XX: Description25.0 AMPS AUTOMOTIVE; File Size176KB，1 Pages; ManufacturerFCI connector

Download Datasheet View All

PFFR25XX Overview

25.0 AMPS AUTOMOTIVE

Preview

Download Datasheet

View All

25.0 AMPS

AUTOMOTIVE

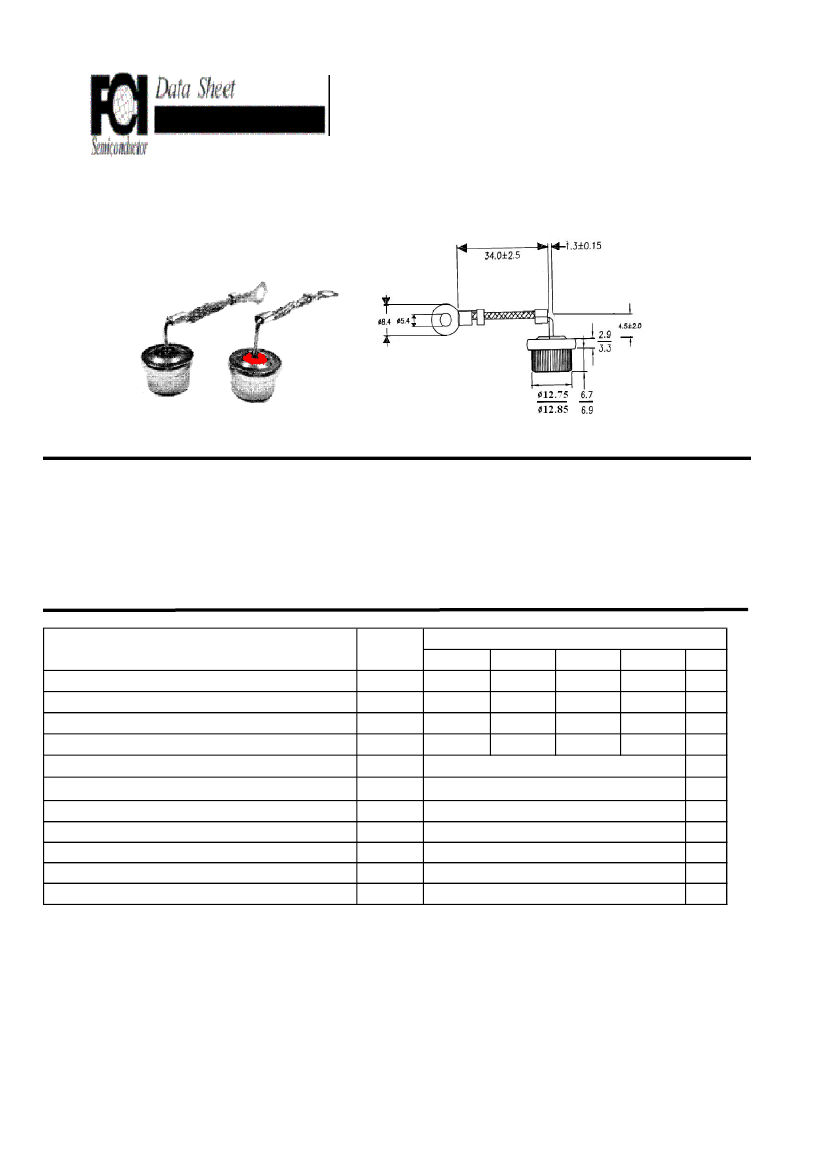

1/2" FLAG LEAD PRESSFIT DIODE

Description

Mechanical Dimensions

PFFR2501~2506-001

FLAG LEAD PRESSFIT

DIMENSIONS IN MILLIMETER

Features

▓

Outline Free Pb

▓

High Reliability

▓

Long Life

▓

Low Cost

▓

Super Cool

▓

High Surge Current Capability

Max Ratings at Ta=25C Unless Otherwise Specified

Electrical Characteristic

Peak Repetitive Reverse Voltage

working Peak Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Average Forward Continuous Current Tc=150C 60Hz

Mechanical Data

▓

Case: Nickel Plated Copper Solderable

▓

Terminals: Plated Sn Solderable per MIL-STD-202E method 208C

▓

Flammability Classificarions 94V- 0

▓

PFFR25xxP---Positive(+): Cathode to Case Color Code RED

▓

PFFR25xxN---Negative(-): Anode to Case Color Code Black

▓

: Weight: 13.6 Gram

PFFR2501~2506-001

2501

100

2502

200

140

400

1.18

500

1.2

-55~175

2504

400

280

2506

600

420

Unit

C/W

Symbol

Vrrm

Vrwm

Vdc

Vr(rms)

IF(AV)

IFSM

Rthjc

Tj/Ts

Peak Forward Surge Current 8.3 ms single half wave

Max Inst. Forward Voltage IF=80A

Max. Reverse Leakage DC Current @ 25C

Max. Reverse Leakage DC Current @ 100C

Type Thermal Resistance Junction to Case

Operating & Storage Temp. Range

NOTE: PFFR2501~06-001 which special for rebuilding using that copper case OD 12.75~12.85mm
