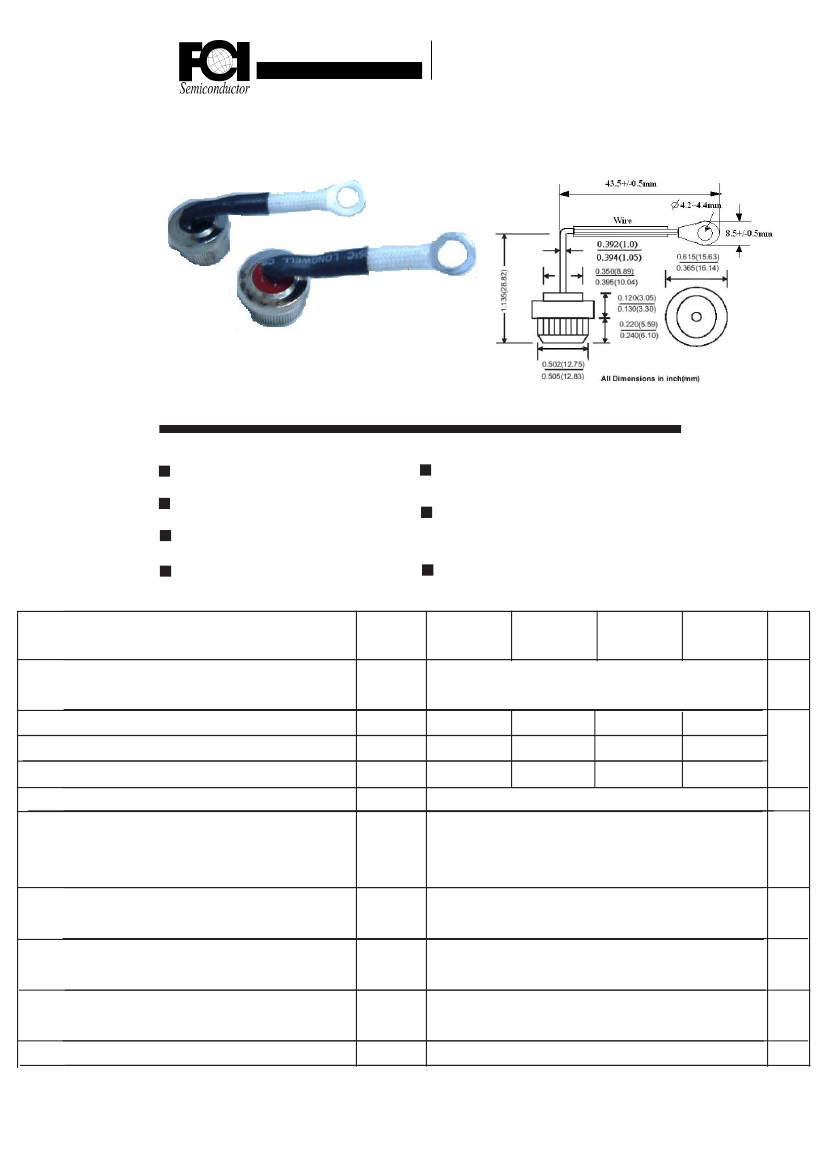

Data Sheet
DESCRIPTION
35Amp Insulate Flag Pressfit
Automotive Rectifiers
MECHANICAL DIMENSIONS
PIFR3501~3506 N/ P
INSULATE
PRESS-FIT
Features
Low Cost
Super Cool
Long
life Features
High
Current
Capability
NOTE:
1. PILFR35XXP Positive (Forward) (+)
Cathode To Case,Color
Code Red
2. PILFR35XXN Negative (Reverse) (-)
Anode To Case,
Color Code Black
3.Lead have 1mm, 1.3mm And 2.5mm
Electrical Characteristics@25C
Average Forward Current, Io at Tc=150C
60HZ, Resistive Or Inductive Load
Peak Reverse Voltage, Repetitive:VRRM
DC Reverse Voltage, VR
Maximum RMS Voltage
Max. Inst Forward Voltage Drop. VF at
100Amp
Peak Forward Surge Current, IFM(surge):
8.3ms. Single Half Sine-Wave
Superimposed On Rated Load (JEDEC method)
Maximum Reverse Current IR At Rated DC
Reverse Voltage. TC= 25C
Maximum Reverse Current IR At Rated DC
Reverse Voltage. TC=100C
Maximum Thermal Resistance, Junction To Case
(single side cooled)
Operating And Storage Temperature Range
Symbol
IF
VRRM
V(DC)
VRMS
VF
IFSM
PIFR3501P PIFR3502P PIFR3504P PIFR3506P
PIFR3501N PIFR3502N PIFR3504N PIFR3506N
Unit
A(DC)
35
100
100
70
200
200
140
1.2
400
400
280
600
600
420
V(DC)
V
A
400
IR
IR
-
R
0JA
Tj; Tstrg
10
500
0.8
-65 to +175
uA
uA
C/W
C
