M20-7891106

Description
Board Connector, 11 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal
CategoryThe connector    The connector
File Size545KB,1 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Download Datasheet Parametric View All

M20-7891106 Overview

Board Connector, 11 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal

M20-7891106 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerHarwin
Reach Compliance Codecompliant
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial numberM20-78
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts11
M20 Connectors
8.10
7.87
0.70
DOUBLE ROW

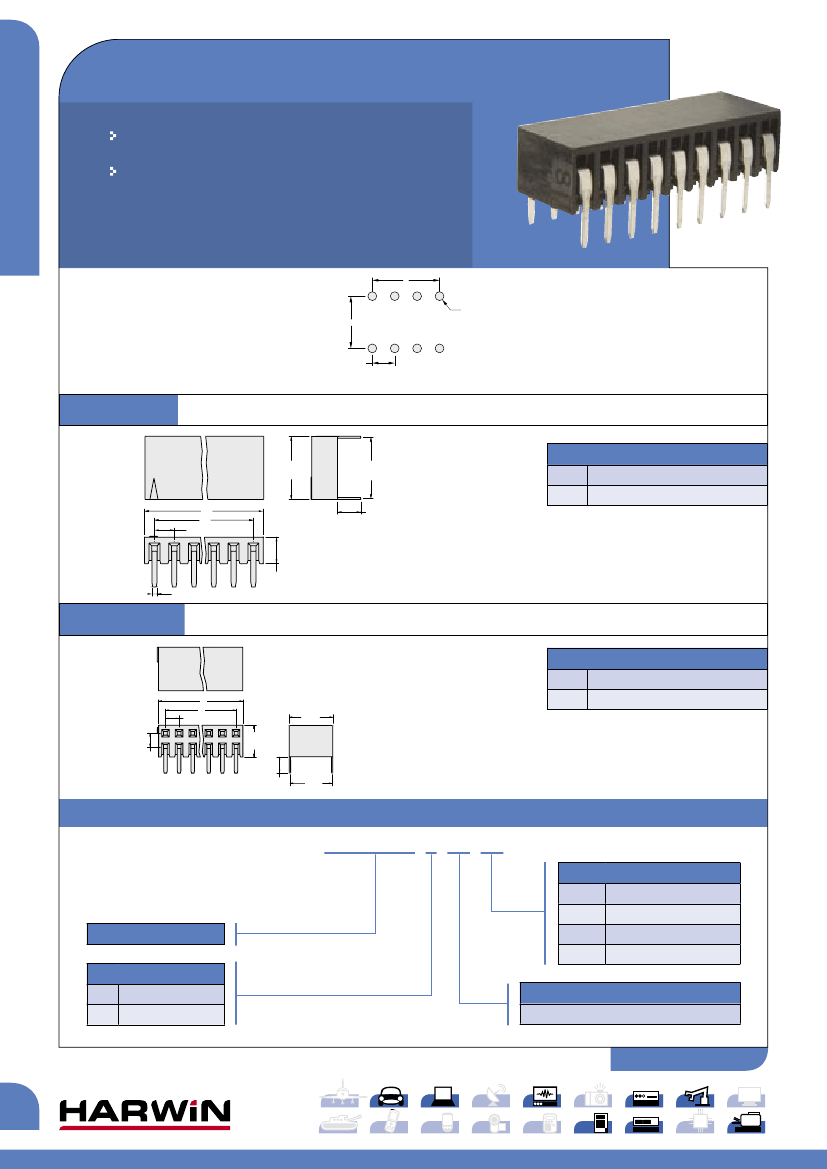

HM1085 M20-789XXXX
3.40
2.54
5.90
3.00
2.54mm (.100") PITCH
8
9
Horizontal PC Tail Female Connectors
Suitable for use with male connectors shown on
pages 52 to 57.
Two point solder fixing for connector rigidity.
B
ø
1.00
7.87
2.54
Recommended PC Board Pattern
SINGLE ROW
CALCULATION
A
B
'A'
'B'
2.54
3.00
(2.54 x No. of ways per row) + 0.2
2.54 x (No. of ways per row – 1)
CALCULATION
A
'A'
'B'
2.54
2.54 x No. of ways per row
2.54 x (No. of ways per row – 1)
B
8.10
7.87
HOW TO ORDER
M20 – 78 X XX XX
FINISH
06
22
Tin/Lead
Gold + Tin/Lead
Gold + Tin
Tin
SERIES CODE
NO. OF ROWS
Double Row
Single Row
42
46
NO. OF WAYS PER ROW
02 to 40
www.harwin.com
44
Ask about the copper cladding of 4-layer board
