F8L-4GLF-30.000-EE datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> F8L-4GLF-30.000-EE

F8L-4GLF-30.000-EE: DescriptionPECL 10KH Output Clock Oscillator, 30MHz Nom, ROHS COMPLIANT, DIP-14/4; CategoryPassive components oscillator; File Size150KB，1 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

F8L-4GLF-30.000-EE Overview

PECL 10KH Output Clock Oscillator, 30MHz Nom, ROHS COMPLIANT, DIP-14/4

F8L-4GLF-30.000-EE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
package instruction	ROHS COMPLIANT, DIP-14/4
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	COMPLEMENTARY OUTPUT
maximum descent time	2 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	30 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	PECL 10KH
Output load	50 OHM
physical size	20.8mm x 13.2mm x 7.24mm
longest rise time	2 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

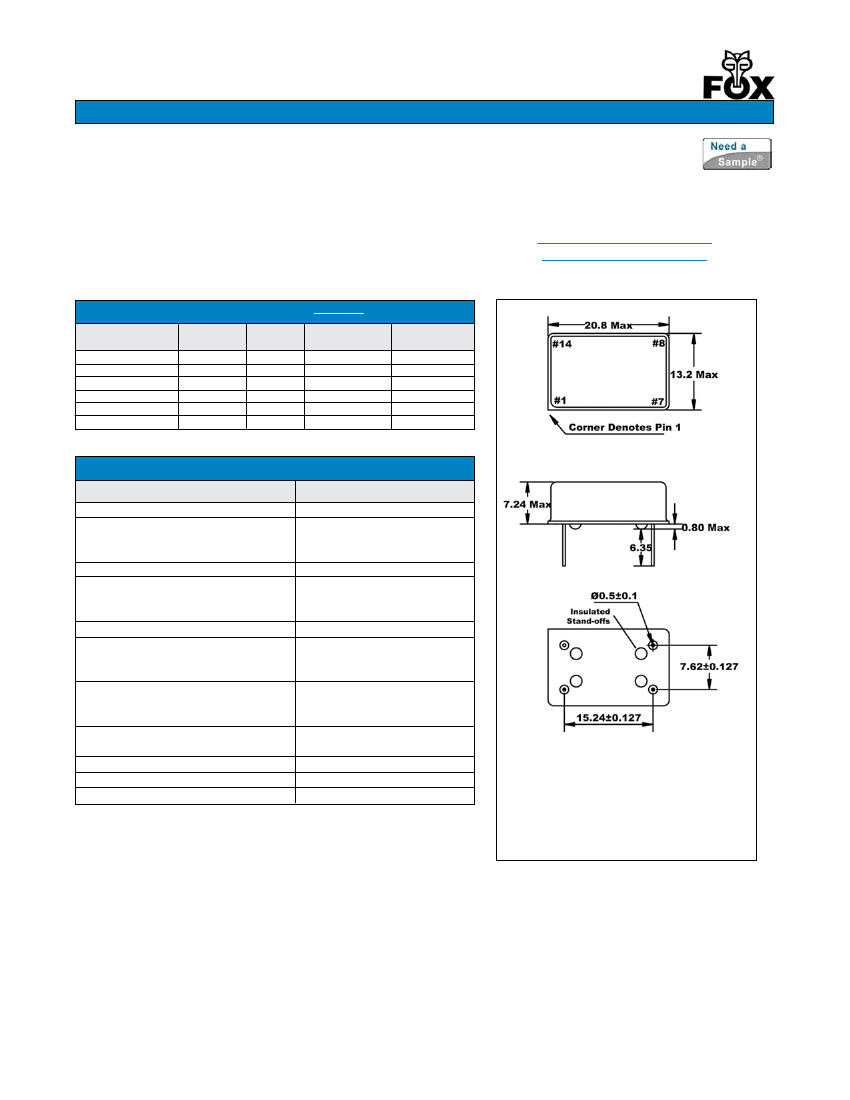

14-Pin Dip, 5.0V, PECL Oscillator

Model: F5l-4GlF Series

RoHS compliant / Pb Free

Rev. 9/18/2006

http://www.foxonline.com/need_a_sample.htm

FEATURES

• 5.0V Operation

• PECL Output

• 10 KH Logic Output

• Complementary Output

Discontinued

OPTiOnS

•

Single-Ended Output

Pullup/Down Internal Resistors

Various Pin Connections

-5.2V ECL Version

learn more about:

Part Marking Identification

Mechanical Specification

internet required

• PART nUMbER SElEcTiOn

Learn More - Internet Required

Part Number

161LF-Freq-xxxxx

162LF-Freq-xxxxx

370LF-Freq-xxxxx

189LF-Freq-xxxxx

207LF-Freq-xxxxx

451LF-Freq-xxxxx

Model

Number

F5L-4GLF

F5L-4GRLF

F6L-4GLF

F6L-4GRLF

F7L-4GLF

F8L-4GLF

Frequency

Operating

Stability

Temperature (ºC)

±100PPM

-10 ~ +70

±100PPM

-40 ~ +85

±50PPM

-10 ~ +70

±50PPM

-40 ~ +85

±25PPM

-10 ~ +70

±20PPM

-10 ~ +70

Frequency

Range (MHz)

30.000 ~ 200.000

• ElEcTRicAl cHARAcTERiSTicS

PARAMETERS

Frequency Range (F

)

Temperature Range

Operating

opr

)

Storage

stg

)

Supply Voltage

)

Input Current

)

30.000 ~ 170.000 MHz

170.000+ ~ 200.000 MHz

Output Symmetry (50% Vp-p Level)

Rise Time (20% ~ 80%Vp-p) (T

)

30.000 ~ 170.000 MHz

170.000+ ~ 200.000 MHz

Fall Time (80% ~ 20%Vp-p) (T

)

30.000 ~ 170.000 MHz

170.000+ ~ 200.000 MHz

Output Voltage

)

Output Load

Overlap Time

(50% Vp-p (Complementary Only))

Start-up Time

)

MAX

(unless otherwise noted)

30.000 ~ 200.000 MHz

-10ºC ~ +70ºC

-55ºC ~ +125ºC

5.0V ± 10%

50mA

60mA

40% ~ 60%

2.0nS

1.5nS

2.0nS

1.5nS

+3.05V ~ +3.42V

+4.00V ~ +4.45V

Ω

0.5nS

10mS

Pin Connection

#1 Output 1

#7 GND

#8 Output 2

#14 +5.0V

Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, aging,

shock, and vibration.

All specifications subject to change without notice.

All dimensions are in millimeters.

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554

http://www.foxonline.com

EMEA

Tel/Fax: +44 .1767.312632 |

Asia

Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282 |

Taiwan

Tel: +886.2.22073427 Fax +886.2.22073486

Japan

Tel: +81.3.3374/2079 Fax: +81.3.3374.5221
