MSC23441-80DS10 datasheet, PDF

Datasheet> All Categories > storage> storage> MSC23441-80DS10

MSC23441-80DS10: DescriptionFast Page DRAM Module, 4MX40, 80ns, CMOS, SIMM-72; Categorystorage storage; File Size242KB，8 Pages; ManufacturerOKI; Websitehttp://www.oki.com

Download Datasheet Parametric Compare View All

MSC23441-80DS10 Overview

Fast Page DRAM Module, 4MX40, 80ns, CMOS, SIMM-72

MSC23441-80DS10 Parametric

Parameter Name	Attribute value
Maker	OKI
Parts packaging code	SIMM
package instruction	,
Contacts	72
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	80 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE; PRESENCE DETECT PINS
JESD-30 code	R-XSMA-N72
memory density	167772160 bit
Memory IC Type	FAST PAGE DRAM MODULE
memory width	40
Number of functions	1
Number of ports	1
Number of terminals	72
word count	4194304 words
character code	4000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4MX40
Output characteristics	3-STATE
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
refresh cycle	4096
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	SINGLE

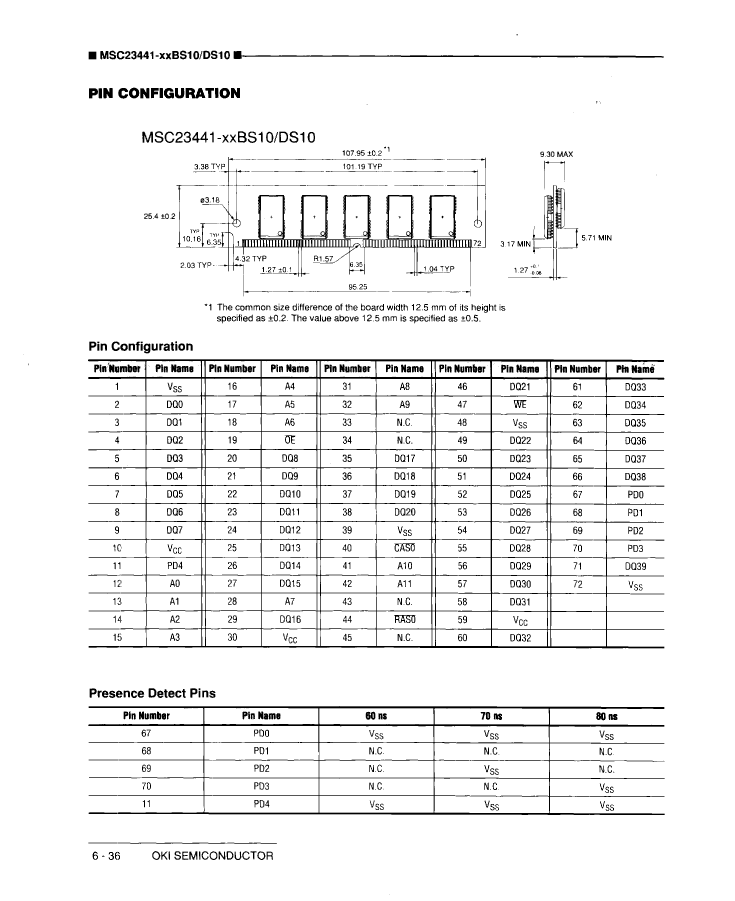

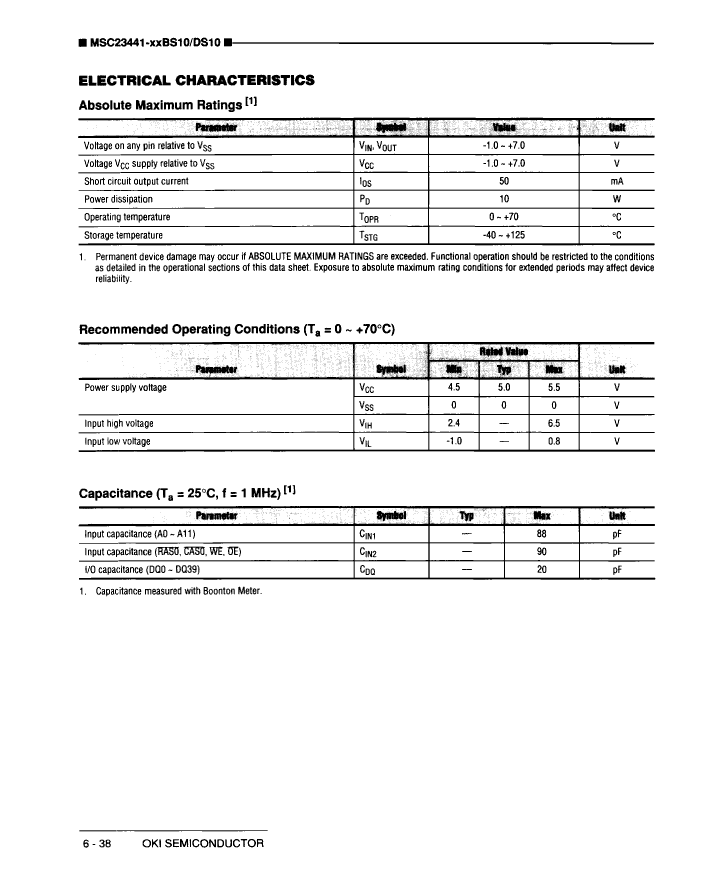

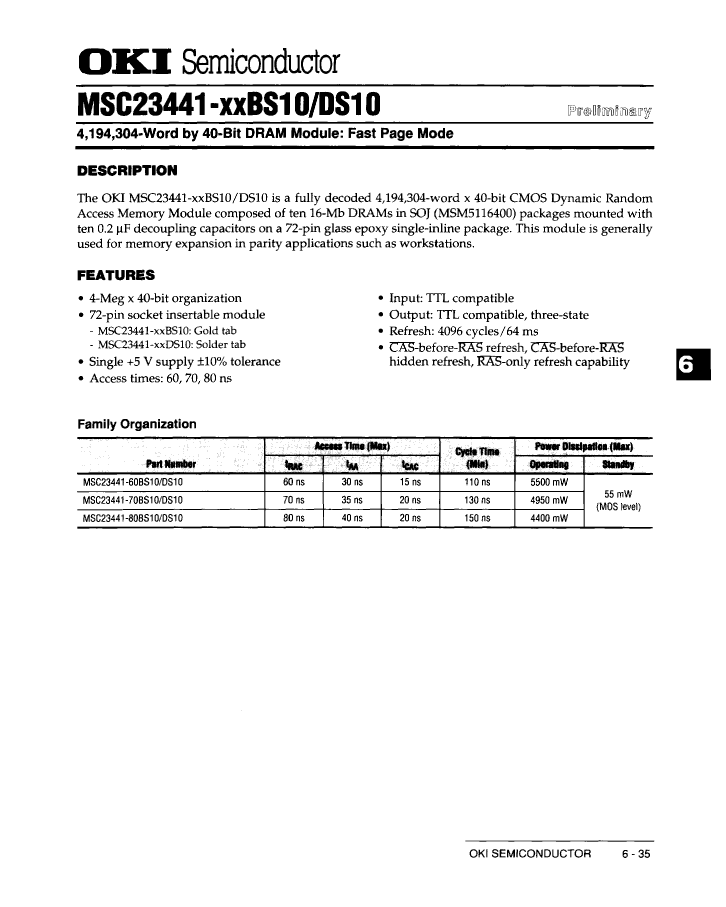

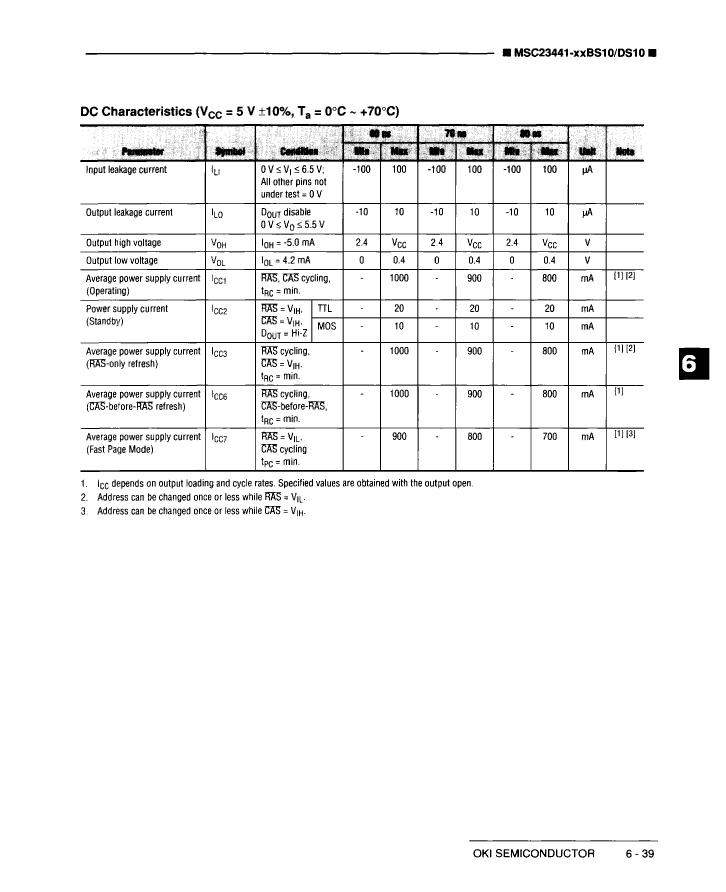

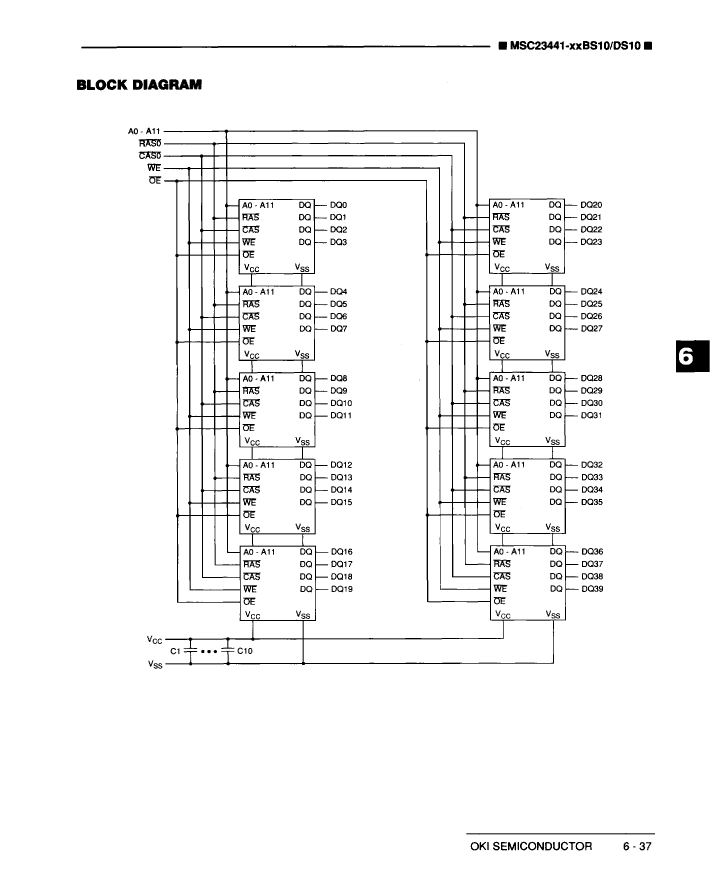

Preview

Download Datasheet

View All

MSC23441-80DS10 Related Products

	MSC23441-80DS10	MSC23441-70BS10	MSC23441-60DS10	MSC23441-70DS10	MSC23441-60BS10	MSC23441-80BS10
Description	Fast Page DRAM Module, 4MX40, 80ns, CMOS, SIMM-72	Fast Page DRAM Module, 4MX40, 70ns, CMOS, SIMM-72	Fast Page DRAM Module, 4MX40, 60ns, CMOS, SIMM-72	Fast Page DRAM Module, 4MX40, 70ns, CMOS, SIMM-72	Fast Page DRAM Module, 4MX40, 60ns, CMOS, SIMM-72	Fast Page DRAM Module, 4MX40, 80ns, CMOS, SIMM-72
Parts packaging code	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM
Contacts	72	72	72	72	72	72
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	80 ns	70 ns	60 ns	70 ns	60 ns	80 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE; PRESENCE DETECT PINS	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE; PRESENCE DETECT PINS	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE; PRESENCE DETECT PINS	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE; PRESENCE DETECT PINS	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE; PRESENCE DETECT PINS	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE; PRESENCE DETECT PINS
JESD-30 code	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72
memory density	167772160 bit	167772160 bit	167772160 bit	167772160 bit	167772160 bi	167772160 bi
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	40	40	40	40	40	40
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	72	72	72	72	72	72
word count	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words
character code	4000000	4000000	4000000	4000000	4000000	4000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	4MX40	4MX40	4MX40	4MX40	4MX40	4MX40
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	4096	4096	4096	4096	4096	4096
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maker	OKI	-	OKI	OKI	OKI	OKI
