X20C16S-35: DescriptionNon-Volatile SRAM, 2KX8, 35ns, CMOS, PDSO28, PLASTIC, SOIC-28; Categorystorage storage; File Size1003KB，25 Pages; ManufacturerForce Technologies Ltd.

Download Datasheet Parametric View All

X20C16S-35 Overview

Non-Volatile SRAM, 2KX8, 35ns, CMOS, PDSO28, PLASTIC, SOIC-28

X20C16S-35 Parametric

Parameter Name	Attribute value
Maker	Force Technologies Ltd.
Parts packaging code	SOIC
package instruction	SOP,
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	35 ns
JESD-30 code	R-PDSO-G28
length	17.91 mm
memory density	16384 bit
Memory IC Type	NON-VOLATILE SRAM
memory width	8
Number of functions	1
Number of terminals	28
word count	2048 words
character code	2000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2KX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	2.64 mm
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.49 mm

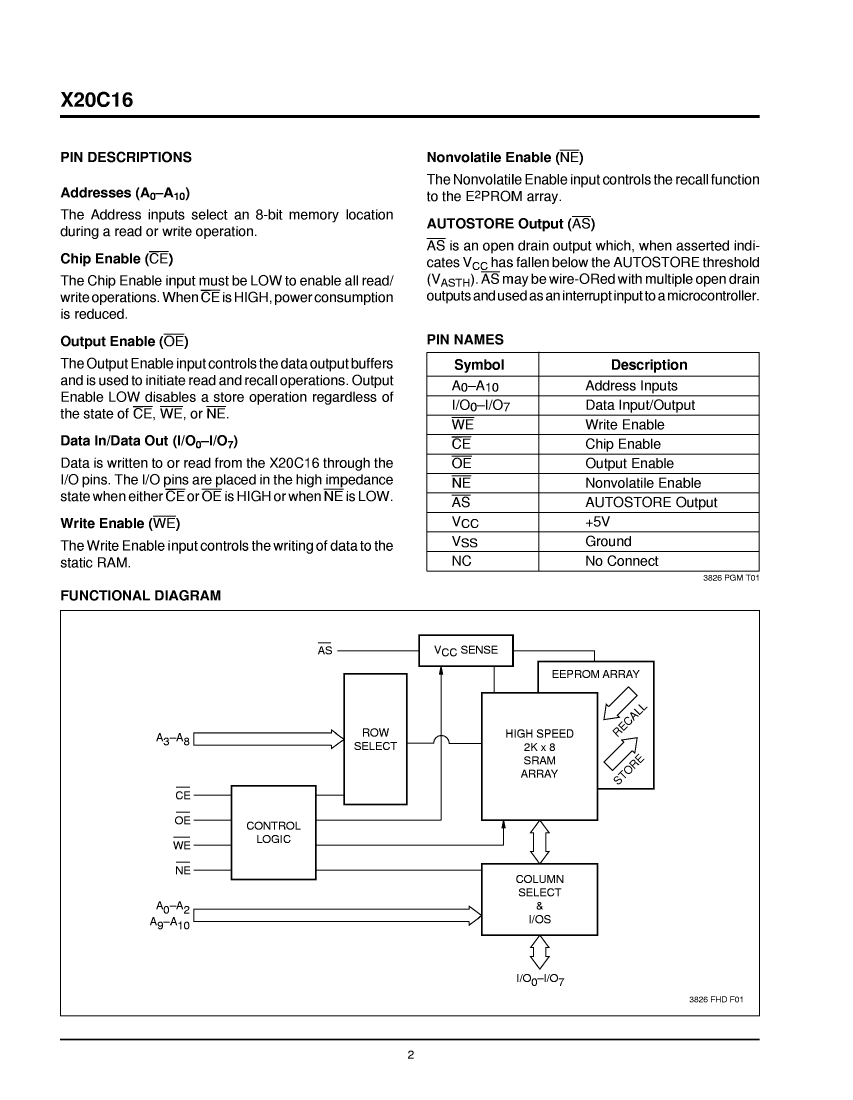

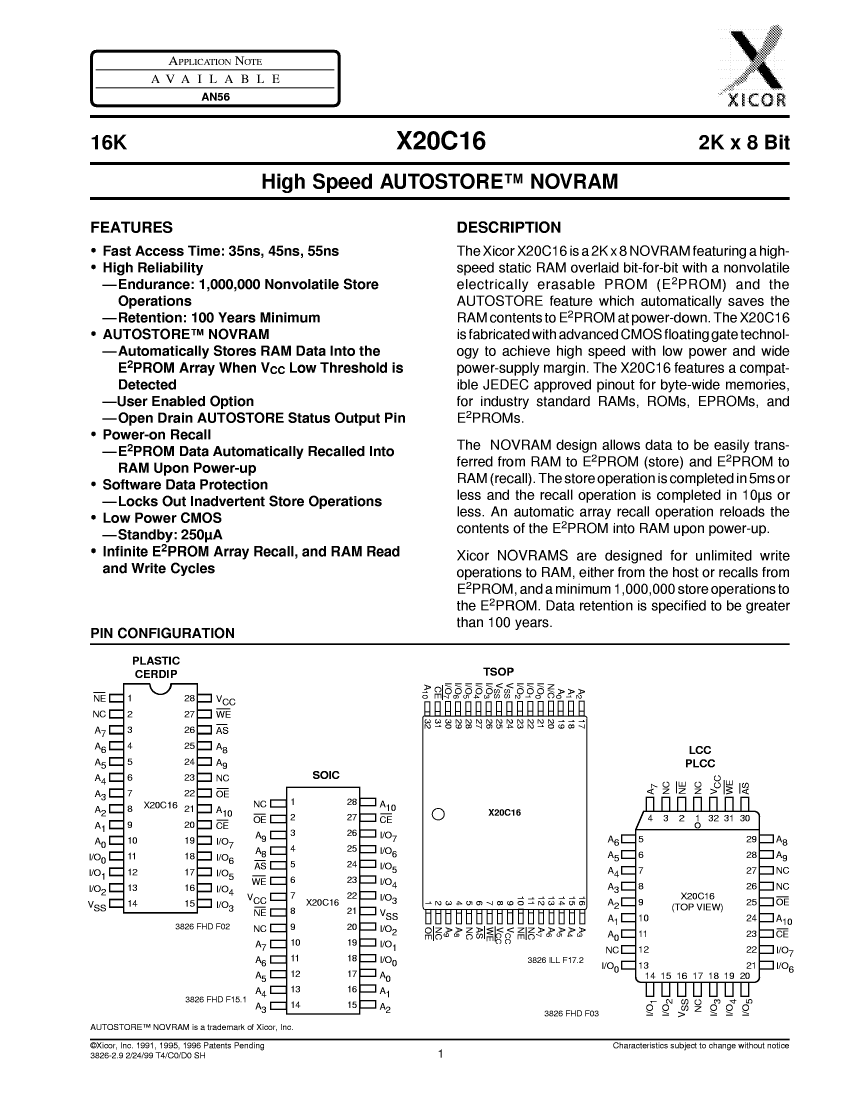

Preview

Download Datasheet

View All

SCD#QM5299

Source Control Drawing

Upscreening/Manufacturing Specification P/N FT20C16-45EMB-X

Title Page ................................................................................

List of Effective Pages ..............................................................

Change List ..............................................................................

Definitions .................................................................................

Acronyms and Abbreviations .....................................................

3.1

3.2

3.3

4.1

5.1

6.1

8.1

8.2

8.3

8.4

Contents.

Introduction/Purpose .................................................................

Reference Documents ...............................................................

Source of Parts.........................................................................

Original Part Manufacturer .........................................................

Screening Company...................................................................

UK Supplier...............................................................................

Manufacturing ...........................................................................

Screening .................................................................................

Certificate of Conformity ............................................................

FT Certificate of Conformity .......................................................

Package Description..................................................................

Marking ....................................................................................

Traceability ...............................................................................

Component selection .................................................................

General ....................................................................................

Nuclear Hardness ......................................................................

Baseline Component .................................................................

Obsolescence notice .................................................................

Date-200603

Date-

iss-1

iss-

Rev-

Changes-Orig

Changes-

Name-MLSalmon

Name-

Force Technologies Ltd

2003
