Board to Board
Interconnections
5 Energy Way, P.O. Box 1019, West Warwick, RI 02893 USA Tel. 800-424-9850/401-823-5200 • Fax 401-823-8723 • Email info@advintcorp.com • Internet http://www.advintcorp.com

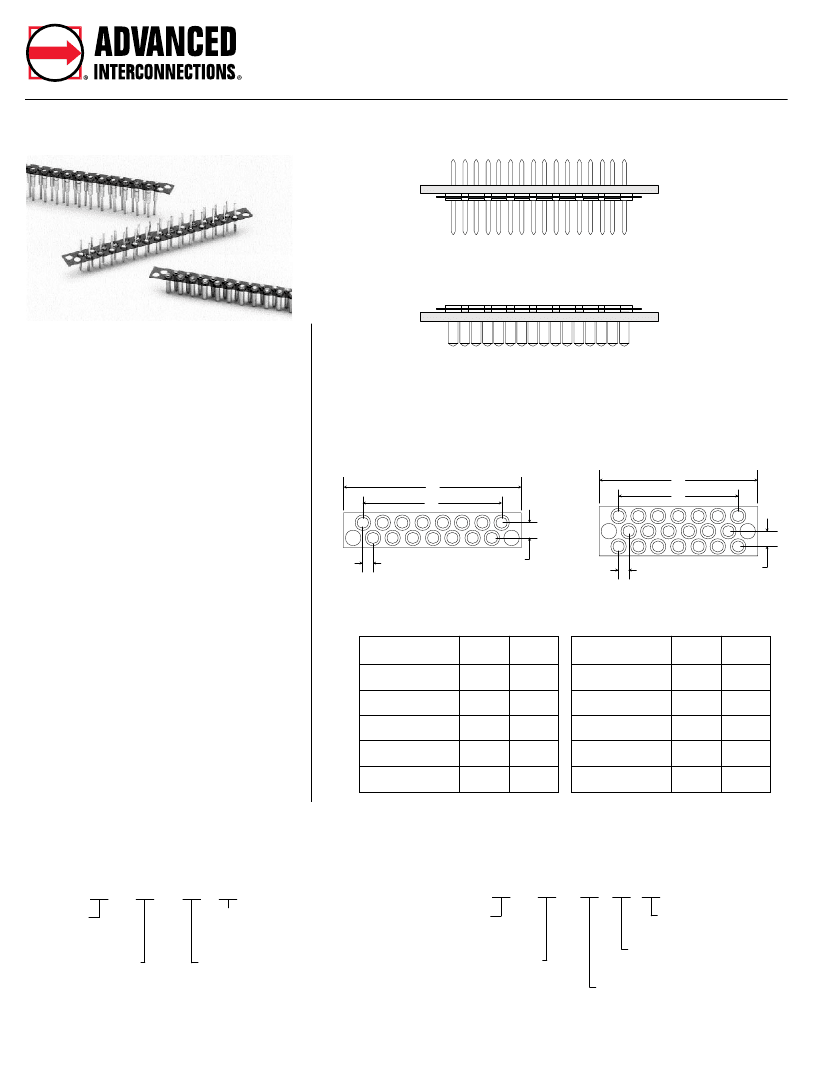

Staggered .050” (1.27mm) Pitch Board to Board Interconnections
PCB
PCB
Features:
• Supplied in high temperature Peel-A-Way
®
removable terminal carrier.
• Sockets and adapters are designed in
mating pairs.
• .050” (1.27mm) and .100” (2.54mm)
centers pin to pin.
• High reliability screw machine terminals
with closed end construction for 100% anti-
wicking of solder.
Dual Row
KEA - Male / KES - Female
P/N Ex. KEA015-131T
Triple Row
HKA - Male / HKS - Female
P/N Ex. HKA020-131T
X
Y
X
Y
Terminals and Contacts:
Terminal: Brass - Copper Alloy (C36000),
ASTM-B-16
Contact: Beryllium Copper - Copper Alloy
(C17200), ASTM-B-194
.050 Typ.
(1.27)
.050 Typ.
(1.27)
.050 Typ.
(1.27)
.050 Typ.
(1.27)
Plating:
Terminal: Gold over Nickel or
Tin-Lead over Nickel
Contact: Gold over Nickel or
Tin-Lead over Nickel
Gold per MIL-G-45204
Tin-Lead per MIL-P-81728
Nickel per QQ-N-290
Dual Row
Total
# of Pins
5
9
15
19
25
X
.400
(10.16)
.600
(15.24)
.900
(22.86)
1.100
(27.94)
1.400
(35.56)
Triple Row
Y
.200
(5.08)
.400
(10.16)
.700
(17.78)
.900
(22.86)
2.450
(30.48)
Total
# of Pins
8
14
20
26
35
X
.400
(10.16)
.600
(15.24)
.800
(20.32)
1.000
(25.40)
1.300
(33.02)
Y
.200
(5.08)
.400
(10.16)
.600
(15.24)
.800
(20.32)
1.100
(27.94)
Body Material:
Polyimide Film, Temp. range -269˚C to
400˚C (-452˚F to 752˚F)
How To Order - Male
KEA
Body Type
KEA - Dual Row
HKA - Triple Row
Total Number of Pins
5 - 25 Positions Dual Row
8 - 35 Positions Triple Row
How To Order - Female
KES
Body Type
KES - Dual Row
HKS - Triple Row
Total Number of Pins
5 - 25 Positions Dual Row
8 - 35 Positions Triple Row
015
-131
T
Terminal Plating
G - Gold
T - Tin-Lead
Terminal Type
015
-85
T
G
Contact Plating
G - Gold T - Tin-Lead
Terminal Plating
G - Gold T - Tin-Lead
Terminal Type
Peel-A-Way
®
covered by patent rights issued and/or pending.
Page 118
Products shown covered by patents issued and/or pending. Specifications subject to change without notice.
inch/(mm)
Board to Board
Interconnections
5 Energy Way, P.O. Box 1019, West Warwick, RI 02893 USA Tel. 800-424-9850/401-823-5200 • Fax 401-823-8723 • Email info@advintcorp.com • Internet http://www.advintcorp.com
Staggered .050” (1.27mm) Pitch Board to Board Interconnections

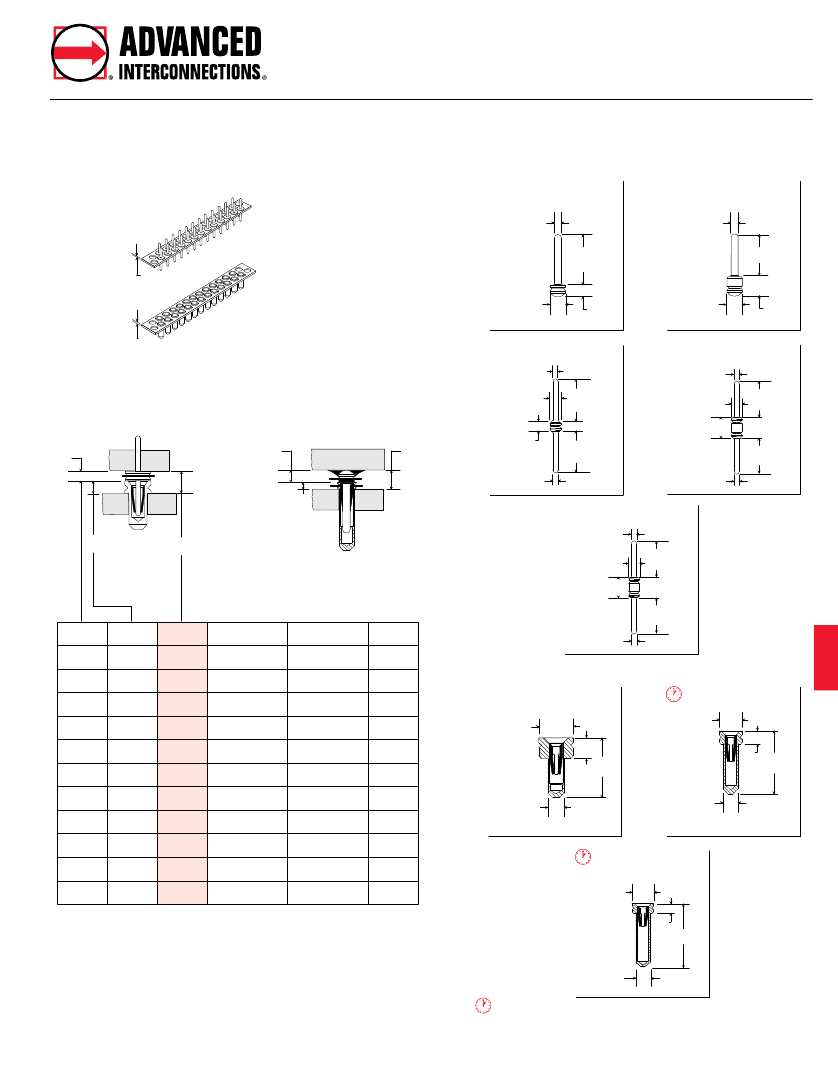

Male Terminal Information
Peel-A-Way Male
KEA025-131TG
®
Type -525
.018 Dia.
(.46)
Type -526
.018 Dia.
(.46)
.110
(2.79)
.129
(3.28)
.005
(.13)
.040 Dia.
(1.02)
.040 Dia.
(1.02)
.031
(.79)
.050
(1.27)
.005
(.13)
Peel-A-Way
®
Female
KES025-85TG
Type -131
.018 Dia.
(.46)
.037 Dia.
(.94)
.125
(3.18)
Type -321
.018 Dia.
(.46)
.037 Dia.
(.94)
.070
(1.78)
.125
(3.18)
Figure 1
Thru Hole
Figure 2
Surface Mount
B
B
A
.031
(.79)
.125
(3.18)
.018 Dia.
(.46)
.125
(3.18)
.018 Dia.
(.46)
C
C
A
Type -322
.018 Dia.
(.46)
.037 Dia.
(.94)
.085
(2.16)
.125
(3.18)
Order One Each Male & Female
To Get the Required "A" Dim.
.125
(3.18)
BOARD TO BOARD
B
.031
(.79)
.031
(.79)
.031
(.79)
.031
.
(79)
.050
.
(1.27)
050
(1.27)
.070
(1.78)
.
.050
(1.27)
.085
(2.16)
.070
(1.78)
.085
(2.16)
C
.015
(.38)
.015
(.38)
.031
(.79)
.031
(.79)
.015
(.38)
.031
(.79)
.015
(.38)
.043
(1.09)
.015
(.38)
.031
(.79)
.031
(.79)
A
.046
(1.17)
.046
(1.17)
.062
(1.57)
.062
(1.57)
.065
(1.65)
.081
(2.06)
.085
(2.16)
.093
(2.36)
.100
(2.54)
.101
(2.57)
.116
(2.95)
Male Part #
Female Part #
Fig. #
1
2
1
2
.
2
2
1
2
1
1
1
.034 Dia.
(.86)
.018 Dia.
(.46)
KEA015-131G KES015-210TG
KEA015-525G KES015-210TG
KEA015-131G KES015-85TG
KEA015-525G KES015-85TG
KEA015-526G KES015-210TG
KEA015-526G KES015-85TG
KEA015-321G KES015-210TG
KEA015-526G KES015-246TG
KEA015-322G KES015-210TG
KEA015-321G KES015-85TG
KEA015-322G KES015-85TG
Female Terminal Information
Type -246
mates with -526 only
Type -85
.058 Dia.
(1.47)
.058 Dia.
(1.47)
.043
(1.09)
.125
(3.18)
.031
(.79)
.155
(3.94)
.038 Dia.
(.97)
Type -210
.058 Dia.
(1.47)
.015
(.38)
15 Position Dual Row Part Numbers Shown
For Additional Ordering Information See Page 118
.034 Dia.
(.86)
.155
(3.94)
If required "A" dimension is not shown, consult factory.
Quick turn delivery available on standard terminal types.
Peel-A-Way
®
covered by patent rights issued and/or pending.
Additional terminal types available.
See terminal section for detailed terminal information.
inch/(mm)
Products shown covered by patents issued and/or pending. Specifications subject to change without notice.
Page 119
