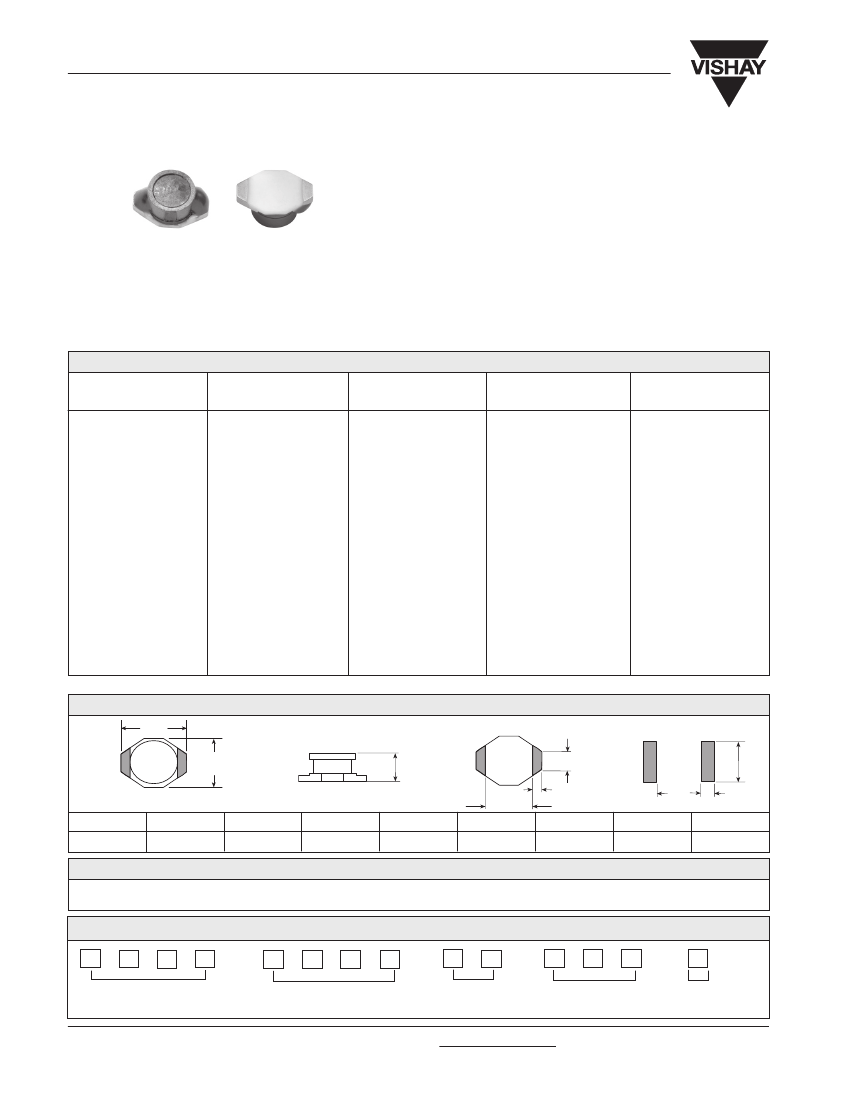

IDCS-2512
Vishay Dale
High Current, Shielded, Surface Mount Inductor
FEATURES
•
•
•
•
High energy storage.
Low resistance.
Magnetically shielded.
Tape and reel packaging for automatic handling.
ELECTRICAL SPECIFICATIONS
Inductance Range:
1.0µH to 10,000µH, tested at 1.0Vrms.
Inductance Tolerance:
20%, tighter tolerances available
upon request.
Operating Temperature:
- 40°C to + 125°C.
Resistance to Solder Heat:
260°C for 10 seconds.
MATERIALS
Core:
Ferrite.
Wire:
Enamelled copper wire.
Base:
Ceramic.
Terminal:
Gold over Nickel.
Adhesive:
Epoxy resin.
STANDARD ELECTRICAL SPECIFICATIONS
INDUCTANCE
(
µ
H)
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1000
1500
2200
3300
4700
6800
10,000
*30°C temperature rise.
TOLERANCE
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
TEST FREQUENCY
L
(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
DCR
MAXIMUM
(Ohms)
0.040
0.045
0.050
0.055
0.060
0.065
0.075
0.090
0.11
0.19
0.23
0.29
0.48
0.59
0.77
1.4
1.8
2.2
3.4
4.2
8.5
11.0
13.9
25.0
32.8
RATED DC
CURRENT*
(Amps)
3.0
2.8
1.8
1.6
1.4
1.2
1.0
0.80
0.70
0.60
0.50
0.40
0.30
0.26
0.22
0.20
0.19
0.18
0.15
0.12
0.10
0.08
0.06
0.04
0.02
DIMENSIONS
in inches [millimeters]
A
Max.
B
Max.
D
Max.
G
E
F
J
I
H
A (Max.)
0.260 [6.60]
B (Max.)
0.175 [4.45]
D (Max.)
0.115 [2.92]
E
0.050 [1.27]
F
0.040 [1.02]
G
0.170 [4.32]
H
0.055 [1.40]
I
0.160 [4.06]
J
0.140 [3.56]
DESCRIPTION
IDCS-2512
MODEL
10
µ
H
INDUCTANCE VALUE
±
20%
INDUCTANCE TOLERANCE
SAP PART NUMBERING GUIDELINES (INTERNAL)
I
D
C
S
2
5
SIZE
1
2
N
B
1
0
0
M
TOL.
PRODUCT FAMILY
See the end of this data book for conversion tables
PACKAGE
CODE
INDUCTANCE
VALUE
www.vishay.com
34
For technical questions, contact Magnetics@vishay.com
Document Number 34009
Revision 28-Aug-02
