Part Number

Search

PE4023

Description
BNC Male Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223, RG400
CategoryThe connector    The connector
File Size492KB,3 Pages
ManufacturerPasternack Enterprises
Websitehttps://www.pasternack.com/
Download Datasheet Parametric View All

PE4023 Overview

BNC Male Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223, RG400

PE4023 Parametric

Parameter NameAttribute value
MakerPasternack Enterprises
Reach Compliance Codeunknow
Other featuresAPPLICABLE CABLES: RG58, RG55, RG141, RG142, RG223, RG400
Characteristic impedance50 Ω
Connector typeRF BNC CONNECTOR
Contact point genderMALE
Coupling typeBAYONET
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialPOLYTETRAFLUORO ETHYLENE
MIL complianceNO
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency4 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeCLAMP/SOLDER
voltage standing wave ratio1.5
Base Number Matches1
BNC Male Connector Clamp/Solder Attachment For
RG58, RG55, RG141, RG142, RG223, RG400
TECHNICAL DATA SHEET
PE4023
BNC Male Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223, RG400
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
BNC Male
MIL-STD-348A
RG58,RG55,RG141,RG142,RG223,RG400
Clamp/Solder
Straight
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
DC to 4
50
1.5:1
500
1,500
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +165
1.09 [27.69]
0.571 [14.50]
0.041 [18.6]
BNC Male
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
Teflon
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
BNC Male Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223,
RG400 PE4023

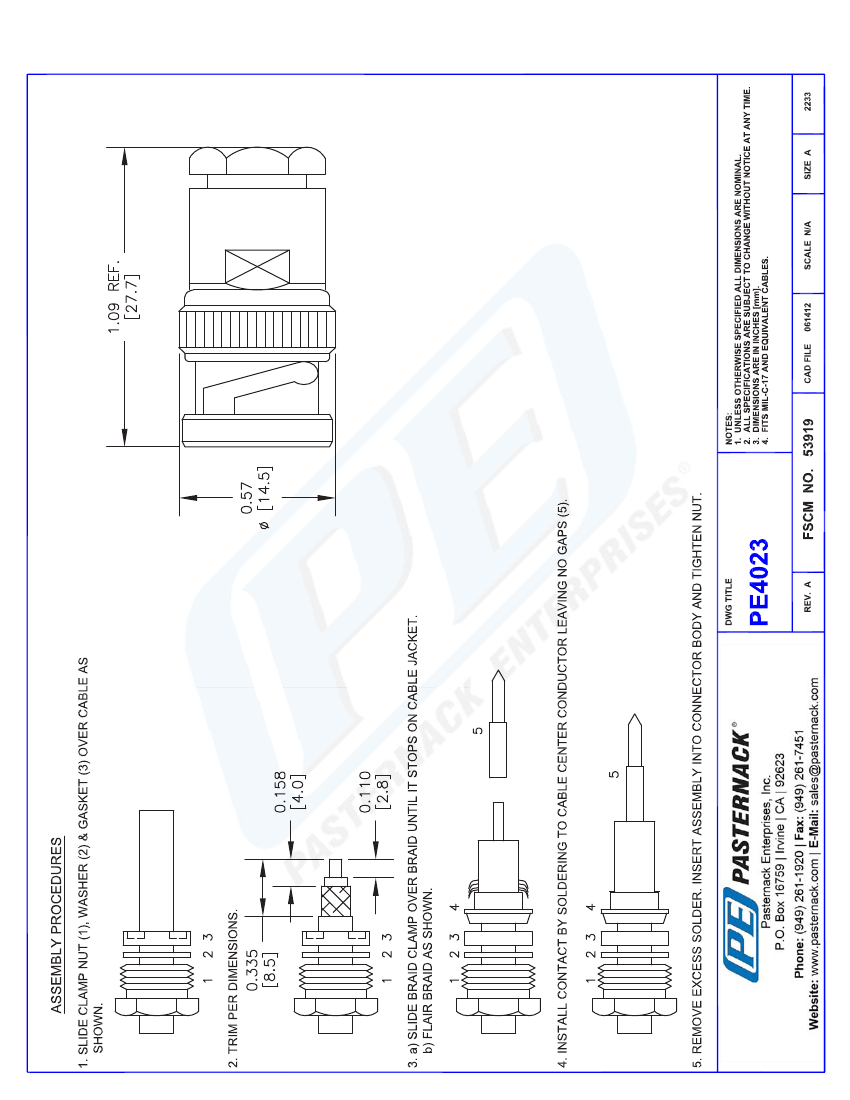

PE4023 REV 1
