PE4047 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PE4047

PE4047: DescriptionTNC Male Connector Crimp/Solder Attachment For RG55, RG141, RG142, RG223, RG400; CategoryThe connector The connector; File Size262KB，3 Pages; ManufacturerPasternack Enterprises; Websitehttps://www.pasternack.com/; Environmental Compliance

Download Datasheet Parametric View All

PE4047 Overview

TNC Male Connector Crimp/Solder Attachment For RG55, RG141, RG142, RG223, RG400

PE4047 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Pasternack Enterprises
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
Other features	VSWR MAX AT 6 GHZ, APPLICABLE CABLES: RG 55; RG 141; RG 142; RG 223; RG 400
Characteristic impedance	50 Ω
Connector type	RF TNC CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	MALE
Contact material	BRASS
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	PE4047
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	11 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP/SOLDER
voltage standing wave ratio	1.5
Base Number Matches	1

Preview

Download Datasheet

View All

TNC Male Connector Crimp/Solder Attachment

For RG55, RG141, RG142, RG223, RG400

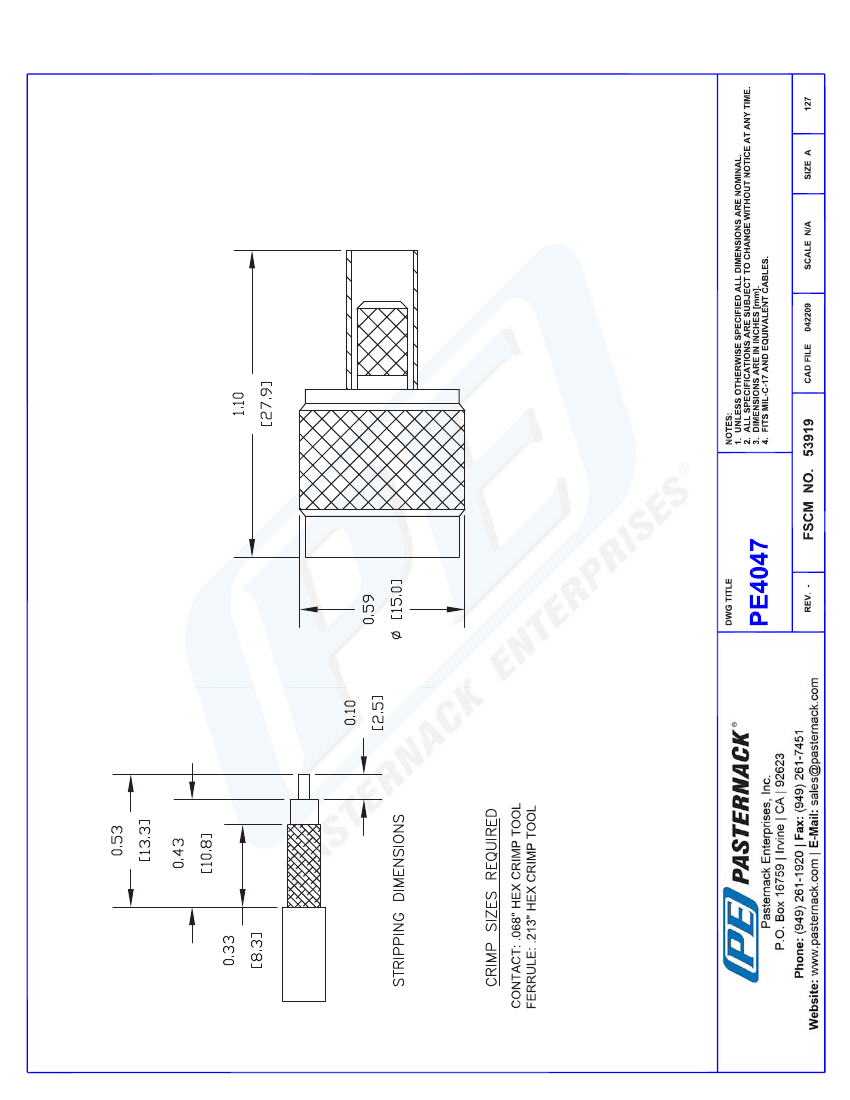

TECHNICAL DATA SHEET

TNC Male Connector Crimp/Solder Attachment For RG55, RG141, RG142, RG223, RG400

Configuration

Connector

Connector Specification

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

TNC Male

MIL-STD-348A

RG55,RG141,RG142,RG223,RG400

Crimp/Solder

Straight

PE4047

Electrical Specifications

Frequency Range, GHz

Impedance, Ohms

Maximum Operating Voltage, Volts

Dielectric Withstanding Voltage, Vrms

Frequency 1

Frequency, GHz

VSWR

DC to 11

500

1,500

DC to 6

1.5:1

Mechanical Specifications

Temperature

Operating Range, deg C

Size

Length, in [mm]

Width/Dia., in [mm]

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Contact Plating Specification

Body Material and Plating

Body Plating Specification

Dielectric Type

-65 to +165

1.097 [27.86]

0.591 [15]

0.027 [12.25]

TNC Male

Brass, Gold

30µ in. minimum

Brass, Nickel

100µ in. minimum

Teflon

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

URL:

http://www.pasternack.com/tnc-male-standard-rg55-rg141-rg142-rg223-rg400-connector-pe4047-p.aspx

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

TNC Male Connector Crimp/Solder Attachment For RG55, RG141, RG142, RG223, RG400

PE4047

PE4047 REV
