BNC Female Right Angle Bulkhead Connector Solder
Attachment Solder Cup Terminal, .361 inch D Hole
TECHNICAL DATA SHEET
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
BNC Female
MIL-STD-348A
Solder Cup
Solder
Right Angle
Bulkhead
PE4055
BNC Female Right Angle Bulkhead Connector Solder Attachment Solder Cup Terminal, .361 inch D Hole
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
DC to 4
50
500
1,500
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +165
1.358 [34.49]
0.831 [21]
0.041 [18.6]
BNC Female
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
Teflon
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/bnc-female-standard-solder-cup-terminal-connector-pe4055-p.aspx
BNC Female Right Angle Bulkhead Connector Solder Attachment Solder Cup Terminal, .361 inch D Hole from Pasternack
Enterprises has same day shipment for domestic and International orders. We maintain 99% availability of the industry’s
broadest selection of RF, microwave and fiber optic products.
PE4055 REV
1
PE4055

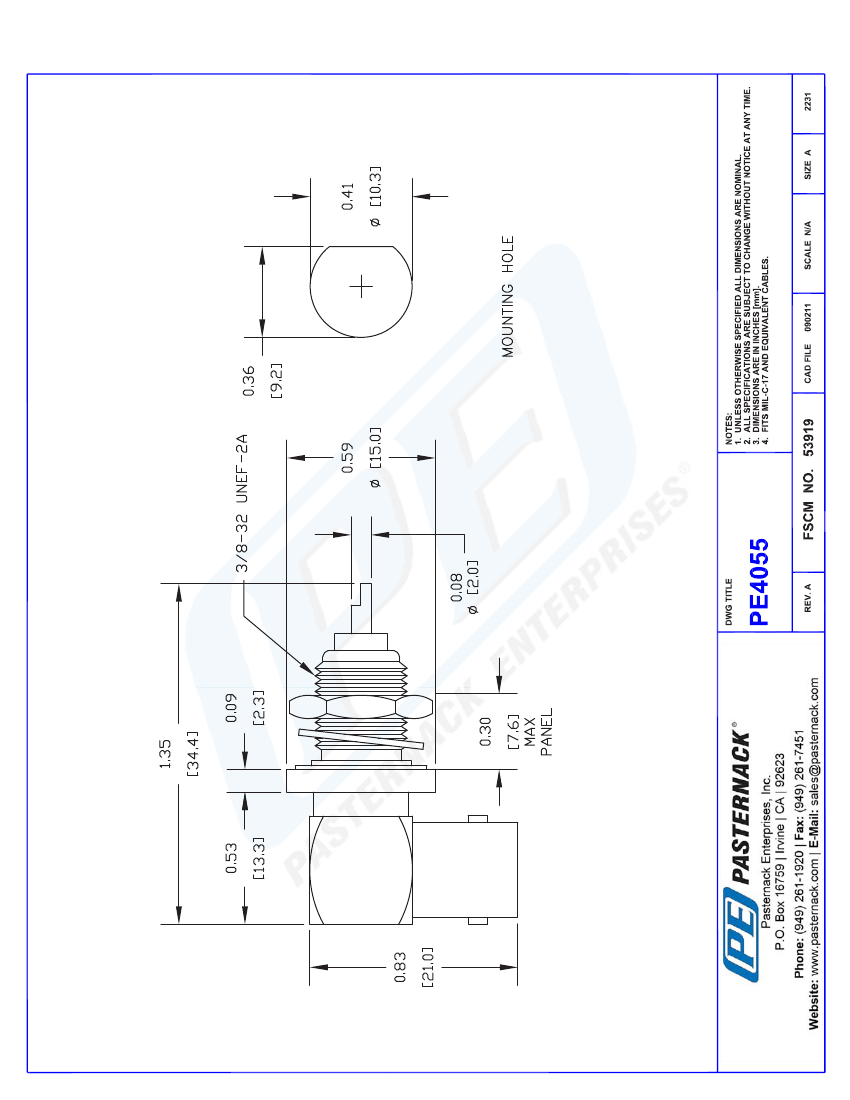

CAD Drawing
BNC Female Right Angle Bulkhead Connector Solder
Attachment Solder Cup Terminal, .361 inch D Hole
© 2012 Pasternack Enterprises All Rights Reserved
PE4055 REV
2
