PE4062: DescriptionN Male Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG11, RG225, RG393; CategoryThe connector The connector; File Size252KB，2 Pages; ManufacturerPasternack Enterprises; Websitehttps://www.pasternack.com/; Environmental Compliance

Download Datasheet Parametric View All

PE4062 Overview

N Male Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG11, RG225, RG393

PE4062 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Pasternack Enterprises
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
Other features	APPLICABLE CABLES: RG 213; RG 214; RG 8; RG 9; RG 11; RG 225; RG 393
Characteristic impedance	50 Ω
Connector type	RF N CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	PE4062
Installation method	STRAIGHT
Installation type	CABLE
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CLAMP/SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

N Male Connector Clamp/Solder Attachment For

RG213, RG214, RG8, RG9, RG11, RG225, RG393

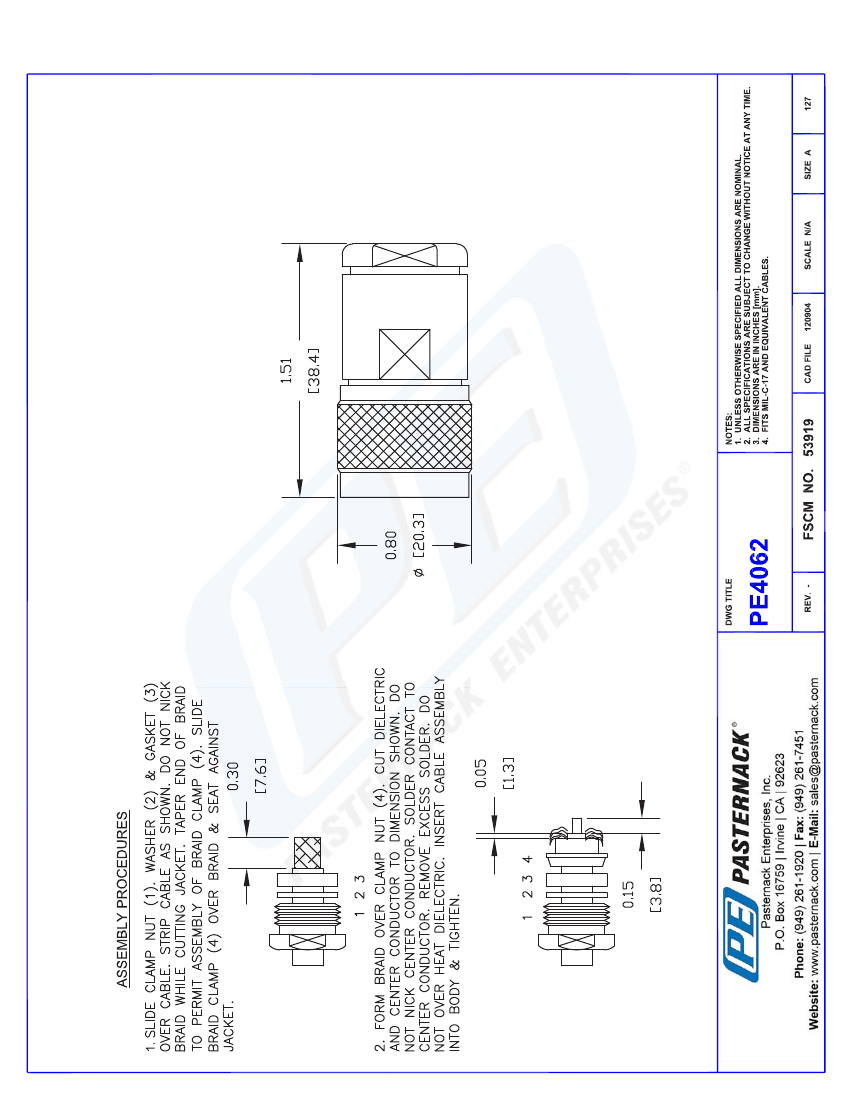

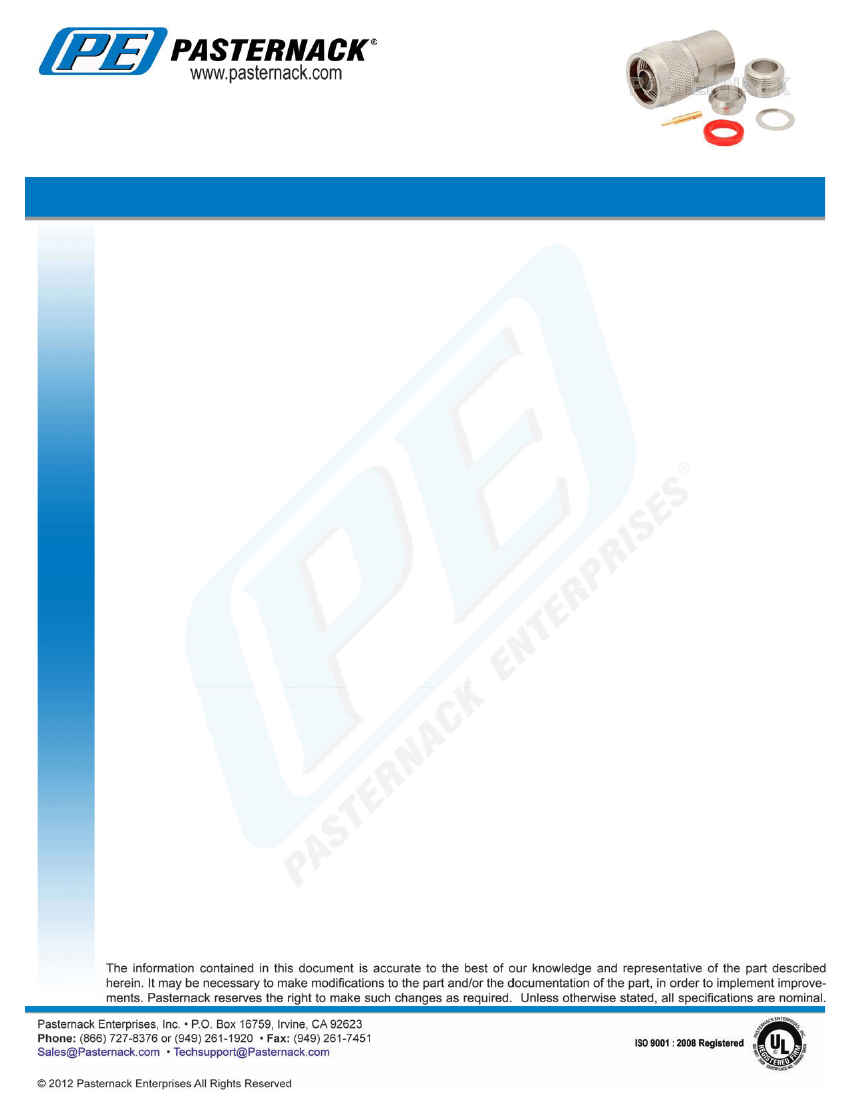

TECHNICAL DATA SHEET

Configuration

Connector

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

N Male

RG213,RG214,RG8,RG9,RG11,RG225,RG393

Clamp/Solder

Straight

PE4062

N Male Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG11, RG225, RG393

Electrical Specifications

Impedance, Ohms

50

Mechanical Specifications

Size

Length, in [mm]

Width/Dia., in [mm]

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Body Material and Plating

Dielectric Type

1.51 [38.35]

0.8 [20]

0.123 [55.79]

N Male

Brass, Gold

Brass, Nickel

Teflon

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

URL:

http://www.pasternack.com/n-male-standard-rg213-rg214-rg8-rg9-rg11-rg225-rg393-connector-pe4062-p.aspx

N Male Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG11, RG225, RG393 from Pasternack

Enterprises has same day shipment for domestic and International orders. We maintain 99% availability of the industry’s

broadest selection of RF, microwave and fiber optic products.

PE4062 REV

1
