SHV Plug Connector Clamp/Solder Attachment For RG59, RG62
TECHNICAL DATA SHEET
SHV Plug Connector Clamp/Solder Attachment For RG59, RG62
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
SHV Plug
MIL-STD-348A
RG59,RG62
Clamp/Solder
Straight
PE4100
Electrical Specifications
Frequency Range, MHz
Impedance, Ohms
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
DC to 300
50
3,500
5,000
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
-65 to +165
1.83 [46.48]
0.57 [14]
0.055 [24.95]
SHV Plug
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/shv-plug-standard-rg59-rg62-connector-pe4100-p.aspx
SHV Plug Connector Clamp/Solder Attachment For RG59, RG62 from Pasternack Enterprises has same day shipment for
domestic and International orders. We maintain 99% availability of the industry’s broadest selection of RF, microwave and
fiber optic products.
PE4100 REV
1
PE4100

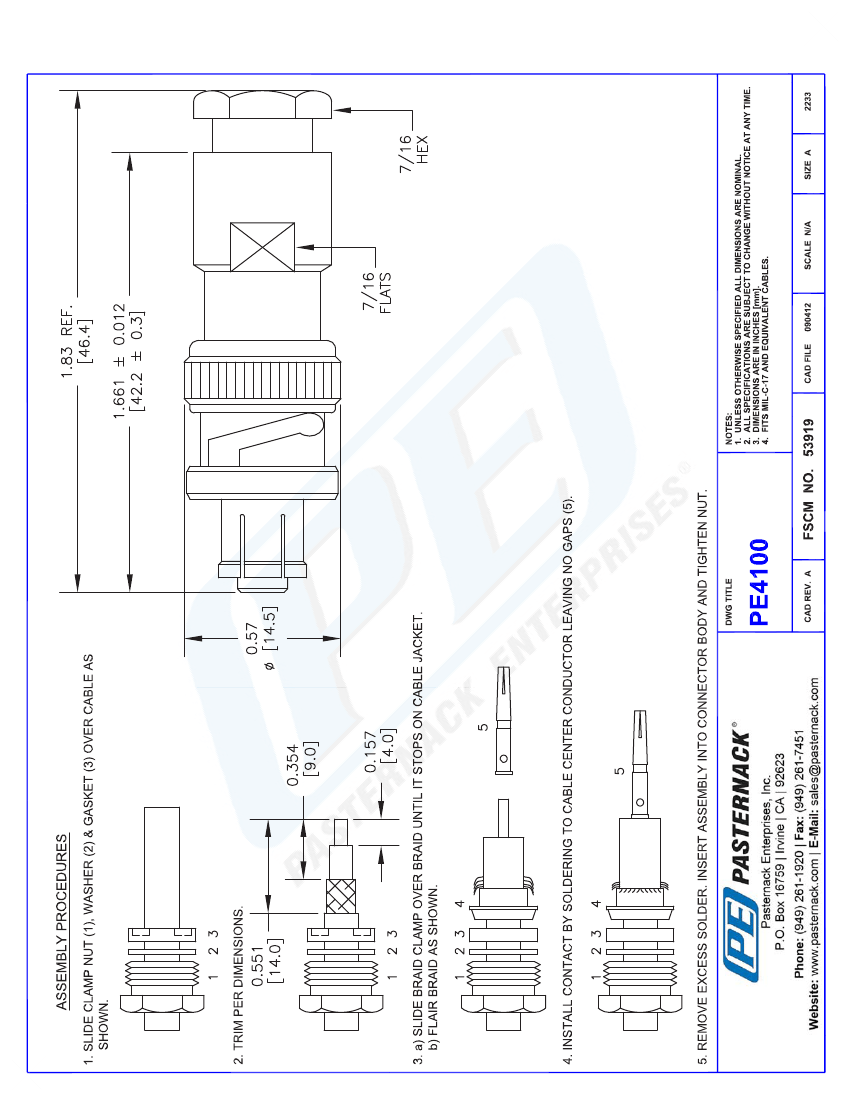

CAD Drawing
SHV Plug Connector Clamp/Solder Attachment For RG59, RG62
© 2012 Pasternack Enterprises All Rights Reserved
PE4100 REV
2
