PE4116 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PE4116

PE4116: DescriptionSMA Female Connector Solder Attachment For PE-SR405AL, PE-SR405FL, RG405; CategoryThe connector The connector; File Size207KB，2 Pages; ManufacturerPasternack Enterprises; Websitehttps://www.pasternack.com/

Download Datasheet Parametric View All

PE4116 Overview

SMA Female Connector Solder Attachment For PE-SR405AL, PE-SR405FL, RG405

PE4116 Parametric

Parameter Name	Attribute value
Maker	Pasternack Enterprises
Reach Compliance Code	unknow
ECCN code	EAR99
Connector type	RF SMA CONNECTOR
Manufacturer's serial number	PE4116

Preview

Download Datasheet

View All

SMA Female Connector Solder Attachment For

PE-SR405AL, PE-SR405FL, RG405

TECHNICAL DATA SHEET

SMA Female Connector Solder Attachment For PE-SR405AL, PE-SR405FL, RG405

Configuration

Connector

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

SMA Female

PE-SR405AL,PE-SR405FL,RG405

Solder/Solder

Straight

PE4116

Electrical Specifications

Impedance, Ohms

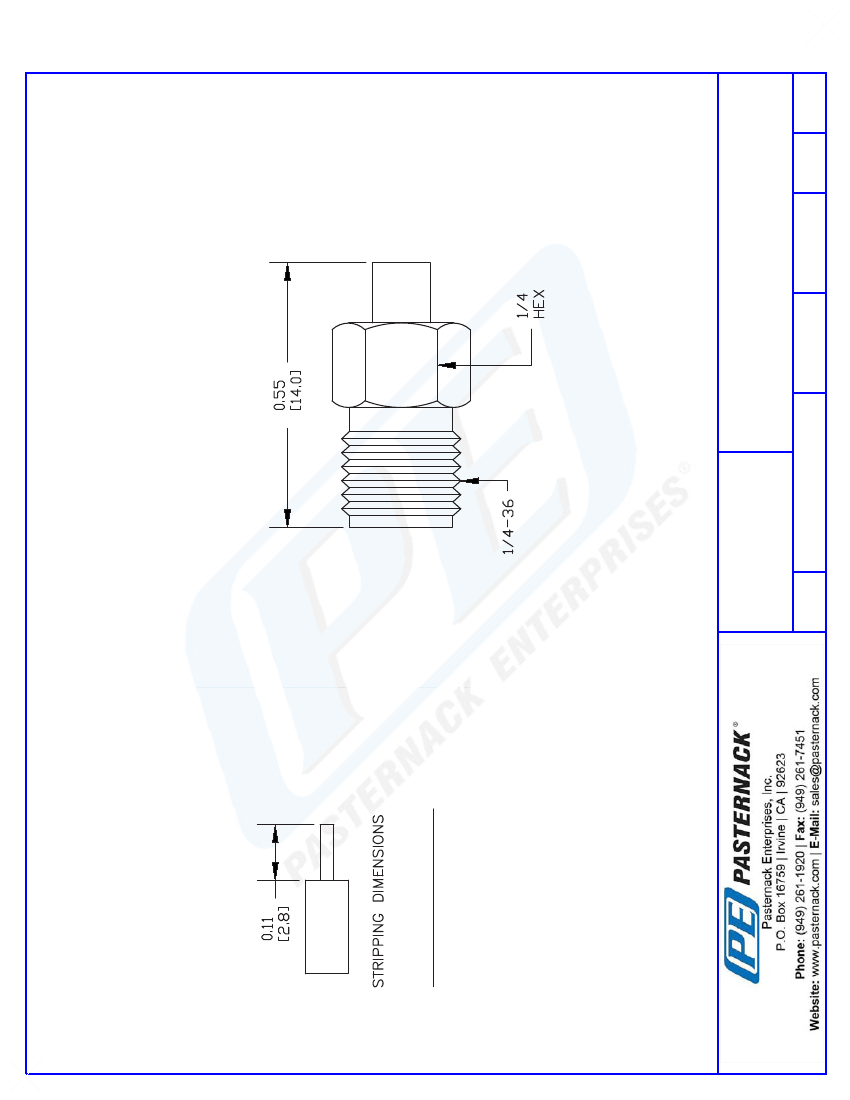

Mechanical Specifications

Size

Length, in [mm]

Width/Dia., in [mm]

0.55 [13.97]

0.25 [6]

0.004 [1.81]

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Body Material and Plating

Dielectric Type

SMA Female

Gold

Stainless Steel, Gold

PTFE

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

SMA Female Connector Solder Attachment For PE-SR405AL, PE-SR405FL, RG405 from Pasternack Enterprises has same

day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability

and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

SMA Female Connector Solder Attachment For PE-SR405AL, PE-SR405FL, RG405 PE4116

URL:

http://www.pasternack.com/sma-female-standard-pe-sr405al-pe-sr405fl-rg405-connector-pe4116-p.aspx

PE4116 REV
