TNC Female Bulkhead Connector Crimp/Solder
Attachment For RG58, .480 inch D Hole
TECHNICAL DATA SHEET
TNC Female Bulkhead Connector Crimp/Solder Attachment For RG58, .480 inch D Hole
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
TNC Female
MIL-STD-348A
RG58
Crimp/Solder
Straight
Bulkhead
PE4151
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
DC to 4
50
500
1,500
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +165
1.42 [36.07]
0.689 [18]
0.041 [18.6]
TNC Female
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
Teflon
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes

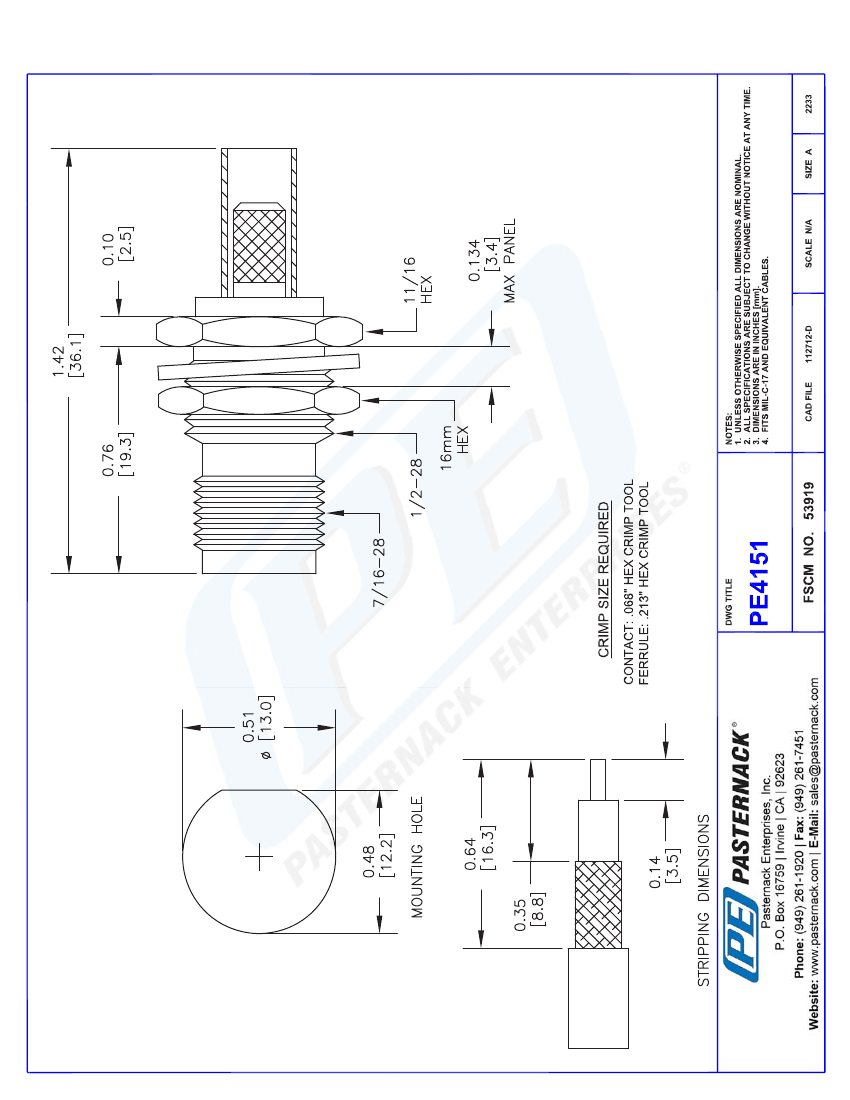

Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/tnc-female-standard-rg58-connector-pe4151-p.aspx
TNC Female Bulkhead Connector Crimp/Solder Attachment For RG58, .480 inch D Hole from Pasternack Enterprises has
same day shipment for domestic and International orders. We maintain 99% availability of the industry’s broadest selection of
RF, microwave and fiber optic products.
PE4151 REV
1
