PE4167 Overview

SMB Jack Bulkhead Mount Connector Solder Attachment Solder Cup Terminal, .177 inch D Hole, Rear Mount

PE4167 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Connector type	RF SMB CONNECTOR
Manufacturer's serial number	PE4167
Base Number Matches	1

Preview

Download Datasheet

View All

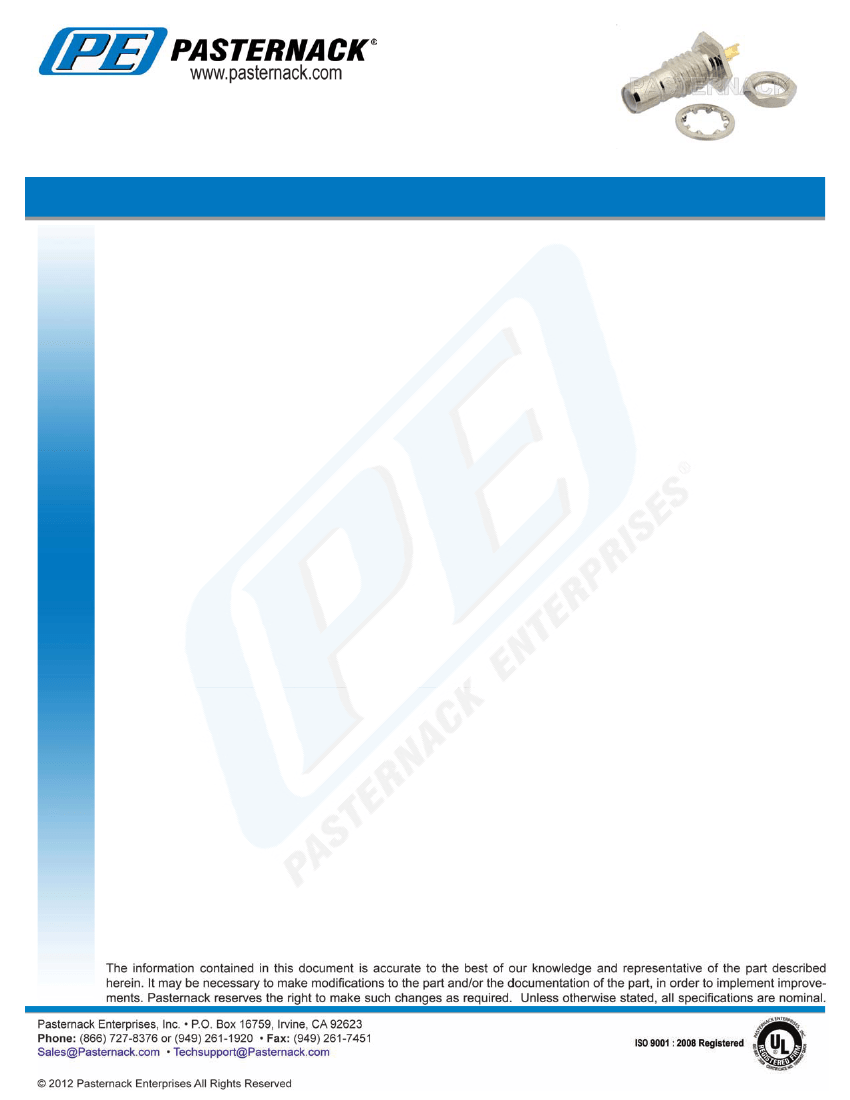

SMB Jack Bulkhead Connector Solder Attachment

Solder Cup Terminal, .177 inch D Hole, Rear Mount

TECHNICAL DATA SHEET

Configuration

Connector

Connector Specification

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

Mount Method

SMB Jack

MIL-STD-348A

Solder Cup

Solder

Straight

Bulkhead

PE4167

SMB Jack Bulkhead Connector Solder Attachment Solder Cup Terminal, .177 inch D Hole, Rear Mount

Electrical Specifications

Frequency Range, GHz

Impedance, Ohms

Maximum Operating Voltage, Volts

Dielectric Withstanding Voltage, Vrms

DC to 4

50

335

1,000

Mechanical Specifications

Temperature

Operating Range, deg C

Size

Length, in [mm]

Width/Dia., in [mm]

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Contact Plating Specification

Body Material and Plating

Body Plating Specification

Dielectric Type

-65 to +165

0.606 [15.39]

0.25 [6]

0.008 [3.63]

SMB Jack

Brass, Gold

30µ in. minimum

Brass, Nickel

100µ in. minimum

Teflon

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

URL:

http://www.pasternack.com/smb-jack-standard-solder-cup-terminal-connector-pe4167-p.aspx

SMB Jack Bulkhead Connector Solder Attachment Solder Cup Terminal, .177 inch D Hole, Rear Mount from Pasternack

Enterprises has same day shipment for domestic and International orders. We maintain 99% availability of the industry’s

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

SMB Jack Bulkhead Connector Solder Attachment Solder Cup Terminal, .177 inch D Hole,

Rear Mount PE4167

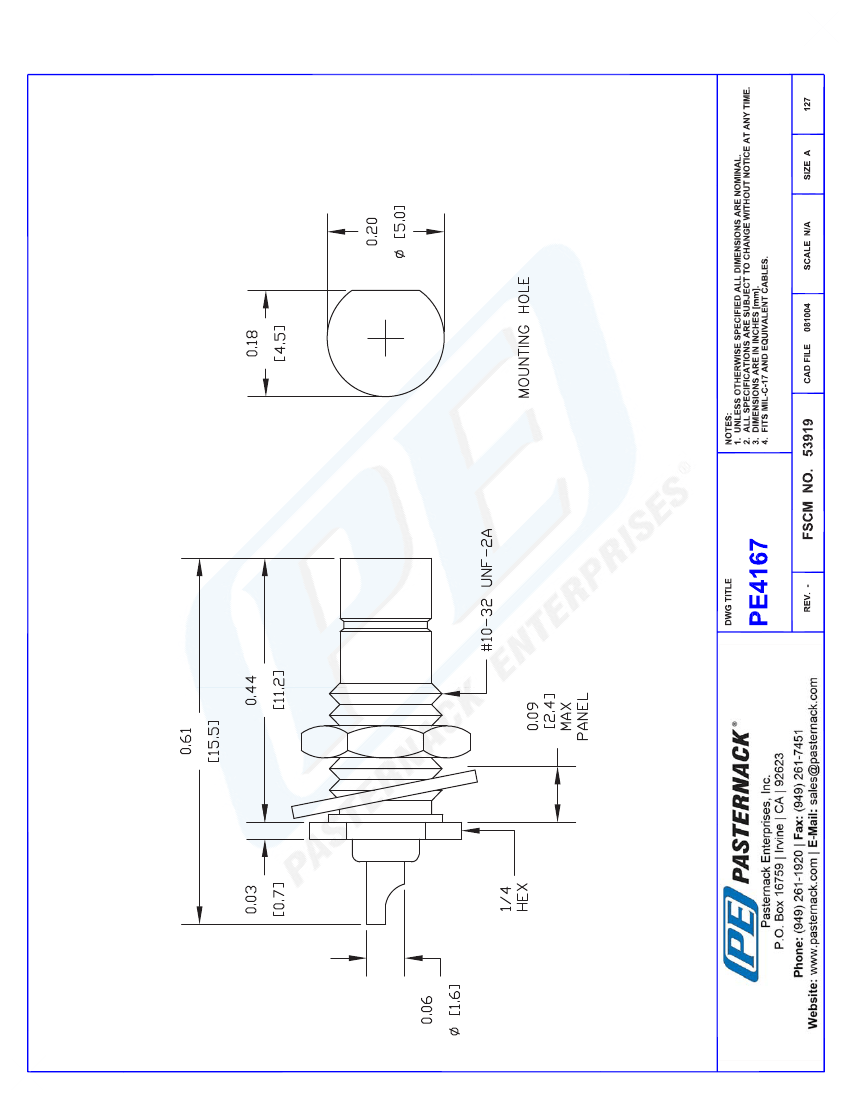

PE4167 REV

1
