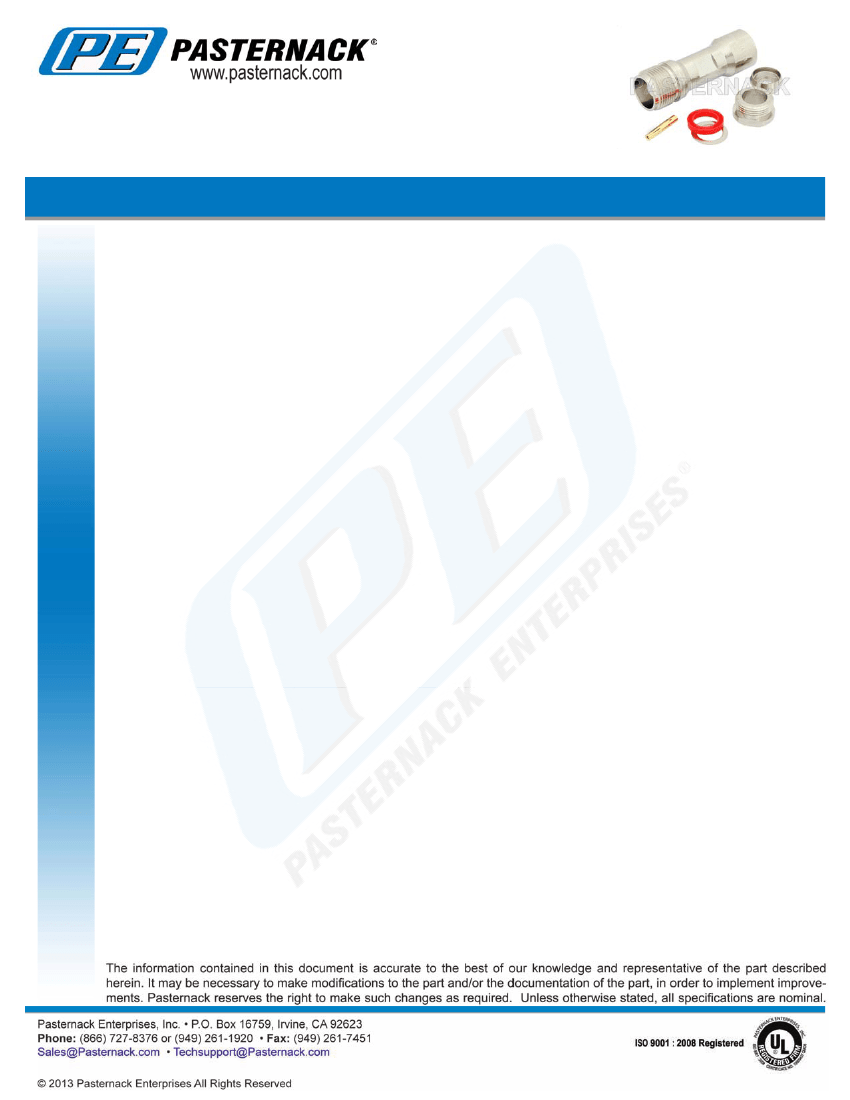

HN Female Connector Clamp/Solder Attachment For
RG213, RG214, RG8, RG9, RG225, RG393
TECHNICAL DATA SHEET
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
HN Female
MIL-STD-348A
RG213,RG214,RG8,RG9,RG225,RG393
Clamp/Solder
Straight
PE4229
HN Female Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG225, RG393
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum Operating Voltage, Volts
DC to 10
50
1,500
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +165
2.52 [64.01]
0.75 [19]
0.178 [80.74]
HN Female
Brass, Gold
Brass, Nickel
100µ in. minimum
Teflon
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Body Material and Plating
Body Plating Specification
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/hn-female-standard-rg213-rg214-rg8-rg9-rg225-rg393-connector-pe4229-p.aspx
HN Female Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG225, RG393 from Pasternack Enterprises
has same day shipment for domestic and International orders. We maintain 99% availability of the industry’s broadest selection
of RF, microwave and fiber optic products.
PE4229 REV
1
PE4229

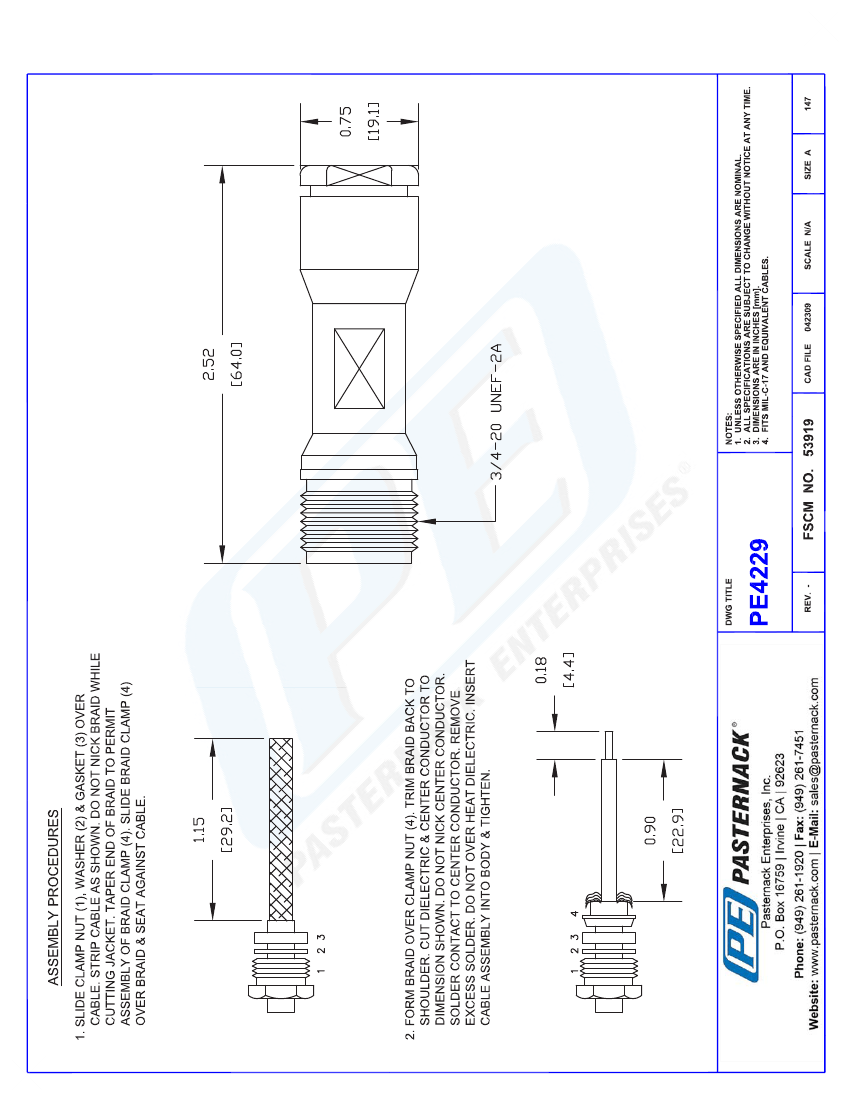

CAD Drawing
HN Female Connector Clamp/Solder Attachment For
RG213, RG214, RG8, RG9, RG225, RG393
© 2012 Pasternack Enterprises All Rights Reserved
PE4229 REV
2
