PE44133 Overview

SMC Jack Connector Solder Attachment 0.042 inch End Launch PCB, .030 inch Diameter

Preview

Download Datasheet

View All

SMC Jack Connector Solder Attachment 0.042 inch

End Launch PCB, .030 inch Diameter

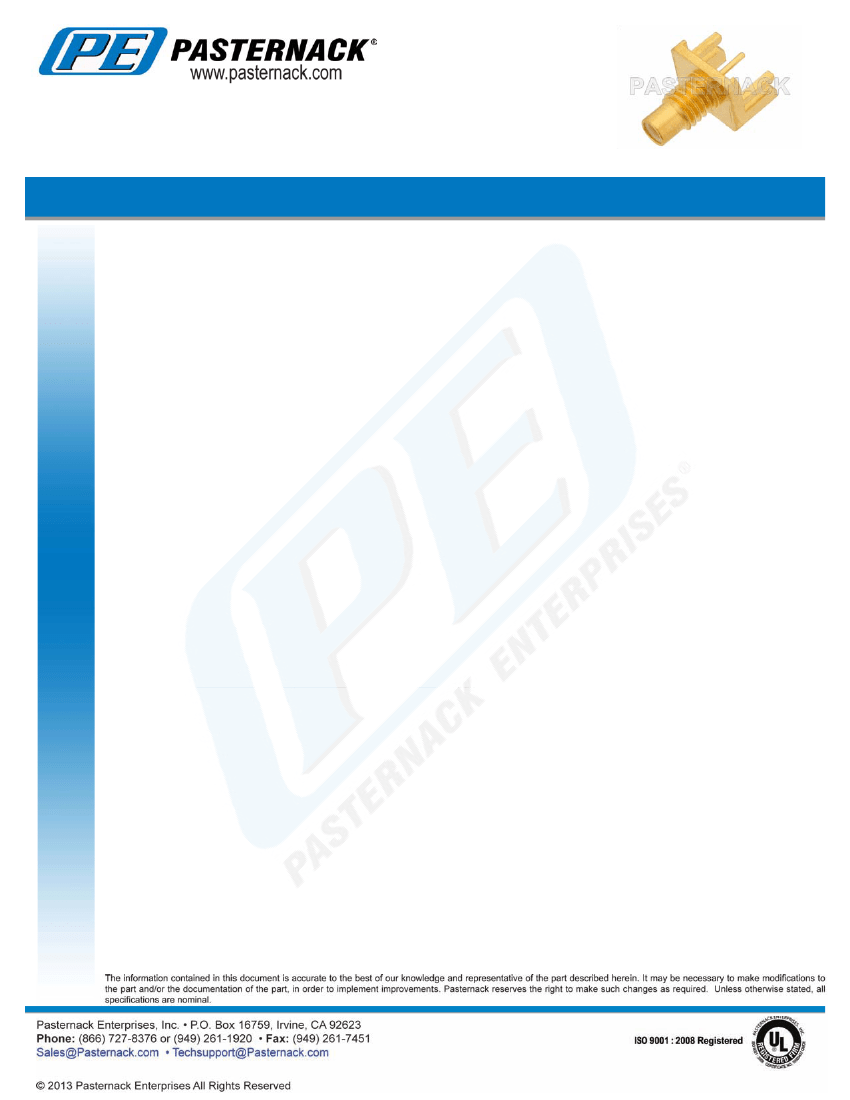

TECHNICAL DATA SHEET

SMC Jack Connector Solder Attachment 0.042 inch End Launch PCB, .030 inch Diameter

Configuration

Connector

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

SMC Jack

0.042 inch End Launch

Solder

Straight

PE44133

Electrical Specifications

Impedance, Ohms

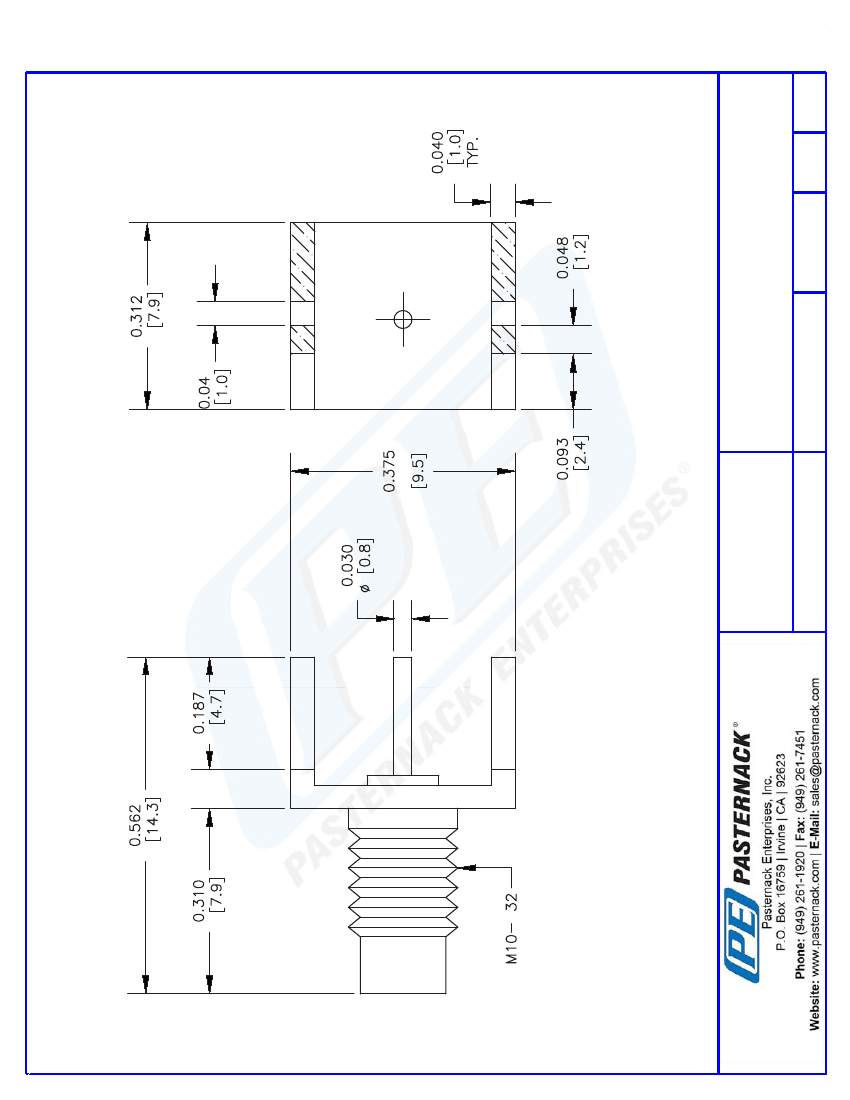

Mechanical Specifications

Size

Length, in [mm]

Width/Dia., in [mm]

Height, in [mm]

0.562 [14.27]

0.375 [9.53]

0.312 [7.92]

0.005 [2.27]

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Body Material and Plating

Dielectric Type

SMC Jack

Gold

Brass, Gold

PTFE

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

SMC Jack Connector Solder Attachment 0.042 inch End Launch PCB, .030 inch Diameter from Pasternack Enterprises

has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%

availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

SMC Jack Connector Solder Attachment 0.042 inch End Launch PCB, .030 inch Diameter PE44133

URL:

http://www.pasternack.com/smc-jack-standard-0.042-end-launch-connector-pe44133-p.aspx

PE44133 REV 01
