75 Ohm Mini SMB Jack Connector Solder
Attachment 0.042 inch End Launch PCB
TECHNICAL DATA SHEET
75 Ohm Mini SMB Jack Connector Solder Attachment 0.042 inch End Launch PCB
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mini SMB Jack
0.042 inch End Launch
Solder
Straight
PE44134
Electrical Specifications
Impedance, Ohms
75
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
0.56 [14.22]
0.25 [6.35]
0.25 [6.35]
0.004 [1.81]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Body Material and Plating
Dielectric Type
Mini SMB Jack
Gold
Brass, Gold
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes

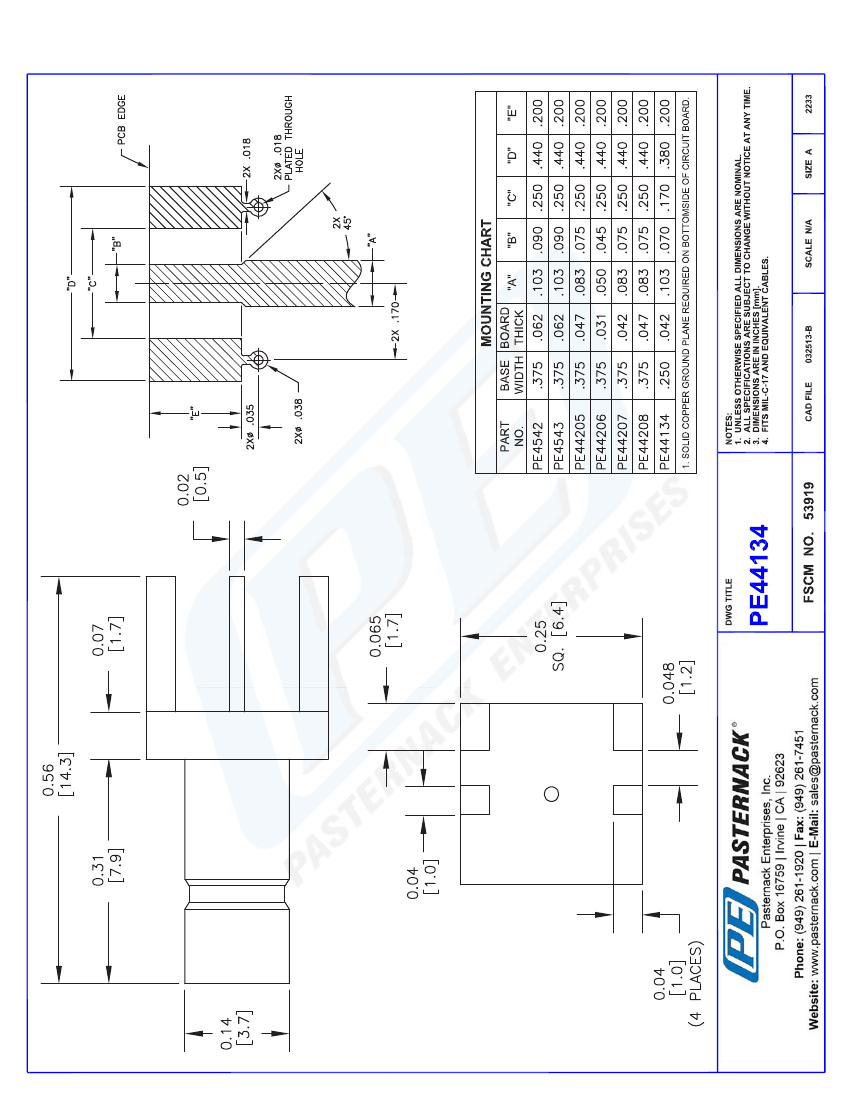

Plotted and Other Data
Notes:
Values at 25 °C, sea level
75 Ohm Mini SMB Jack Connector Solder Attachment 0.042 inch End Launch PCB from Pasternack Enterprises has same
day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability
and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
75 Ohm Mini SMB Jack Connector Solder Attachment 0.042 inch End Launch PCB PE44134
URL:
http://www.pasternack.com/mini-smb-jack-standard-0.042-end-launch-connector-pe44134-p.aspx
PE44134 REV
1
