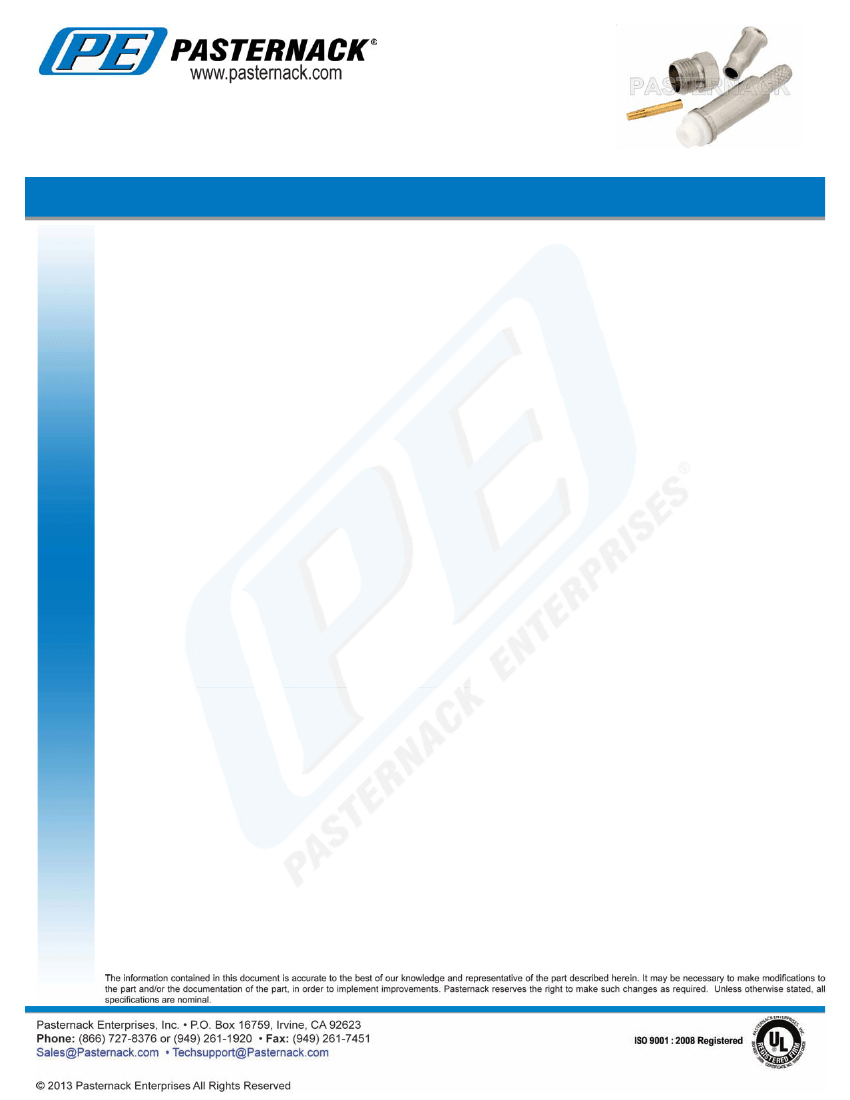

FME Jack Connector Crimp/Solder Attachment
For RG174, RG316, RG188
TECHNICAL DATA SHEET
FME Jack Connector Crimp/Solder Attachment For RG174, RG316, RG188
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
FME Jack
RG174,RG316,RG188
Crimp/Solder
Straight
PE44148
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
1.28 [32.51]
0.312 [7.92]
0.013 [5.9]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Body Material and Plating
Dielectric Type
FME Jack
Brass, Gold
Brass, Nickel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
FME Jack Connector Crimp/Solder Attachment For RG174, RG316, RG188 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
FME Jack Connector Crimp/Solder Attachment For RG174, RG316, RG188 PE44148
URL:
http://www.pasternack.com/fme-jack-standard-rg174-rg316-rg188-connector-pe44148-p.aspx
PE44148 REV 01
1
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE44148

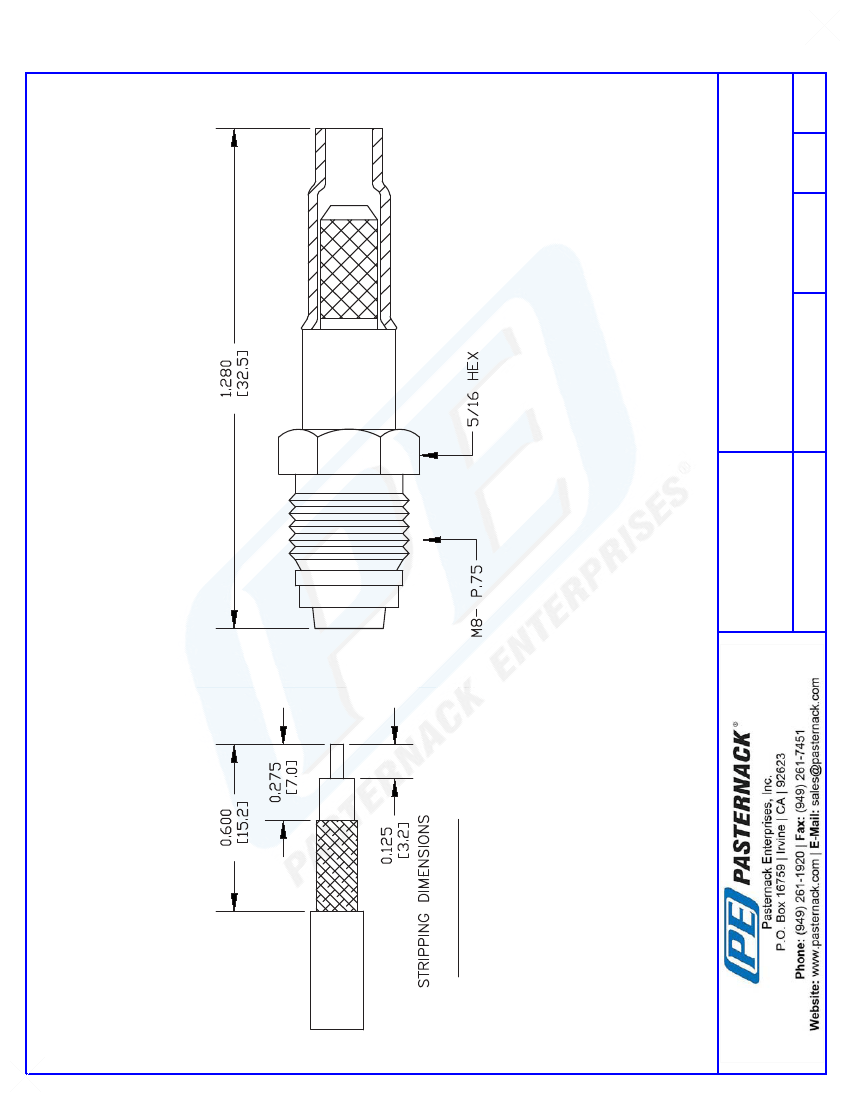

CAD Drawing
FME Jack Connector Crimp/Solder Attachment For RG174, RG316, RG188
PE44148 REV 01
CRIMP SIZE REQUIRED
CONTACT: .068" HEX CRIMP TOOL
FERRULE: .178" HEX CRIMP TOOL
PE44148
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
062702
SCALE N/A
SIZE A
XXXX
2
