75 Ohm TNC Male Connector Clamp/Solder
Attachment For RG11, RG216
TECHNICAL DATA SHEET
75 Ohm TNC Male Connector Clamp/Solder Attachment For RG11, RG216
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
TNC Male
MIL-C-39012
RG11,RG216
Clamp/Solder
Straight
PE44163
Electrical Specifications
Impedance, Ohms
75
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +165
1.67 [42.42]
0.75 [19]
0.11 [49.9]
TNC Male
Silver
QQ-S-365
Brass, Nickel
Brass, Nickel
Teflon
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Coupling Nut Material and Plating
Body Material and Plating
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/tnc-male-standard-rg11-rg216-connector-pe44163-p.aspx
75 Ohm TNC Male Connector Clamp/Solder Attachment For RG11, RG216 from Pasternack Enterprises has same day
shipment for domestic and International orders. We maintain 99% availability of the industry’s broadest selection of RF,
microwave and fiber optic products.
PE44163 REV
1
PE44163

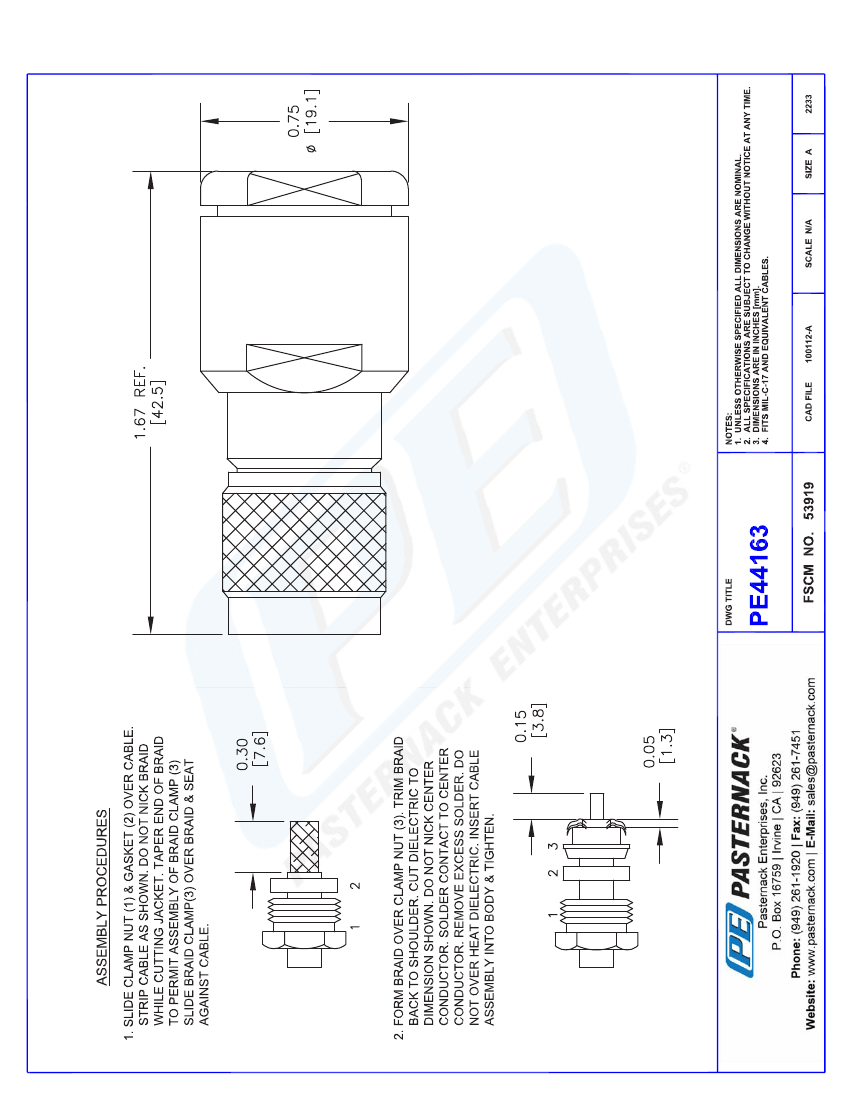

CAD Drawing
75 Ohm TNC Male Connector Clamp/Solder Attachment For RG11, RG216
© 2012 Pasternack Enterprises All Rights Reserved
PE44163 REV
2
