75 Ohm TNC Male Right Angle Connector
Clamp/Solder Attachment For RG59
TECHNICAL DATA SHEET
75 Ohm TNC Male Right Angle Connector Clamp/Solder Attachment For RG59
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
TNC Male
MIL-C-39012
RG59
Clamp/Solder
Right Angle
PE44171
Electrical Specifications
Impedance, Ohms
75
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
-65 to +165
1.48 [37.59]
0.59 [14.99]
1.032 [26.21]
0.068 [30.84]
TNC Male
Silver
QQ-S-365
Brass, Nickel
Brass, Nickel
Teflon
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Coupling Nut Material and Plating
Body Material and Plating
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
75 Ohm TNC Male Right Angle Connector Clamp/Solder Attachment For RG59 PE44171
PE44171 REV 01
1
75 Ohm TNC Male Right Angle Connector
Clamp/Solder Attachment For RG59
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE44171
75 Ohm TNC Male Right Angle Connector Clamp/Solder Attachment For RG59 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
75 Ohm TNC Male Right Angle Connector Clamp/Solder Attachment For RG59 PE44171
URL:
http://www.pasternack.com/tnc-male-standard-rg59-connector-pe44171-p.aspx
PE44171 REV 01
2
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
ASSEMBLY PROCEDURES
75 Ohm TNC Male Right Angle Connector Clamp/Solder Attachment For RG59
PE44171

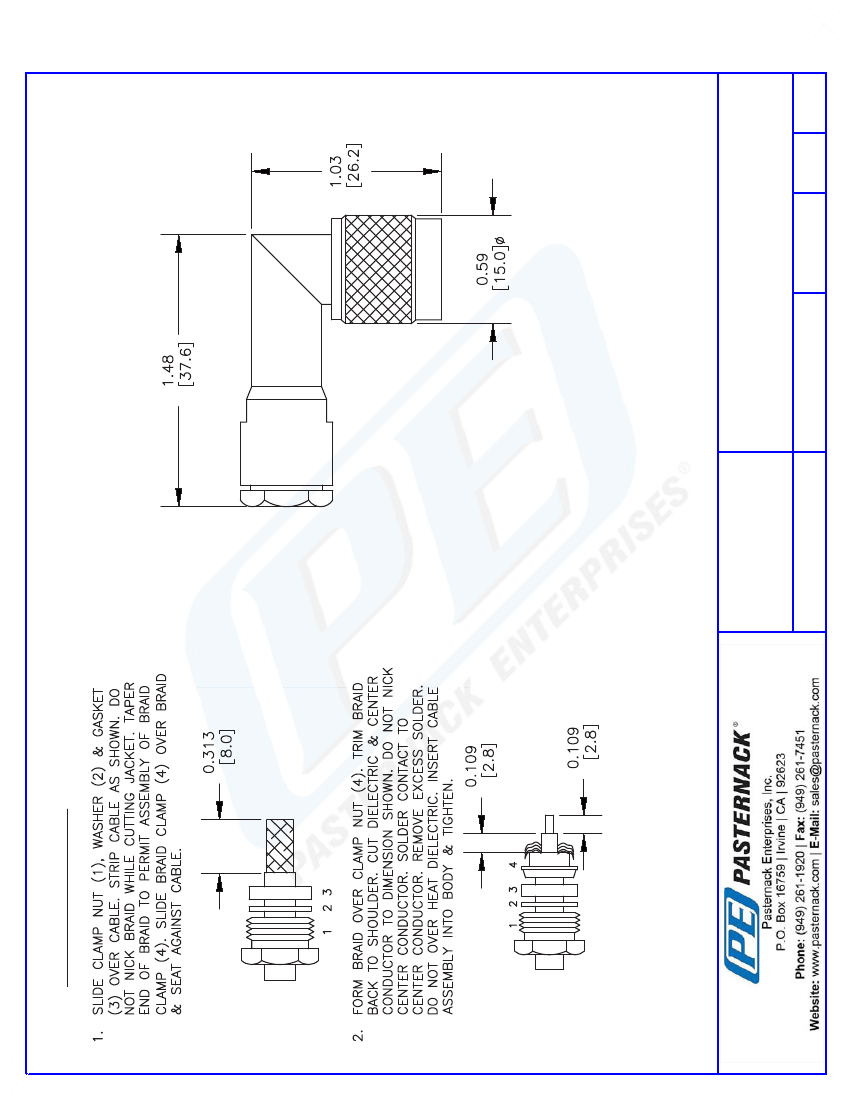

CAD Drawing
PE44171 REV 01
PE44171
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
070302
SCALE N/A
SIZE A
XXXX
3
