75 Ohm TNC Female Bulkhead Connector Clamp/Solder
Attachment For RG11, RG216, .480 inch D Hole
TECHNICAL DATA SHEET
PE44174
75 Ohm TNC Female Bulkhead Connector Clamp/Solder Attachment For RG11, RG216, .480 inch D Hole
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
TNC Female
RG11,RG216
Clamp/Solder
Straight
Bulkhead
Electrical Specifications
Impedance, Ohms
75
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
1.53 [38.86]
0.75 [19.05]
0.082 [37.19]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Body Material and Plating
Dielectric Type
TNC Female
Silver
Brass, Nickel
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
75 Ohm TNC Female Bulkhead Connector Clamp/Solder Attachment For RG11, RG216, .480 inch D Hole from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain
a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
75 Ohm TNC Female Bulkhead Connector Clamp/Solder Attachment For RG11, RG216, .480 inch
D Hole PE44174
URL:
http://www.pasternack.com/tnc-female-standard-rg11-rg216-connector-pe44174-p.aspx
PE44174 REV 01
1
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
ASSEMBLY PROCEDURES
PE44174

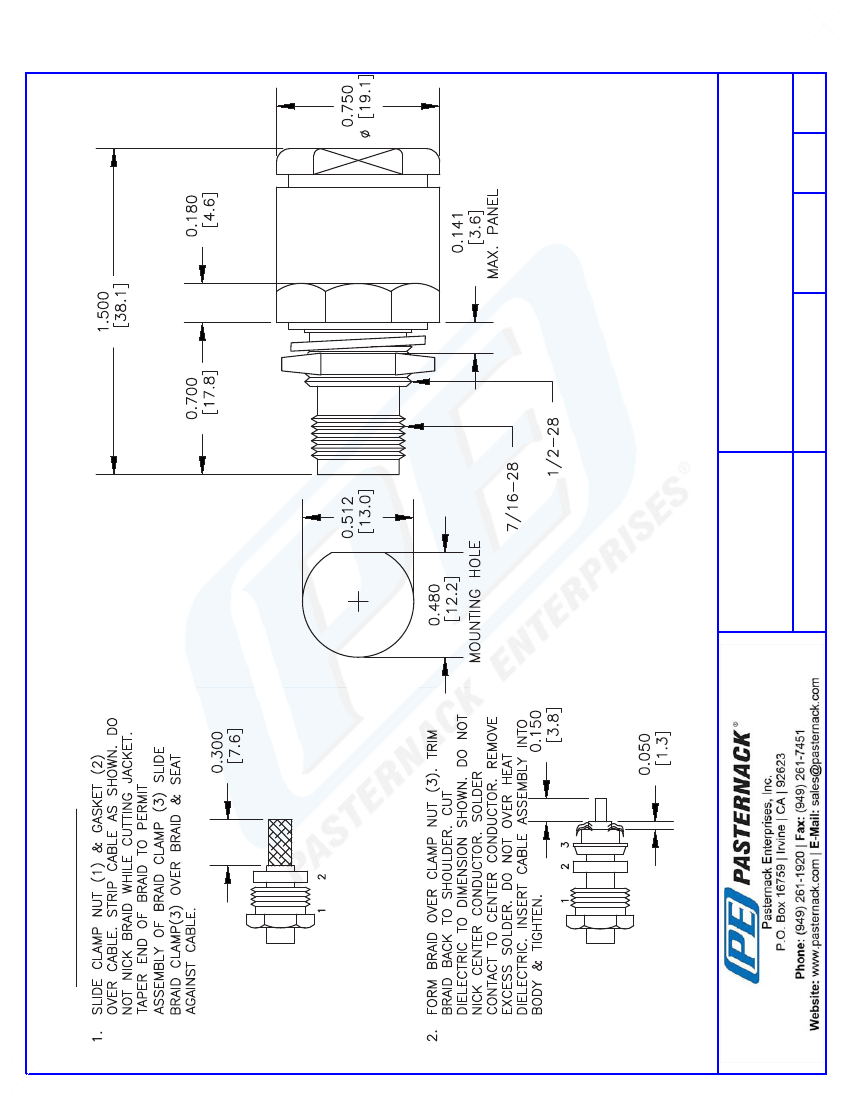

CAD Drawing
75 Ohm TNC Female Bulkhead Connector Clamp/Solder
Attachment For RG11, RG216, .480 inch D Hole
PE44174 REV 01
PE44174
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
042210-A
SCALE N/A
SIZE A
147
2
