RT SMA Male Right Angle Connector Crimp/Solder
Attachment For RG55, RG141, RG142, RG223, RG400
TECHNICAL DATA SHEET
PE44186
RT SMA Male Right Angle Connector Crimp/Solder Attachment For RG55, RG141, RG142, RG223, RG400
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
SMA Male Reverse Thread
MIL-C-39012
RG55,RG141,RG142,RG223,RG400
Crimp/Solder
Right Angle
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
-65 to +165
0.925 [23.5]
0.312 [7.92]
0.615 [15.62]
0.013 [5.9]
SMA Male Reverse Thread
Gold
MIL-G-45204
Brass, Nickel
5/16
5 [0.57]
Brass, Nickel
Teflon
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
RT SMA Male Right Angle Connector Crimp/Solder Attachment For RG55, RG141, RG142,
RG223, RG400 PE44186
PE44186 REV
1
RT SMA Male Right Angle Connector Crimp/Solder
Attachment For RG55, RG141, RG142, RG223, RG400
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE44186
RT SMA Male Right Angle Connector Crimp/Solder Attachment For RG55, RG141, RG142, RG223, RG400 from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain
a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
RT SMA Male Right Angle Connector Crimp/Solder Attachment For RG55, RG141, RG142,
RG223, RG400 PE44186
URL:
http://www.pasternack.com/sma-male-reverse-thread-rg55-rg141-rg142-rg223-rg400-connector-pe44186-p.aspx
PE44186 REV
2
© 2013 Pasternack Enterprises All Rights Reserved
PE44186

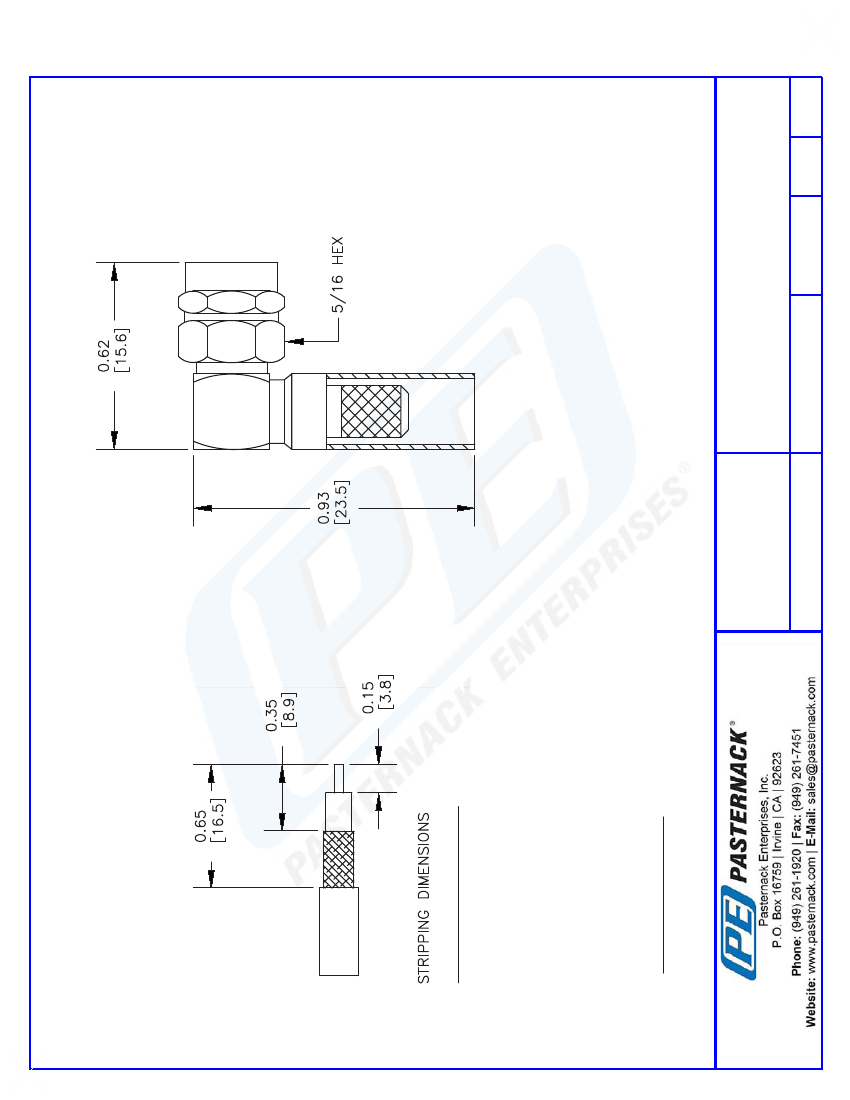

CAD Drawing
RT SMA Male Right Angle Connector Crimp/Solder Attachment
For RG55, RG141, RG142, RG223, RG400
PE44186 REV
ASSEMBLY PROCEDURES
1.
STRIP CABLE AS SHOWN. SLIDE FERRULE
OVER CABLE.
2.
INSERT CABLE INTO BODY OF CONNECTOR
AND SOFT SOLDER CENTER CONDUCTOR IN
PLACE. CENTER CONDUCTOR IN PLACE.
CAP DOWN.
3.
CRIMP FERRULE & PRESS
CRIMP SIZE REQUIRED
FERRULE: .213" HEX CRIMP TOOL
DWG TITLE
PE44186
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
070102
SCALE N/A
SIZE A
XXXX
3
