SMA Female Bulkhead Connector Solder Attachment 0.062 inch
End Launch PCB, .250 inch Diameter, .030 inch Diameter
TECHNICAL DATA SHEET
PE44212
SMA Female Bulkhead Connector Solder Attachment 0.062 inch End Launch PCB, .250 inch Diameter,
.030 inch Diameter
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
SMA Female
MIL-C-39012
0.062 inch End Launch
Solder
Straight
Bulkhead
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
DC to 18
50
335
1,000
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
-65 to +165
0.687 [17.45]
0.375 [9.53]
0.312 [7.92]
0.009 [4.08]
SMA Female
500
Beryllium Copper, Gold
MIL-G-45204, 30µ in. minimum
Brass, Gold
MIL-G-45204, 10µ in. minimum
PTFE
Weight, lbs [g]
Connector
Type
Mating Cycles
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Female Bulkhead Connector Solder Attachment 0.062 inch End Launch PCB, .250 inch
Diameter, .030 inch Diameter PE44212
PE44212 REV
1
SMA Female Bulkhead Connector Solder Attachment 0.062 inch
End Launch PCB, .250 inch Diameter, .030 inch Diameter
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE44212
SMA Female Bulkhead Connector Solder Attachment 0.062 inch End Launch PCB, .250 inch Diameter, .030 inch Diameter
from Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber
optic products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Female Bulkhead Connector Solder Attachment 0.062 inch End Launch PCB, .250 inch
Diameter, .030 inch Diameter PE44212
URL:
http://www.pasternack.com/sma-female-standard-0.062-end-launch-connector-pe44212-p.aspx
PE44212 REV
2
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE44212

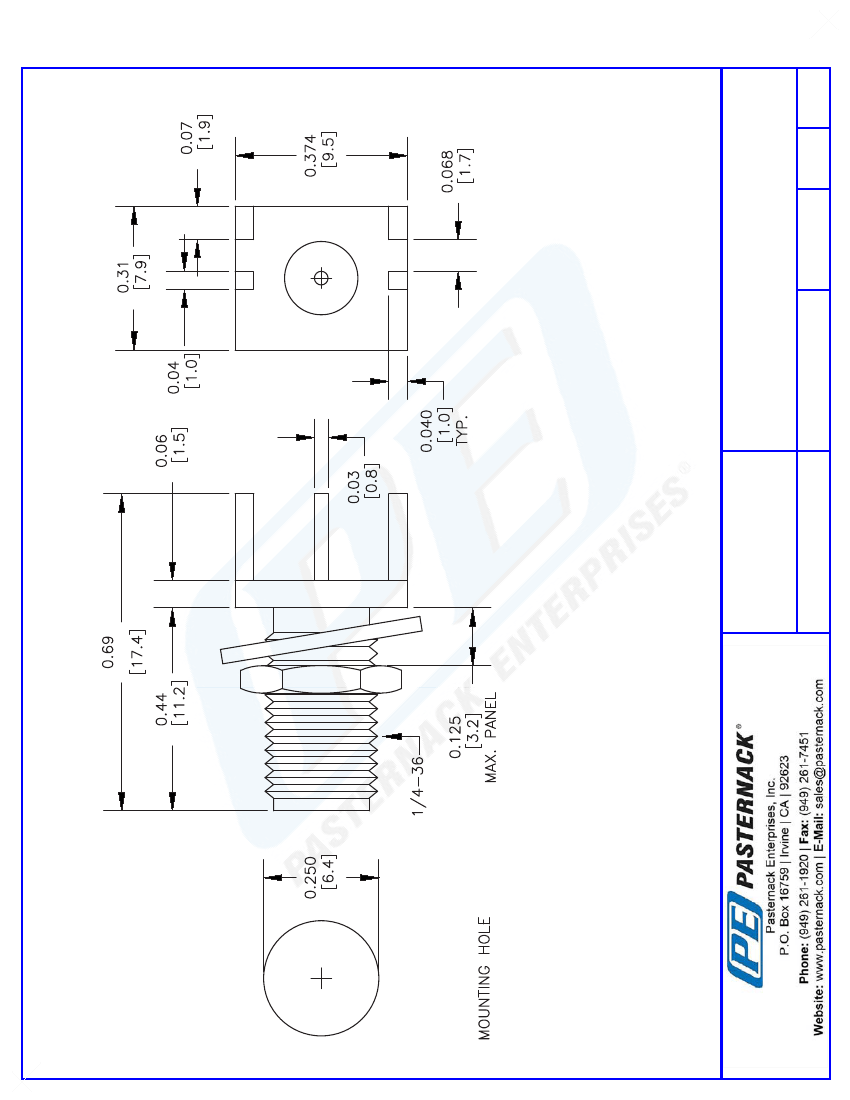

CAD Drawing
SMA Female Bulkhead Connector Solder Attachment 0.062 inch
End Launch PCB, .250 inch Diameter, .030 inch Diameter
PE44212 REV
PE44212
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
