2.4mm Female Connector Solder Attachment 4 Hole
Flange Tab Terminal, .340 inch Hole Spacing
TECHNICAL DATA SHEET
PE44226
2.4mm Female Connector Solder Attachment 4 Hole Flange Tab Terminal, .340 inch Hole Spacing
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
2.4mm Female
Tab
Solder
Straight
4 Hole Flange
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
0.58 [14.73]
0.5 [12.70]
0.5 [12.7]
0.013 [5.9]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Body Material and Plating
Dielectric Type
2.4mm Female
Gold
Passivated Stainless Steel
PPO
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
2.4mm Female Connector Solder Attachment 4 Hole Flange Tab Terminal, .340 inch Hole Spacing from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
2.4mm Female Connector Solder Attachment 4 Hole Flange Tab Terminal, .340 inch Hole Spacing
PE44226
URL:
http://www.pasternack.com/2.4mm-female-standard-tab-terminal-connector-pe44226-p.aspx
PE44226 REV 01
1
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE44226

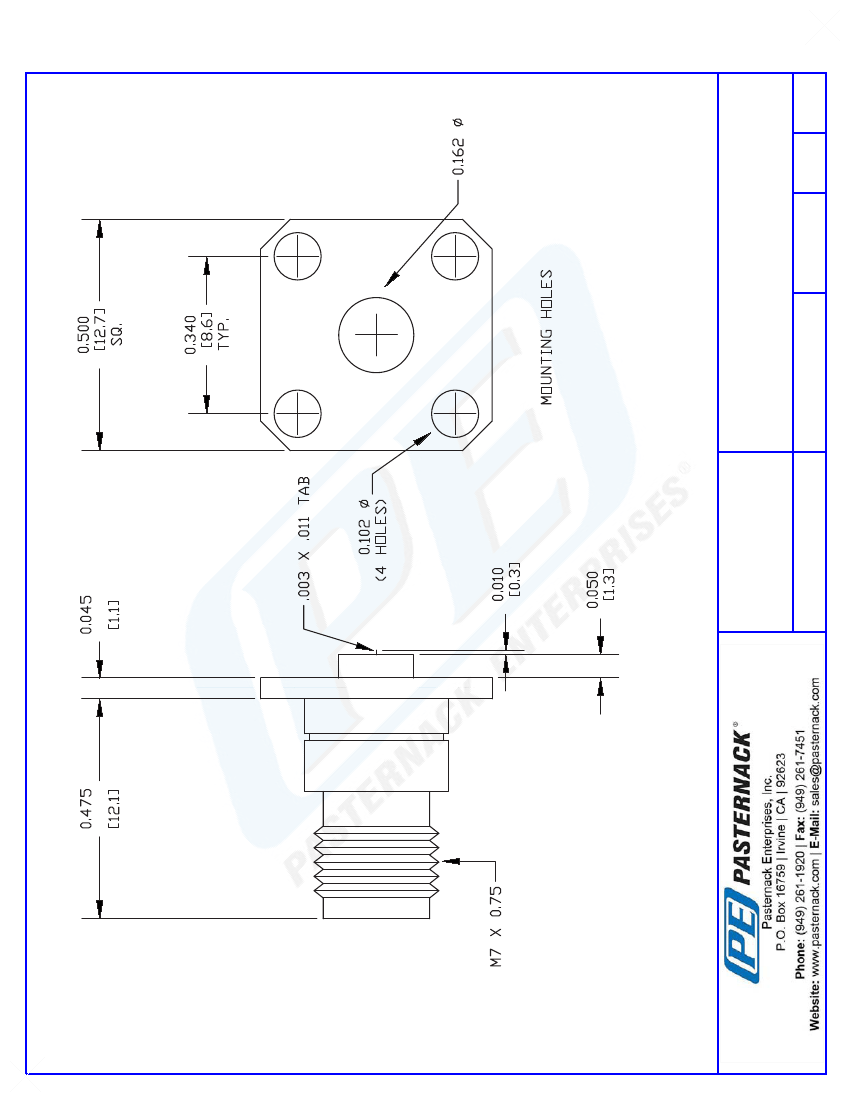

CAD Drawing
2.4mm Female Connector Solder Attachment 4 Hole
Flange Tab Terminal, .340 inch Hole Spacing
PE44226 REV 01
PE44226
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
070202
SCALE N/A
SIZE A
127
2
