2.92mm Male Threaded Connector Field
Replaceable Attachment 0.012 inch Pin
TECHNICAL DATA SHEET
2.92mm Male Threaded Connector Field Replaceable Attachment 0.012 inch Pin
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
2.92mm Male
0.012 inch Pin
Field Replaceable
Straight
Threaded
PE44234
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
0.625 [15.88]
0.312 [7.92]
0.009 [4.08]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Dielectric Type
2.92mm Male
Gold
Passivated Stainless Steel
5/16
8 [0.9]
Passivated Stainless Steel
PPO
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
2.92mm Male Threaded Connector Field Replaceable Attachment 0.012 inch Pin from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
2.92mm Male Threaded Connector Field Replaceable Attachment 0.012 inch Pin PE44234
URL:
http://www.pasternack.com/2.92mm-male-standard-0.012-pin-connector-pe44234-p.aspx
PE44234 REV 01
1
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE44234

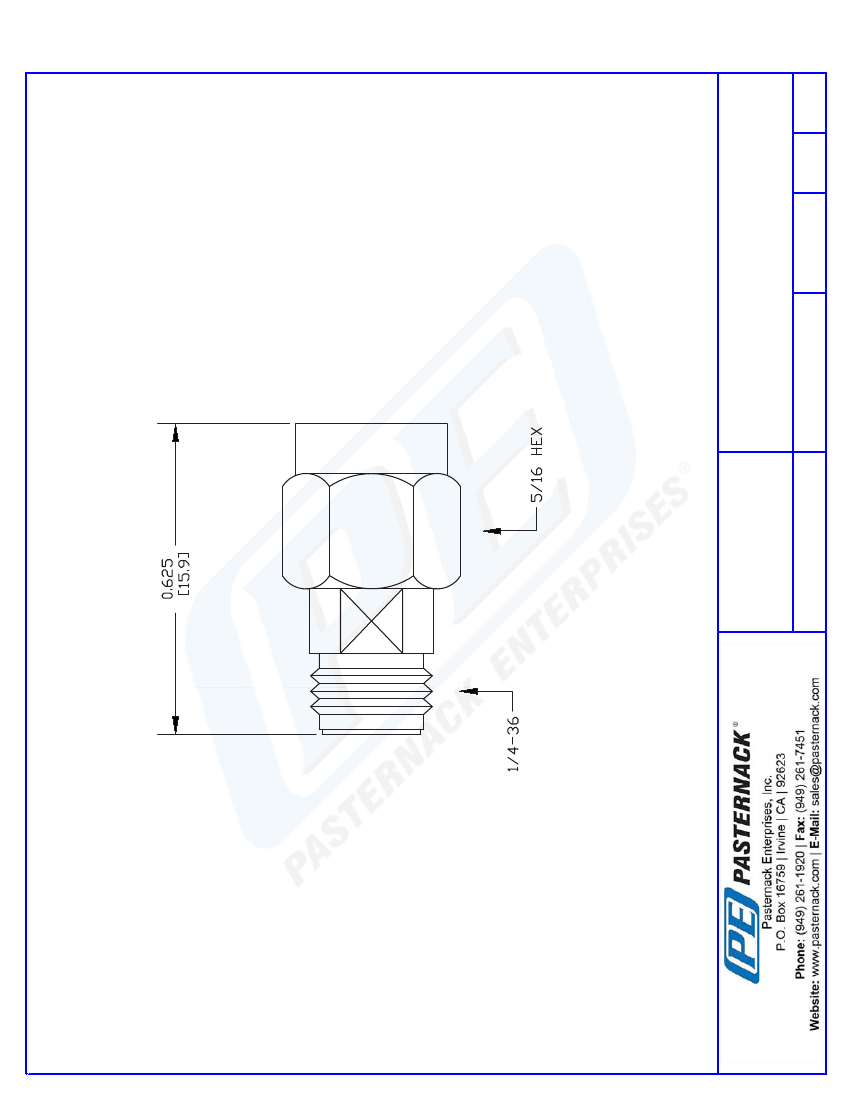

CAD Drawing
2.92mm Male Threaded Connector Field Replaceable Attachment 0.012 inch Pin
PE44234 REV 01
PE44234
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
071202
SCALE N/A
SIZE A
127
2
