1.0/2.3 Plug Connector Crimp/Solder Attachment For RG58
TECHNICAL DATA SHEET
1.0/2.3 Plug Connector Crimp/Solder Attachment For RG58
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
1.0/2.3 Plug
RG58
Crimp/Solder
Straight
PE44243
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
DC to 4
50
1.3:1
250
750
Mechanical Specifications
Temperature
Operating Range, deg C

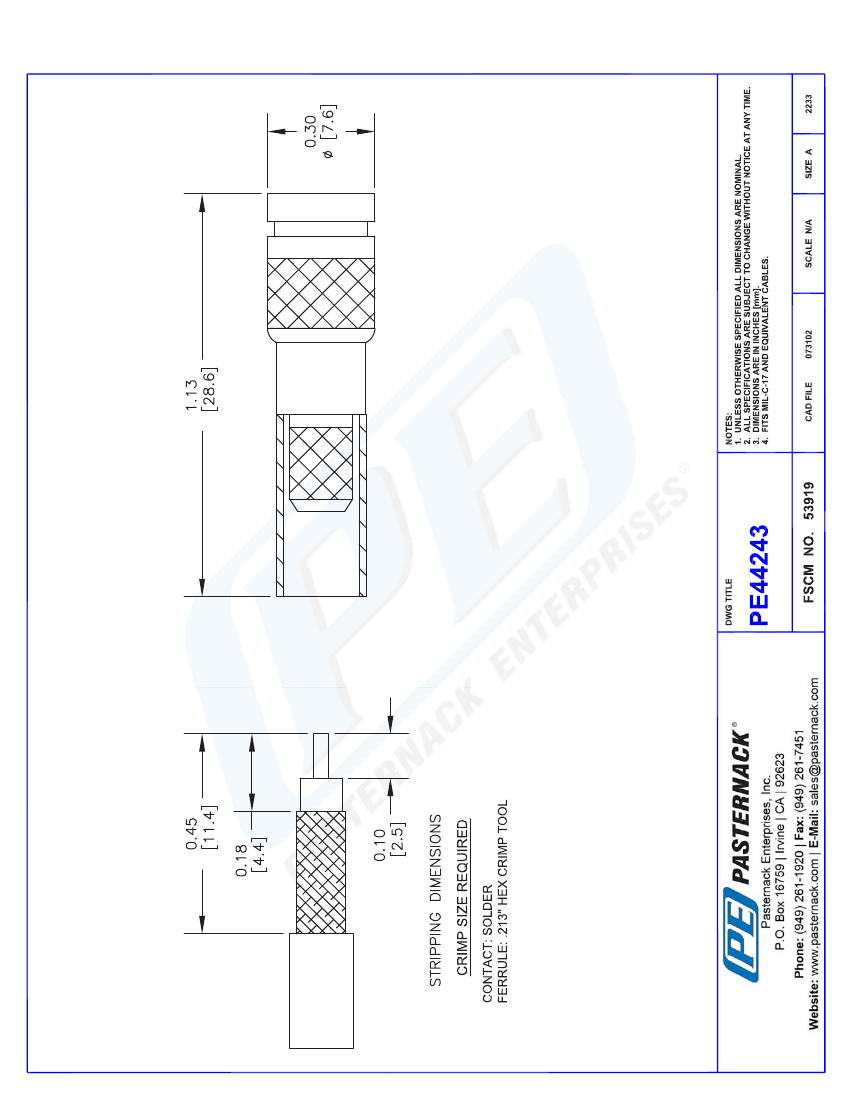

Size
Length, in [mm]
Width/Dia., in [mm]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
-40 to +155
1.122 [28.5]
0.303 [8]
0.013 [5.9]
1.0/2.3 Plug
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/1.0-2.3-plug-standard-rg58-connector-pe44243-p.aspx
1.0/2.3 Plug Connector Crimp/Solder Attachment For RG58 from Pasternack Enterprises has same day shipment for domestic
and International orders. We maintain 99% availability of the industry’s broadest selection of RF, microwave and fiber optic
products.
PE44243 REV
1
