75 Ohm 1.6/5.6 Jack Right Angle Connector Solder Attachment
Thru Hole PCB, .200 inch x .052 inch Hole Spacing
TECHNICAL DATA SHEET
PE44271
75 Ohm 1.6/5.6 Jack Right Angle Connector Solder Attachment Thru Hole PCB, .200 inch x .052 inch
Hole Spacing
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
1.6/5.6 Jack
Thru Hole
Solder
Right Angle
Electrical Specifications
Impedance, Ohms
75
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
0.819 [20.8]
0.374 [9.50]
0.553 [14.05]
0.013 [5.9]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
1.6/5.6 Jack
Beryllium Copper, Gold
3µ in. minimum
Brass, Gold
3µ in. minimum
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
75 Ohm 1.6/5.6 Jack Right Angle Connector Solder Attachment Thru Hole PCB, .200 inch x
.052 inch Hole Spacing PE44271
PE44271 REV 01
1
75 Ohm 1.6/5.6 Jack Right Angle Connector Solder Attachment
Thru Hole PCB, .200 inch x .052 inch Hole Spacing
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE44271
75 Ohm 1.6/5.6 Jack Right Angle Connector Solder Attachment Thru Hole PCB, .200 inch x .052 inch Hole Spacing from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic
products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
75 Ohm 1.6/5.6 Jack Right Angle Connector Solder Attachment Thru Hole PCB, .200 inch x .052
inch Hole Spacing PE44271
URL:
http://www.pasternack.com/1.6-5.6-jack-standard-thru-hole-pcb-connector-pe44271-p.aspx
PE44271 REV 01
2
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE44271

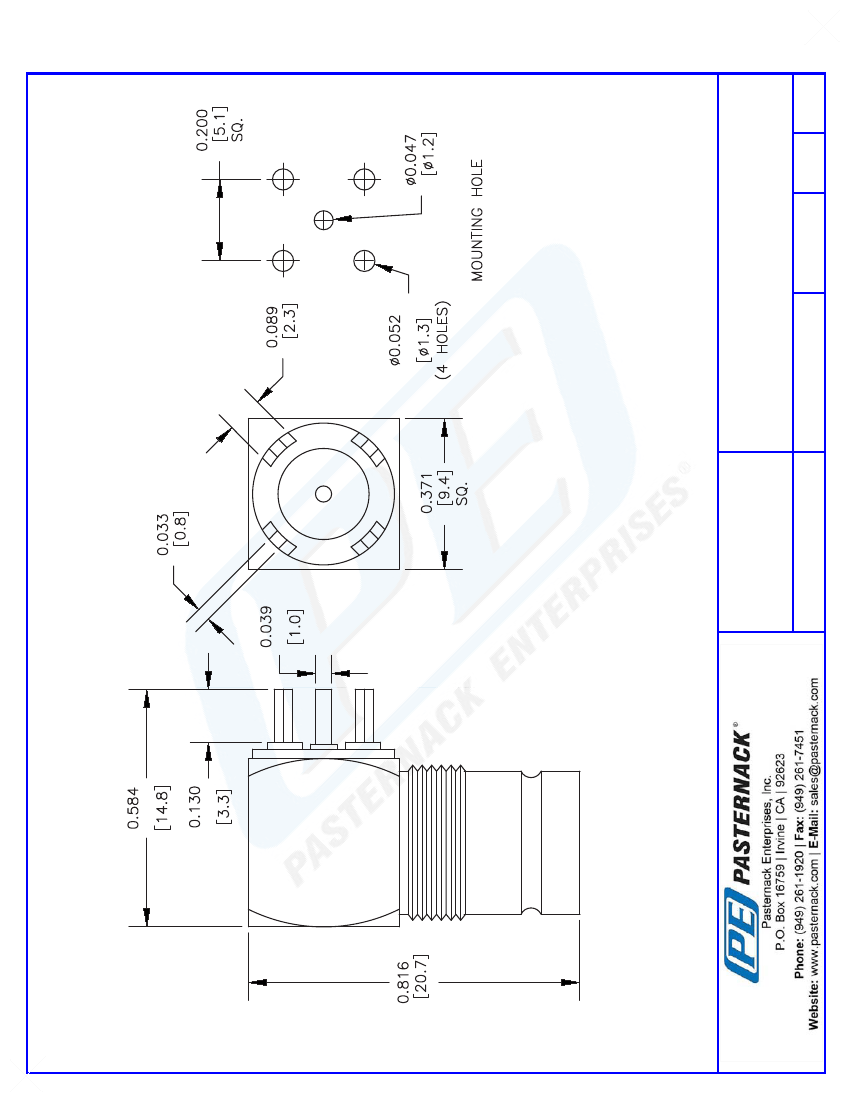

CAD Drawing
75 Ohm 1.6/5.6 Jack Right Angle Connector Solder Attachment
Thru Hole PCB, .200 inch x .052 inch Hole Spacing
PE44271 REV 01
PE44271
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
070202
SCALE N/A
SIZE A
127
3
