7/16 DIN Male Connector Clamp/Solder Attachment For RG218
TECHNICAL DATA SHEET
7/16 DIN Male Connector Clamp/Solder Attachment For RG218
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
7/16 DIN Male
RG218
Clamp/Solder
Straight
PE44277
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
2.675 [67.95]
1.312 [33]
0.577 [261.72]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Coupling Nut Material and Plating
Hex Size, in
Torque, in-lbs [Nm]
Body Material and Plating
Dielectric Type
7/16 DIN Male
Silver
Brass, Nickel
1 1/4
18 [2.03]
Brass, Nickel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
7/16 DIN Male Connector Clamp/Solder Attachment For RG218 from Pasternack Enterprises has same day shipment for
domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the
broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
7/16 DIN Male Connector Clamp/Solder Attachment For RG218 PE44277
URL:
http://www.pasternack.com/7-16-male-standard-rg218-connector-pe44277-p.aspx
PE44277 REV
1
ASSEMBLY PROCEDURES
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
1.
SLIDE CLAMP NUT (1) & GASKET (2) OVER CABLE. STRIP CABLE
AS SHOWN. DO NOT NICK BRAID WHILE CUTTING JACKET.
COMB OUT BRAID. TAPER END OF BRAID TO PERMIT ASSEMBLY
OF THE BRAID CLAMP (3). SLIDE BRAID CLAMP (3) OVER BRAID
& AGAINST CABLE
PE44277

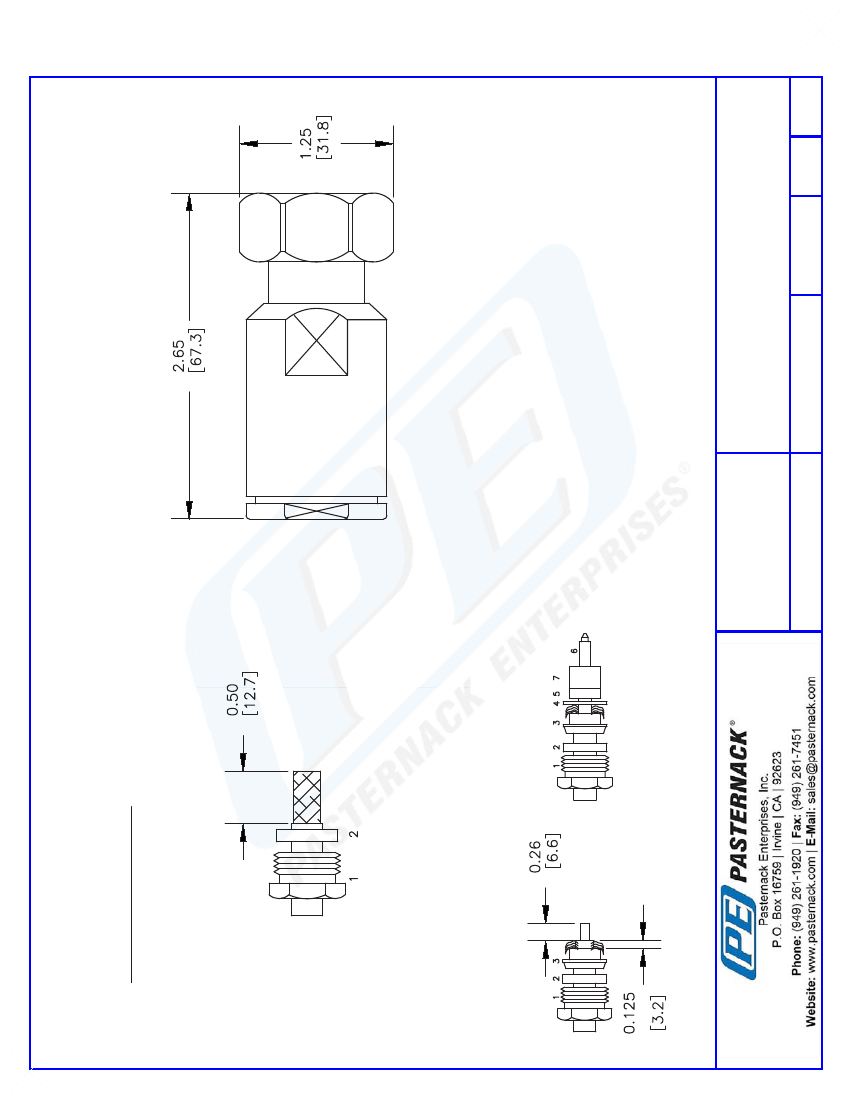

CAD Drawing
7/16 DIN Male Connector Clamp/Solder Attachment For RG218
PE44277 REV
2.
FORM BRAID OVER CLAMP NUT (3). CUT DIELECTRIC & CENTER
CONDUCTOR TO DIMENSION SHOWN. SLIDE WASHER (4) &
REAR INSULATOR (5) OVER. DIELECTRIC. SOLDER CONTACT (6)
TO CENTER CONDUCTOR. SLIDE FRONT INSULATOR (7) OVER
CONTACT. INSERT CABLE ASSEMBLY INTO BODY & TIGHTEN.
PE44277
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
070202
SCALE N/A
SIZE A
2233
2
