7/16 DIN Male Right Angle Connector Clamp/Solder
Attachment For RG213, RG214, RG8, RG9, RG225, RG393
TECHNICAL DATA SHEET
PE44280
7/16 DIN Male Right Angle Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG225,
RG393
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
7/16 DIN Male
RG213,RG214,RG8,RG9,RG225,RG393
Clamp/Solder
Right Angle
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
1.875 [47.63]
1.25 [32]
1.84 [46.74]
0.385 [174.63]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Coupling Nut Material and Plating
Hex Size, in
Torque, in-lbs [Nm]
Body Material and Plating
Dielectric Type
7/16 DIN Male
Silver
Brass, Nickel
1 1/4
18 [2.03]
Brass, Nickel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
7/16 DIN Male Right Angle Connector Clamp/Solder Attachment For RG213, RG214, RG8,
RG9, RG225, RG393 PE44280
PE44280 REV
1
7/16 DIN Male Right Angle Connector Clamp/Solder
Attachment For RG213, RG214, RG8, RG9, RG225, RG393
TECHNICAL DATA SHEET
PE44280
7/16 DIN Male Right Angle Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG225, RG393 from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic
products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
7/16 DIN Male Right Angle Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9,
RG225, RG393 PE44280
URL:
http://www.pasternack.com/7-16-male-standard-rg213-rg214-rg8-rg9-rg225-rg393-connector-pe44280-p.aspx
PE44280 REV
2
ASSEMBLY PROCEDURES
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
1. SLIDE CLAMP NUT (1), WASHER (2) & GASKET (3)
OVER CABLE. STRIP CABLE AS SHOWN IN A. DO NOT
NICK BRAID WHILE CUTTING JACKET. TAPER END OF
BRAID TO PERMIT ASSEMBLY OF BRAID CLAMP (4).
SLIDE BRAID CLAMP (4) OVER BRAID & SEAT AGAINST
CABLE. CUT BRAID TO DIMENSION SHOWN IN B.
PE44280

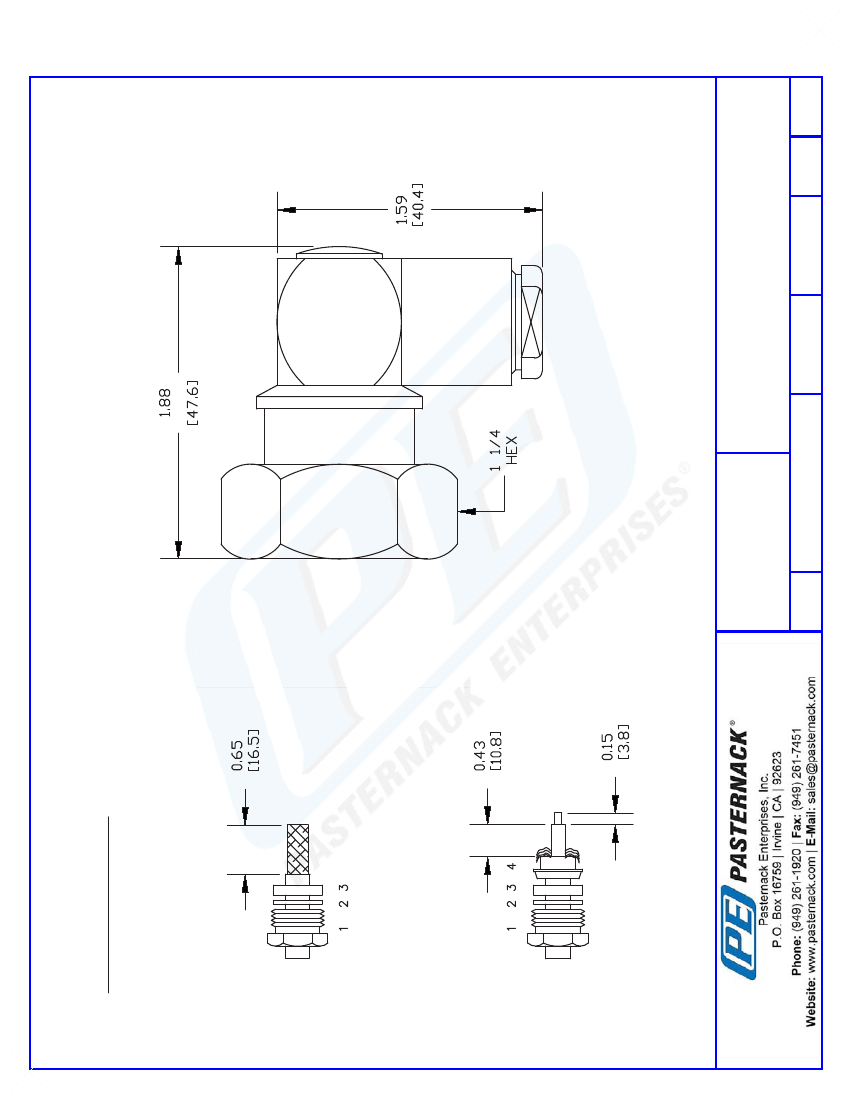

CAD Drawing
7/16 DIN Male Right Angle Connector Clamp/Solder Attachment
For RG213, RG214, RG8, RG9, RG225, RG393
PE44280 REV
2. FORM BRAID OVER CLAMP NUT (4).TRIM BRAID BACK
TO SHOULDER. CUT DIELECTRIC & CENTER
CONDUCTOR TO DIMENSION SHOWN. DO NOT NICK
CENTER CONDUCTOR. TIN CENTER CONDUCTOR
SLIDE ASSEMBLY INTO BODY, SOLDER CENTER
CONDUCTOR IN PLACE, TIGHTEN CLAMP NUT &
SCREW CAP
PE44280
REV. -
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
FSCM NO. 53919
CAD FILE
012004
SCALE N/A
SIZE A
127
3
