PE44299 Overview

75 Ohm MCX Plug Right Angle Connector Crimp/Solder Attachment For RG179, RG187

75 Ohm MCX Plug Right Angle Connector Crimp/
Solder Attachment For RG179, RG187
TECHNICAL DATA SHEET
75 Ohm MCX Plug Right Angle Connector Crimp/Solder Attachment For RG179, RG187
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
MCX Plug
MIL-C-39012
RG179,RG187
Crimp/Solder
Right Angle
PE44299
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
Frequency 1
Frequency, MHz
VSWR
Insertion Loss, dB
DC to 6
75
1.31:1
335
1,000
DC to 1,000
1.11:1
0.2

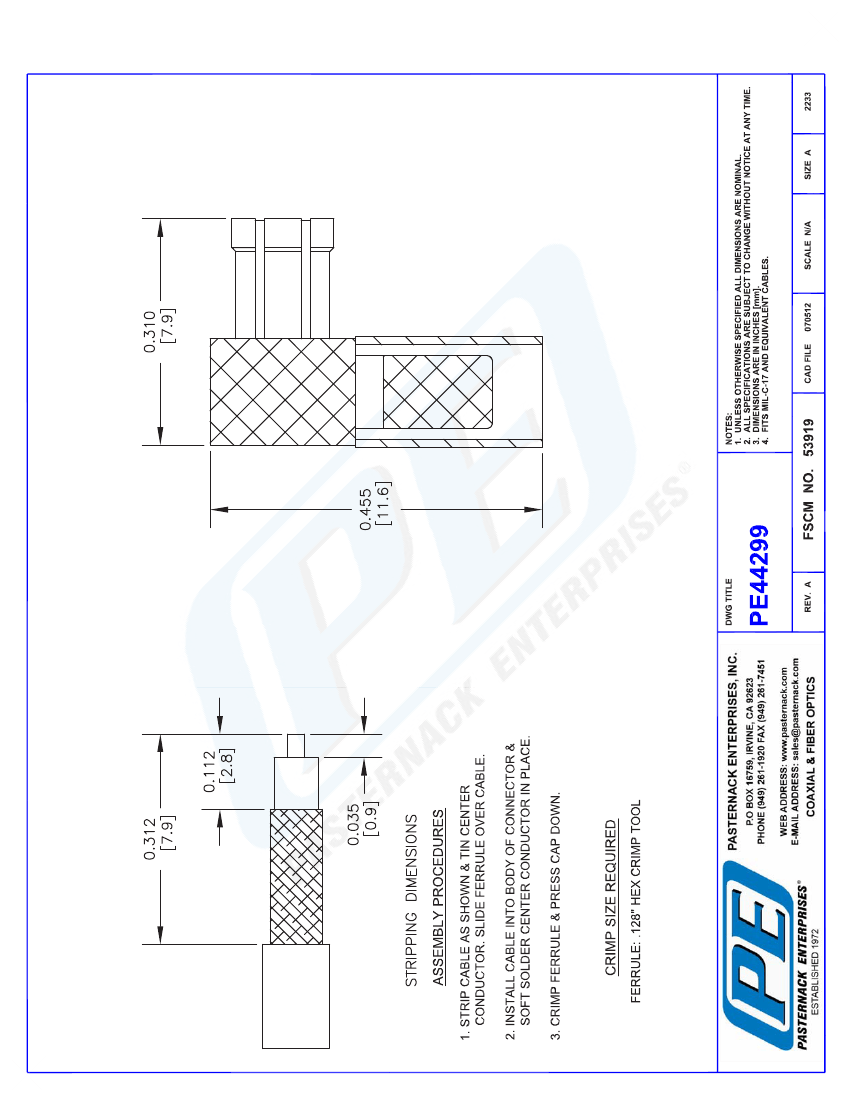

Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
-65 to +165
0.455 [11.56]
0.24 [6]
0.31 [7.87]
0.004 [1.81]
MCX Plug
500
Beryllium Copper, Gold
3µ in. minimum
Brass, Gold
1µ in. minimum
Teflon
Weight, lbs [g]
Connector
Type
Mating Cycles
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information includ-
ing price, inventory and certifications:
75 Ohm MCX Plug Right Angle Connector Crimp/Solder Attachment For RG179,
RG187 PE44299
PE44299 REV
1
