CV210-1
Cellular-band Dual-Branch Downconverter
The Communications Edge
TM
Preliminary Information
Product Features
•
High dynamic range downconverter
with integrated LO driver and IF
amplifiers
•
Dual channels for diversity
•
+27 dBm Input IP3
•
+12 dBm Input P1dB
•
11.5 dB Noise Figure
•
RF: 806 - 915 MHz
•
IF: 70 - 120 MHz
•
Low-side LO downconverter
•
Single supply operation (+5 V)
•
6 x 6 mm QFN SMT package
CV
Product Description
The CV210-1 is a dual-channel high-linearity
downconverter
designed
to
meet
the
performance, functionality, and cost goals of
current and next generation mobile infrastructure
basestations.
It is ideally suited for high dynamic range
receiver front ends using diversity receive
channels. The module is implemented in reliable
GaAs MESFET technology and requires only a
small 6x6 mm footprint.
Typical
applications
include
frequency
downconversion used in CDMA/GSM/TDMA,
CDMA2000, W-CDMA, and EDGE 2.5G and
3G mobile base transceiver stations.
Functional Diagram
27
25
23
1
8
IF
IF amp
+
Vcc
21
RF
LO driver amp
RF
7
17
IF amp
IF
9
11
13
Top View
Actual Size
Specifications
1
Parameters
RF Frequency Range
LO Frequency Range
IF Frequency Range
IF Bandwidth
SSB Conversion Gain
Input IP3
Input IP2
Input 1 dB Compression Point
Noise Figure
LO Input Drive Level
LO-RF Isolation
LO-IF Isolation
Branch-Branch Isolation
Return Loss: RF Port
Return Loss: LO Port
Return Loss: IF Port
Operating Supply Voltage
Supply Current
1
Units
MHz
MHz
MHz
%
dB
dBm
dBm
dBm
dB
dBm
dB
dB
dB
dB
dB
dB
V
mA
Minimum
806
730
70
8
Typical
Maximum
915
795
120
Comments
-2.5
+4.75
20
10
+27
+32
+12
11.5
0
9
30
35
14
14
14
+5
380
12
∆f
= 1 MHz @ RF
in
= 0 dBm / tone
12.5
+2.5
P
LO
= 0 dBm
P
LO
= 0 dBm
+5.25
460
Specifications when using application specific circuit with a low side LO = 0 dBm in a downconverting application at 25°C.
Absolute Maximum Rating
2
Parameters
Operating Case Temperature
Storage Temperature
Maximum Junction Temperature
2
Ordering Information
Part No.
CV210-1
Rating
-40° to +85
°C
-65° to +100 °C
+150 °C
Description
Cellular-band Dual-Branch Downconverter
Operation of this device above any of these parameters may cause permanent damage.
This document contains information on a new product.
Specifications and information are subject to change without notice
WJ Communications, Inc
•
Phone 1-800-WJ1-4401
•
FAX: 408-577-6620
•
e-mail: sales@wj.com
•
Web site: www.wj.com
May 2002
CV210-1
Cellular-band Dual-Branch Downconverter
The Communications Edge
TM
Preliminary Information

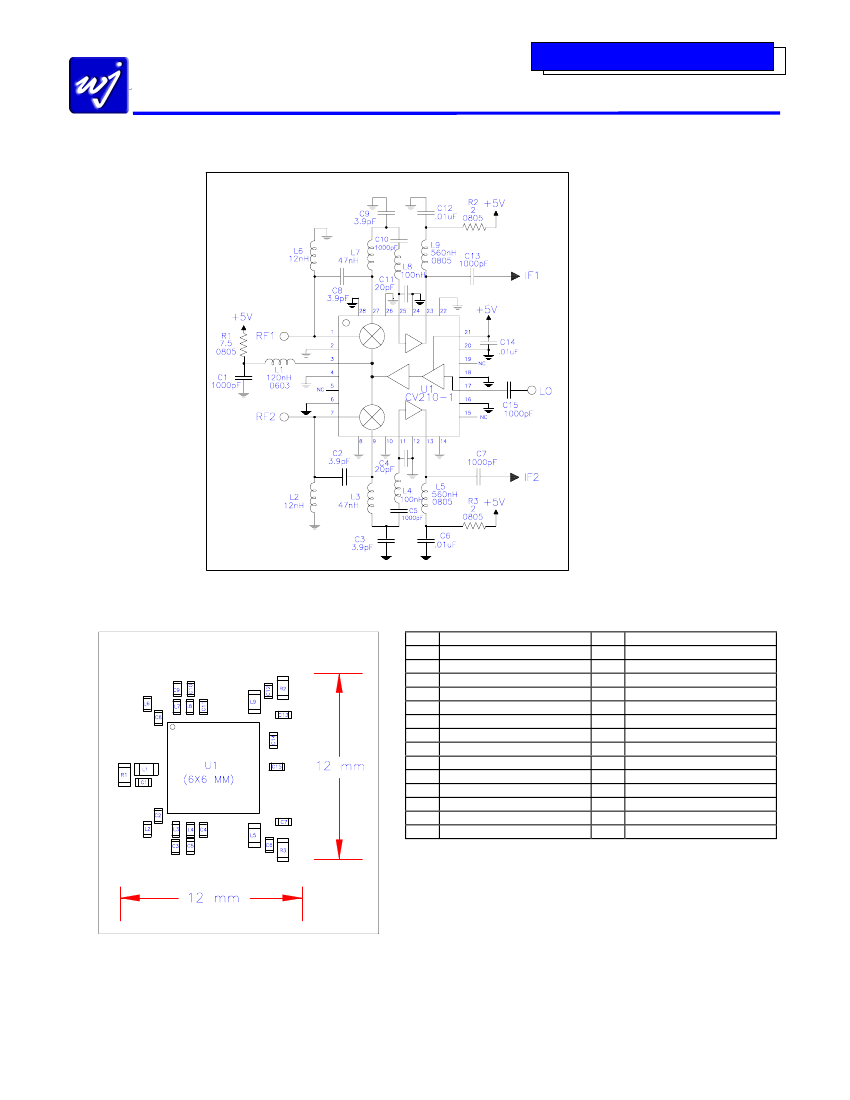

Application Circuit
Note:
All components are of size 0603
or 0402 unless otherwise noted.
Assembly Layout
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Functional Pin Layout
FUNCTION
Channel 1 RF Input
GND
+5 V
GND
N/C
GND
Channel 2 RF Input
GND
Channel 2 IF Mixer Output
GND
Channel 2 IF Amp Input
GND
Channel 2 IF Amp Output / +5 V
GND
Pin
15
16
17
18
19
20
21
22
23
24
25
26
27
28
FUNCTION
N/C
GND
LO input
GND
N/C
GND
+5 V
GND
Channel 1 IF Amp Output / +5 V
GND
Channel 1 IF Amp Input
GND
Channel 1 IF Mixer Output
GND
This document contains information on a new product.
Specifications and information are subject to change without notice
WJ Communications, Inc
•
Phone 1-800-WJ1-4401
•
FAX: 408-577-6620
•
e-mail: sales@wj.com
•
Web site: www.wj.com
May 2002
