TX9032NL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> TX9032NL

TX9032NL: DescriptionTelecom Transformer, ROHS COMPLIANT; CategoryPower management transformer; File Size168KB，2 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

TX9032NL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TX9032NL	-	-	View	Buy Now

TX9032NL Overview

Telecom Transformer, ROHS COMPLIANT

TX9032NL Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HEIGHT DIMENSION INCLUDES TERMINAL ALSO; TURNS RATIO: 1CT:1; 1:1CT
Certification	UL
high	7.75 mm
length	31.88 mm
Manufacturer's serial number	TX9032NL
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TUBE
physical size	L31.88XB21.64XH7.75 (mm)
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	21.64 mm

Preview

Download Datasheet

View All

T1/CEPT/ISDN-PRI TRANSFORMER

Quad Port SMT Transformer Module

with Line Side Protection

RoHS peak reflow temperature rating 245°C

Four transmit and four receive transformers, and line

side protection circuit in a surface mount package

Extended temperature range

Patented “Interlock Base” construction for high-reliability

IC grade transfer-molded package

Minimum isolation voltage: 1500 Vrms

UL recognized

Electrical Specifications @ 25°C — Operating Temperature -40°C to +85°C

RoHS-6

Compliant

Part Number

TX9032NL

TX9033NL

Turns Ratio

(Pri:Sec ±2%)

Transmit

1CT:1

1CT:1.14

Receive

1:1CT

1.14CT:1

OCL

Line Side

(mH MIN)

1.2

(pF MAX)

35 & 35

(µH MAX)

.80 & .80

1.0 & 1.0

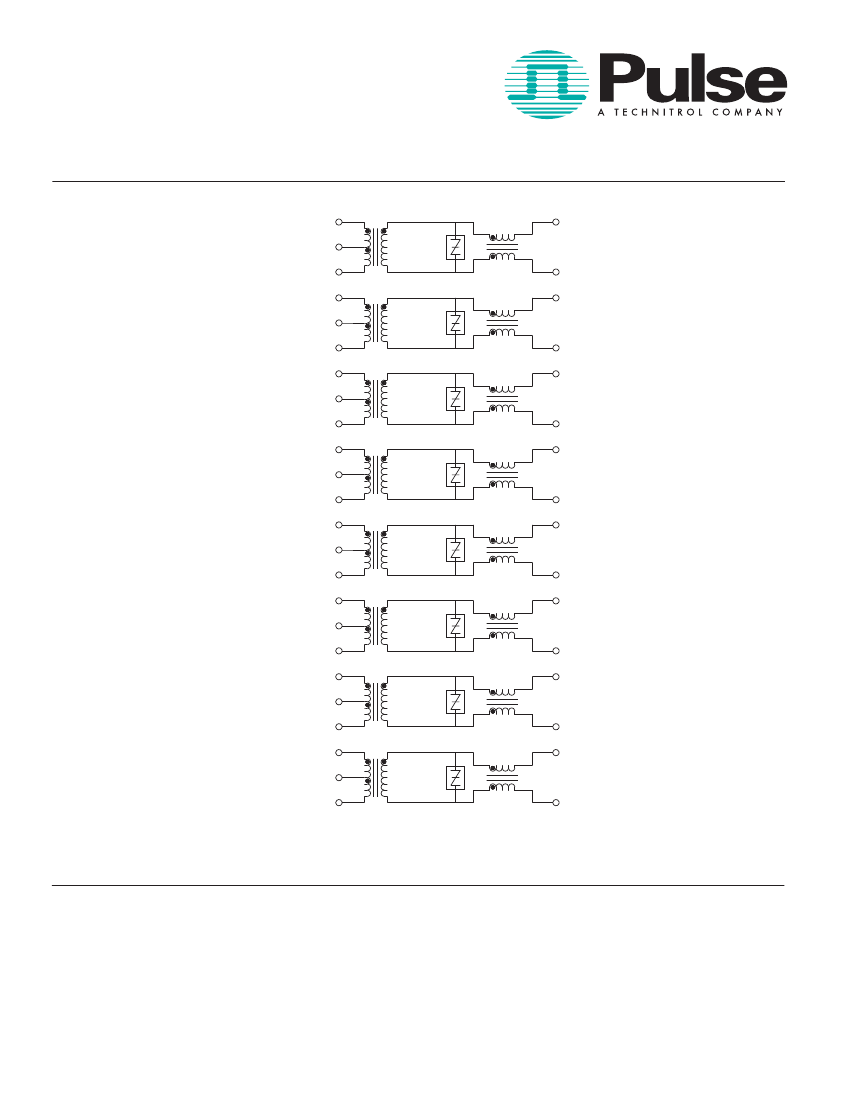

Package/

Schematic

BRT

Primary Pins

Transmit

4-6, 10-12,

16-18, 22-24

4-6, 10-12,

16-18, 22-24

Receive

48-46, 42-40,

36-34, 30-28

48-46, 42-40,

36-34, 30-28

NOTE:

When ordering Tape & Reel packaging, add a “T” suffix to the part number (ex: TX9032NLT).

Mechanical

BRT

Weight

............... 9.2 grams

Tape & Reel

.......... 150/reel

Tube

...................... 15/tube

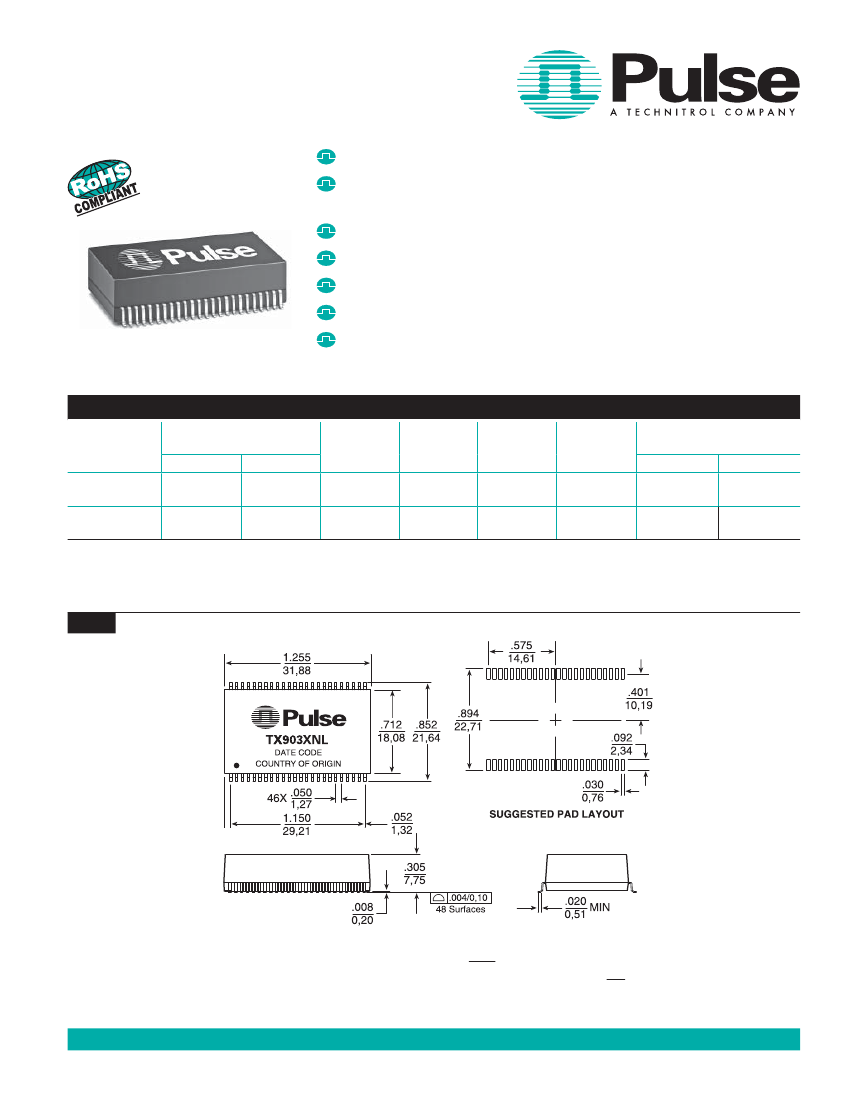

Dimensions:

Inches

Unless otherwise specified, all tolerances are ± .010

0,25

USA 858 674 8100 • Germany 49 7032 7806 0 • Singapore 65 6287 8998 • Shanghai 86 21 32181071 • China 86 755 33966678 • Taiwan 886 3 4643715

www.pulseeng.com

T680.B (7/09)
