WTDVA30PJTC

Description
Board Connector, 30 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, Crimp Terminal, Locking, Plug
CategoryThe connector    The connector
File Size589KB,2 Pages
ManufacturerAirBorn
Download Datasheet Parametric View All

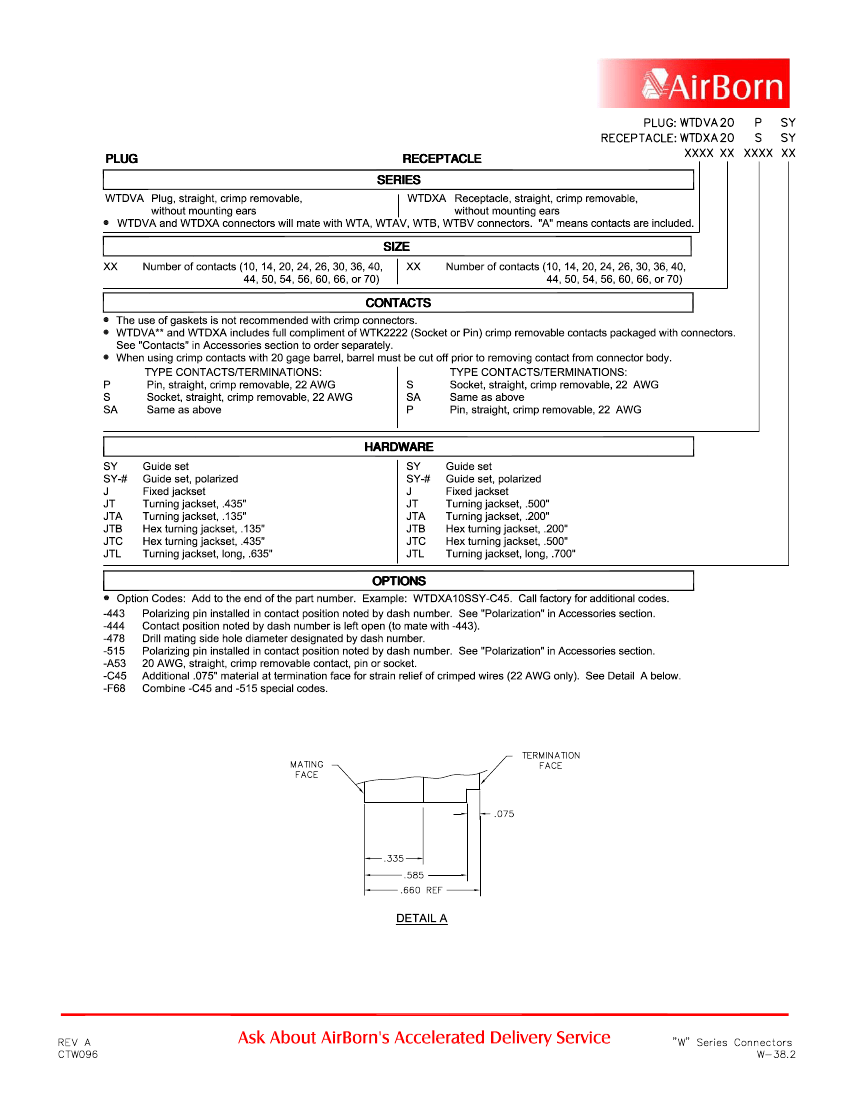

WTDVA30PJTC Overview

Board Connector, 30 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, Crimp Terminal, Locking, Plug

WTDVA30PJTC Parametric

Parameter NameAttribute value
MakerAirBorn
Reach Compliance Codecompliant

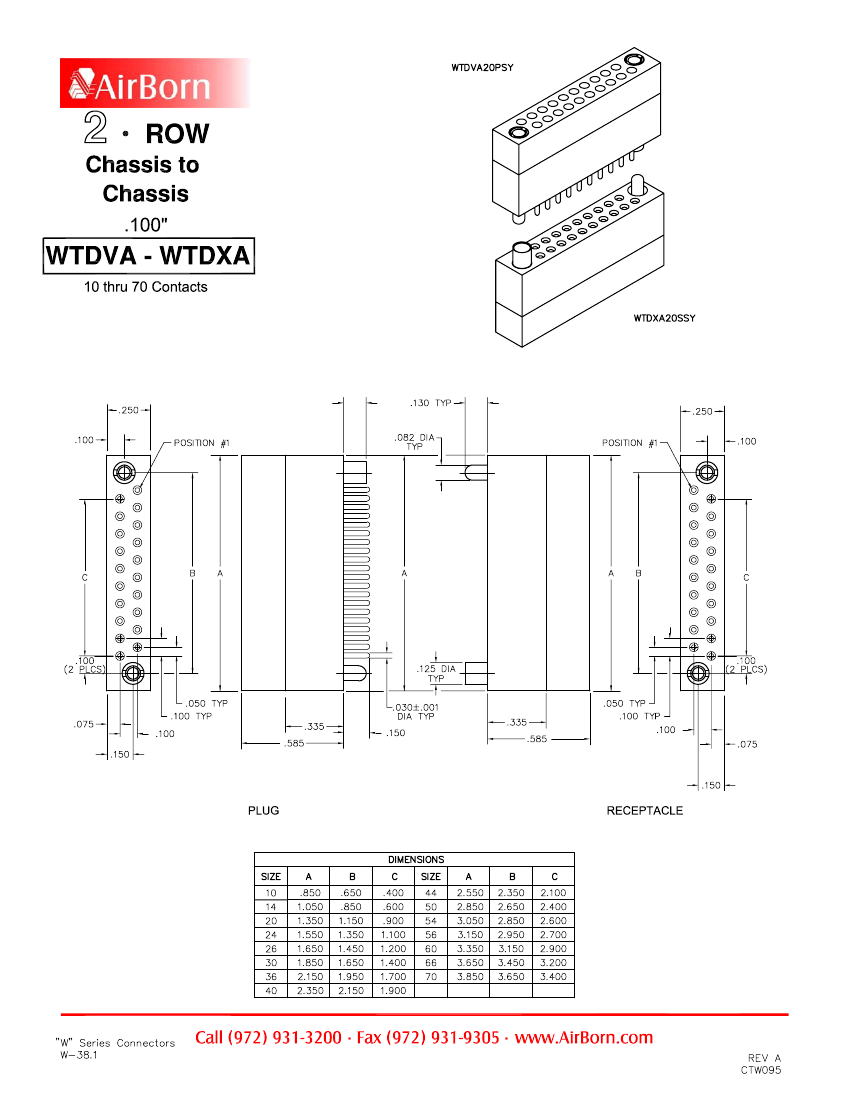

body width0.25 inch
subject depth0.585 inch
body length1.85 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contactor designPREASSEM CONN
Contact to complete cooperationAU
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeSTAGGERED
Contact resistance5 mΩ
Contact styleRND PIN-SKT
Durability500 Cycles
Insulation resistance5000000000 Ω
insulator materialGLASS FILLED POLYPHENYLENE SULPHIDE
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation option 1LOCKING
Installation typeCABLE
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
Rated current (signal)5 A
reliabilityCOMMERCIAL
Termination typeCRIMP
Total number of contacts30
Maximum wire diameter22 AWG
Minimum wire diameter22 AWG
