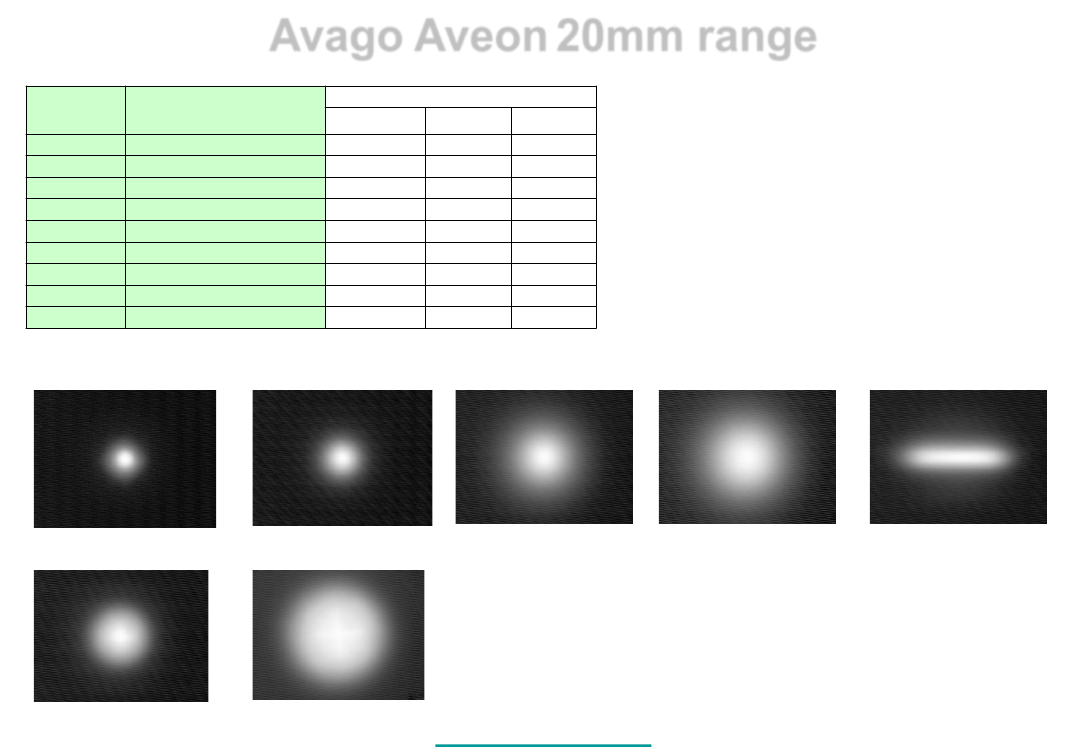

Avago Aveon 20mm range
White
Part No.
10199
10200
10210
10201
10211
10202
10203
10204
10357
Description
Plain Tight
Frosted Narrow
Ripple Medium
Medium Frosted
Ripple Wide
Wide Frosted
Elliptical
Elliptical Orthogonal*
wide angle reflector
FWHM
#
9.25*9.07
12.98*12.64
22.16*21.37
21.86*21.67
45.21*45.26
31.51*31.17
47.99*9.54
47.45*10.01
EFF
85.9%
83.2%
85.9%
79.9%
83.4%
79.0%
83.1%
81.8%
Cd/lm
19.76
11.33
5.79
3.98
1.68
2.46
4.58
4.47
*Orthogonal is the elliptical beam turned through 90deg.
#Full Width Half Maximum i.e. total viewing angle
Base of lens to PCB height is 3.6mm
10199
10200
10201
10202
10203 & 10204
10210
10211
www.carclo-optics.com
Avago Aveon

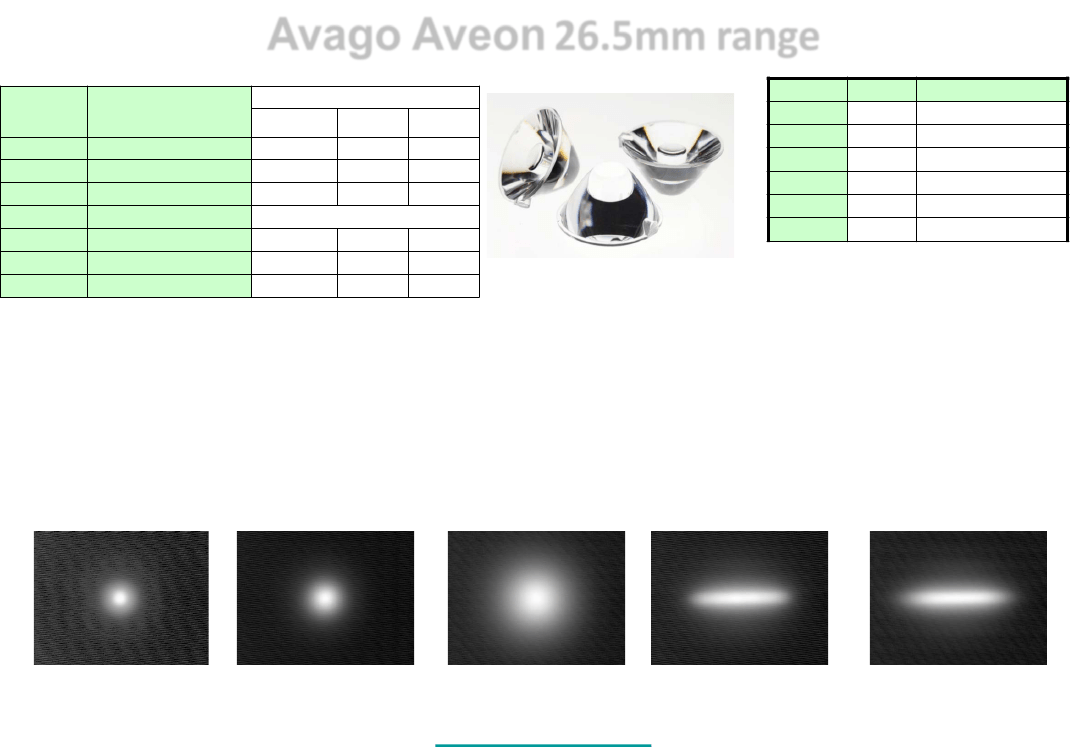

26.5mm range
White
Part No.
10048
10124
10108
10260
10049
10224
10234
Description
Plain Tight
Frosted Narrow
Medium Frosted
Frosted Wide
Elliptical
Elliptical Orthogonal*
Elliptical Ramp Optic
FWHM
#
6.91*6.89
11.27*10.94
22.32*21.97
EFF
84.9%
81.8%
78.7%
Cd/lm
25.65
13.79
3.92
Part No.
10449
10459
10469
10479
10489
10499
Colour
White
White
White
Black
Black
Black
Description
4.3mm foot (not Stocked)
2.0mm foot (Not Stocked)
0.8mm foot (Stocked)
4.3mm foot (Not Stocked)
2.0mm foot (Not Stocked)
0.8mm foot (Not Stocked)
Optic will not fit LED
80.3%
44.01*8.14
5.80
80.8%
48.25*8.14
5.35
45.61*7.83
80.0%
5.57
*Orthogonal is the elliptical beam turned through 90deg.
# Full Width Half Maximum i.e. total viewing angle
10048
10124
10108
10049 & 10224
10234
