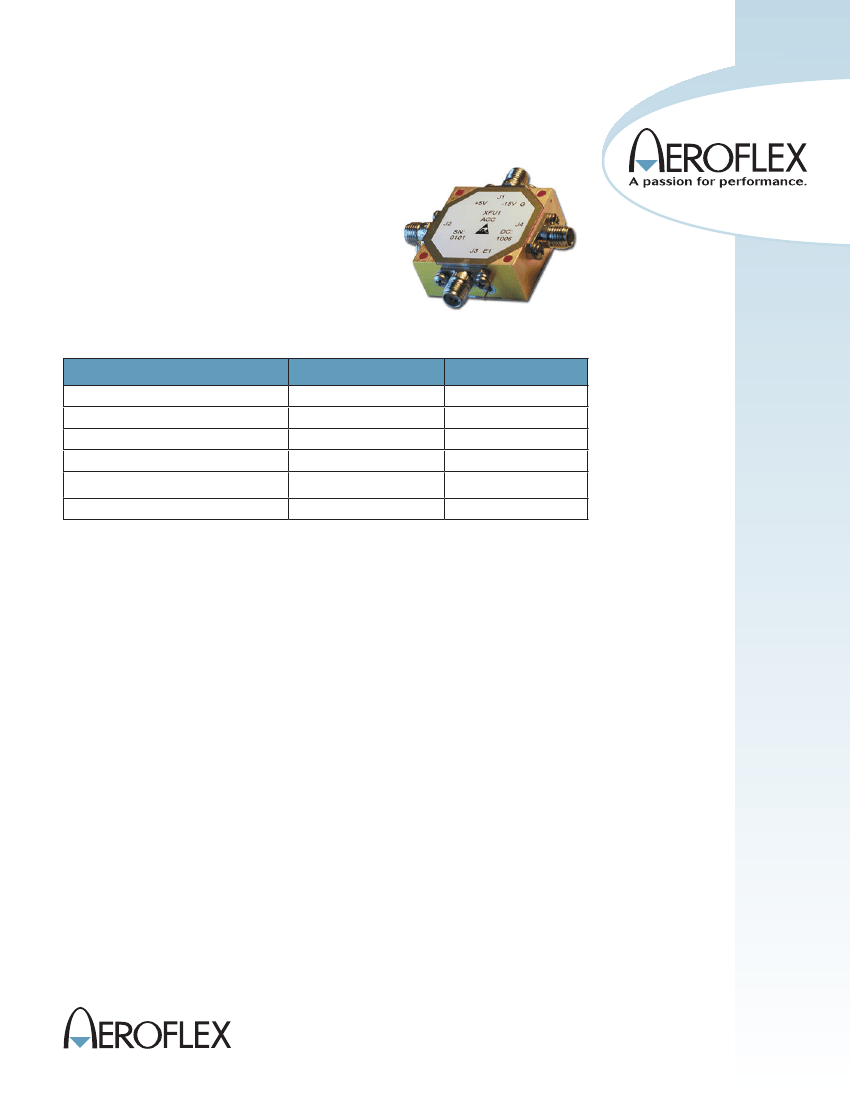

XFX1 Transfer Switch
Features:
•
Incorporated TTL-compatible driver for
convenient system integration and operates
from +5 V and -15 V DC power supplies.
DC blocks at all RF ports.
Ruggedized construction.
RoHS-compliant versions available.
Hermetic versions available.
•
•
•
•
Specifications:
Parameter
Frequency Range
Insertion Loss (max)
VSWR (max) 50 ohms
Isolation (min)
Switching Speed (max)
CW RF Power, Operating (max)
Specification
8 – 10
2.1
1.7
70
100
0.5
Units
GHz
dB
ratio
dB
nsec
W
Notes:
DC Bias:
(Standard)
DC Bias:
(-5 option)
DC Bias:
(-12 option)
Control:
+5 V +/- 0.5 V @ 100 mA max
-15 V +/- 3 V @ 100 mA max
+5 V +/- 0.5 V @ 120 mA max
-5 V +/- 0.5 V @ 100 mA max
+15 V +/- 3 V @ 120 mA max
-15 V +/- 3 V @ 100 mA max
TTL 0:
TTL 1:
J1-J2, J3-J4 Low Loss
J1-J4, J2-J3 Isolation
J1-J4, J2-J3 Low Loss
J1-J2, J3-J4 Isolation
Mechanical Specifications:
Case Style:
Finish:
Bias & Control Pins:
Weight:
Mounting:
XF Outline
Gold Plate per MIL-G-45204,
Chem film per MIL-C-5541
ø0.02” x 0.15” long
35 g max
ø0.10” through holes
(4) places
Switching speed is defined as 50% TTL to 90% RF (t-on) and 50%
TTL to 10% RF (t-off).
Screening:
Internal Visual per MIL-STD-883, Method 2017
Temperature Cycle: -65 °C to +100 °C, 10 cycles
Hermetically-sealed switches are fine and gross leak checked per
MIL-STD-883, Method 1014.
Optional High-Rel screening available upon request. Contact the
factory to discuss your screening requirements.
Environmental Specifications:
MIL-E-5400, MIL-STD-202, MIL-E-16400
Operating Temp:
-55 °C to +85 °C
Storage Temp:
-65 °C to +125 °C
Humidity:
MIL-STD-202F, M103, Cond B
Shock:
MIL-STD-202F, M213, Cond B
Altitude:
MIL-STD-202F, M105, Cond B
Vibration:
MIL-STD-202F, M204, Cond B
Thermal Shock:
MIL-STD-202F, M107, Cond A
Temperature Cycle:
MIL-STD-202F, M105C, Cond D
SIGNAL & CONTROL SOLUTIONS
Revision Date: 2/28/2014
40 Industrial Way East, Eatontown , NJ 07724 [USA]
Phone: (732) 460-0212, Fax: (732) 460-0214
www.aeroflex.com/ascs, email: ascs-sales@aeroflex.com
XFX1 Transfer Switch
SIGNAL & CONTROL SOLUTIONS

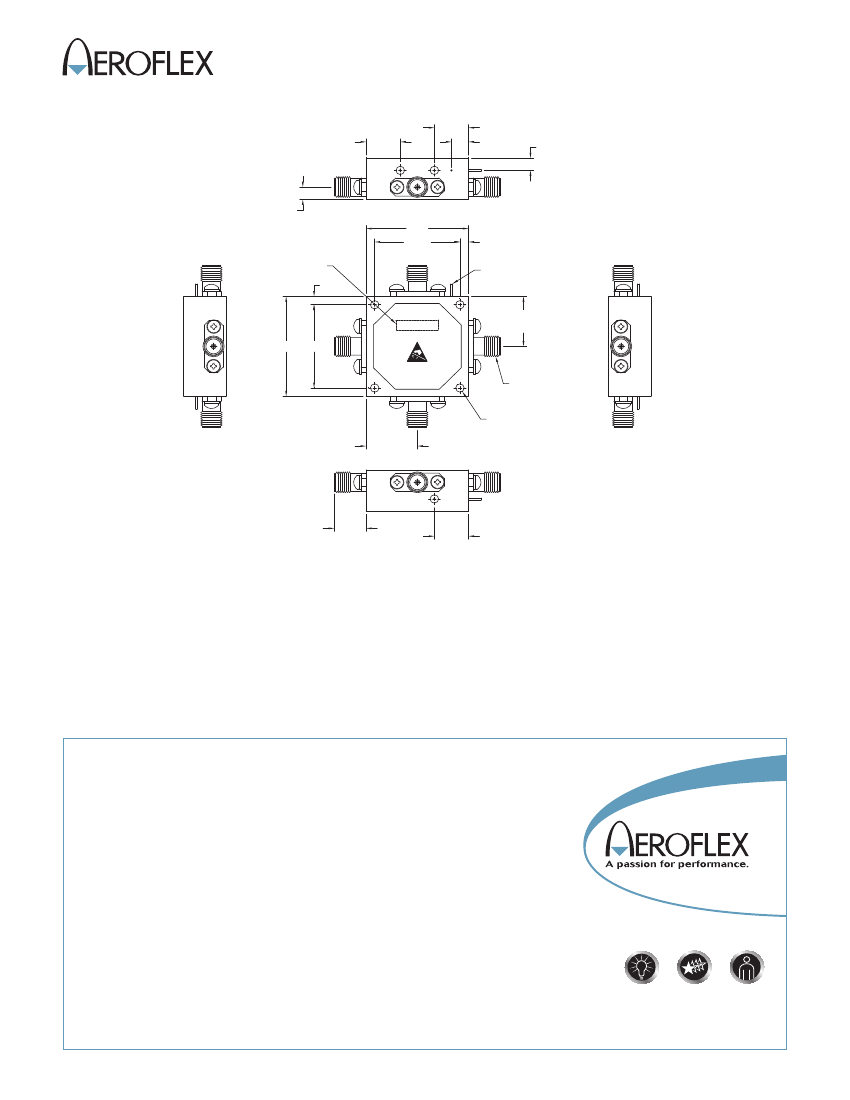

Outline Drawing:
0.40
0.40
0.20
0.15
TYP.
0.15
TYP.
1.20
1.000
0.10
MODEL NUMBER
0.10
+V
Ø0.020 X 0.15 LG
SOLDER PIN
(6) PLCS.
J1
-V
ACC
G
0.60
(2) PLCS.
1.20
1.000
J2
SN:
0000
J4
DC:
WWYY
J3
E1
SMA FEMALE
(4) PLCS.
Ø
0.100 THRU
MOUNTING HOLE
(4) PLCS.
0.60
(2) PLCS.
0.38
REF
0.40
OUTLINE CASE STYLE XF
Part Number Ordering Information:
•
•
•
•
•
•
•
•
Add
Add
Add
Add
Add
Add
Add
Add
“-RC” suffix: RoHS-compliant
“-H” suffix: Hermetic seal
“-5” suffix: +/-5 V DC supplies
“-5-RC” suffix: +/-5 V DC supplies, RoHS-compliant
“-5-H” suffix: +/-5 V DC supplies, Hermetic seal
“-12” suffix: +/-15 V DC supplies
“-12-RC” suffix: +/-15 V DC supplies, RoHS-compliant
“-12-H” suffix: +/-15 V DC supplies, Hermetic seal
Aeroflex Signal & Control Solutions
Aeroflex Microelectronic Solutions
40 Industrial Way East
Eatontown , NJ 07724 [USA]
Fax: (732) 460-0214
Sales
Phone: (732) 460-0212
ASCS-sales@aeroflex.com
ISO 9001:2008 certified
www.aeroflex.com/Microwave www.aeroflex.com/ASCS
Aeroflex Signal & Control Solutions reserves the right to make changes to any products
and services herein at any time without notice. Consult Aeroflex or an authorized sales
representative to verify that the information in this data sheet is current before using
this product. Aeroflex does not assume any responsibility or liability arising out of the
application or use of any product or service described herein, except as expressly
agreed to in writing by Aeroflex; nor does the purchase, lease, or use of a product or
service from Aeroflex convey a license under any patent rights, copyrights, trademark
rights, or any other of the intellectual rights of Aeroflex or of third parties.
Copyright 2014 Aeroflex Signal & Control Solutions. All rights reserved.
Revision Date: 2/28/2014
