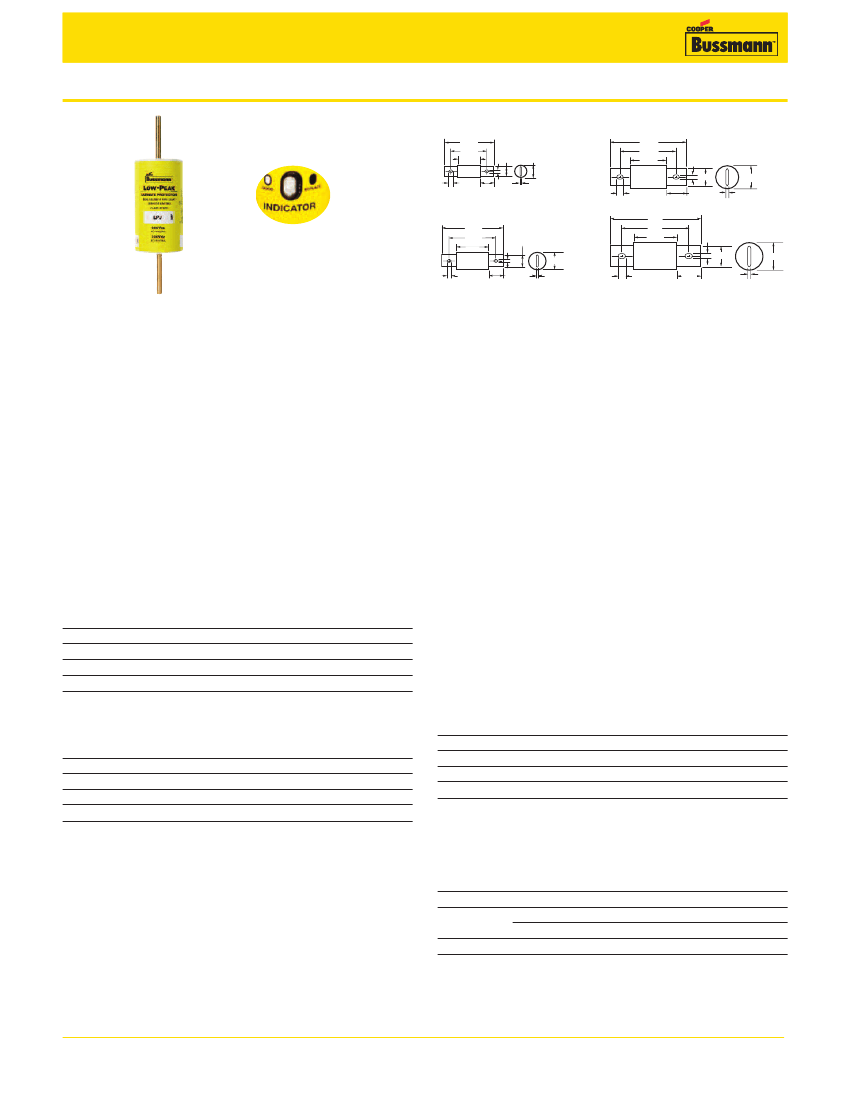

Low-Peak™ Class J
LPJ — 600Vac/300Vdc, 70-600A, Dual Element, Time-Delay Fuses
Dimensions - in
4.63"
3.63"
2.63"
0.38"
65 to 100A
5.75"
4.38"
3.0"
0.75"
1" 0.28"
1.13"
0.13"
7.13"
5.25"
3.38"
0.41"
1.63"
0.53"
225 to 400A
8.0"
6.0"
3.75"
1.5"
0.38"
100 to 200A
1.38"
0.19"
0.69"
450 to 600A
2.13"
1.88"
*2"
0.25"
Available with easyID™
open fuse indication
1.13"
0.28"
0.53"
2"
2.5"
0.38"
Description:
Ultimate protection Class J dual element,
current-limiting, time-delay fuses available with optional open
fuse indication. Time-delay – 10 seconds (minimum) at 500%
of rated current.
Catalog Symbols:
LPJ-(amp)SP (non-indicating)
LPJ-(amp)SPI (indicating)
Ratings:
Volts — 600Vac, 300Vdc
Amps — 70-600A
IR — 300kA Vac RMS Sym.
— 100kA Vdc
Agency Information:
CE, UL Listed, Guide JDDZ, File E4273
CSA Certified, Class 1422-02, File 53787, Class J per CSA
C22.2 No. 248.8,
Catalog Numbers (amps) — Non-indicating Fuses*
LPJ-70SP
LPJ-80SP
LPJ-90SP
LPJ-100SP
LPJ-110SP
LPJ-125SP
LPJ-150SP
LPJ-175SP
LPJ-200SP
LPJ-225SP
LPJ-250SP
LPJ-300SP
LPJ-350SP
LPJ-400SP
LPJ-450SP
LPJ-500SP
LPJ-600SP
* Open fuse indication available on all part numbers by inserting the suffix “I,”
e.g., LPJ-90SPI. Requires 75Vac minimum voltage.
Features:
• Industry’s only UL Listed and CSA Certified fuse with a
300kA Vac interrupting rating that exceeds requirements for
virtually all applications
• Fast short-circuit protection provides optimal arc flash
protection to reduce hazard to personnel
• Easy selective coordination with all Low-Peak fuses using
simple 2:1 ampacity ratio
• Long time-delay minimizes needless fuse openings due to
temporary overloads and transient surges
• Can often be sized for back-up protection against motor
burnout from overload or single-phasing if other overload
protective devices fail
• High degree of current-limitation due to the fast speed-of-
response to short-circuits
• Faster response to damaging short-circuit currents than
mechanical overcurrent protective devices
• Reduces let-through thermal and magnetic forces in order
to protect low withstand rated components
• Proper sizing provides “no damage” Type “2” coordinated
protection for NEMA and IEC motor control in accordance
with IEC Standard 947-4-1
• Dual-element fuses have lower resistance than ordinary
fuses, hence they run cooler
• Lower watts loss reduces power consumption
• Space-saving package for equipment down sizing
Recommended Fuse Blocks
Fuse Amps
70-100
110-200
225-400
450-600
1-Pole
JM60100-1CR
JM60200-1CR
JM60400-1CR
JM60600-1CR
2-Pole
JM60100-2CR
JM60200-2CR
JM60400-2CR
JM60600-2CR
3-Pole
JM60100-3CR
JM60200-3CR
JM60400-3CR
JM60100-3CR
Carton Quantity and Weight
Amp Rating
70–100
110–200
225–400
450–600
Carton Qty.
5
5
1
1
For additional information on the JM Series of fuse blocks, see
product brochure # 3192.
Fuse Reducers For Class R Fuses
Equipment
Fuse Clips
60A
100A
200A
Desired Fuse
(Case) Size
30A
30A
60A
60A
Catalog Numbers
(Pairs)
J-63
J-13
J-16
J-26
†
† Not for bolt-in applications.
0713
BU-SB13689
Page 1 of 3
Data Sheet # 1007
Low-Peak™ Class J
LPJ — 600Vac/300Vdc, 70-600A, Dual Element, Time-Delay Fuses

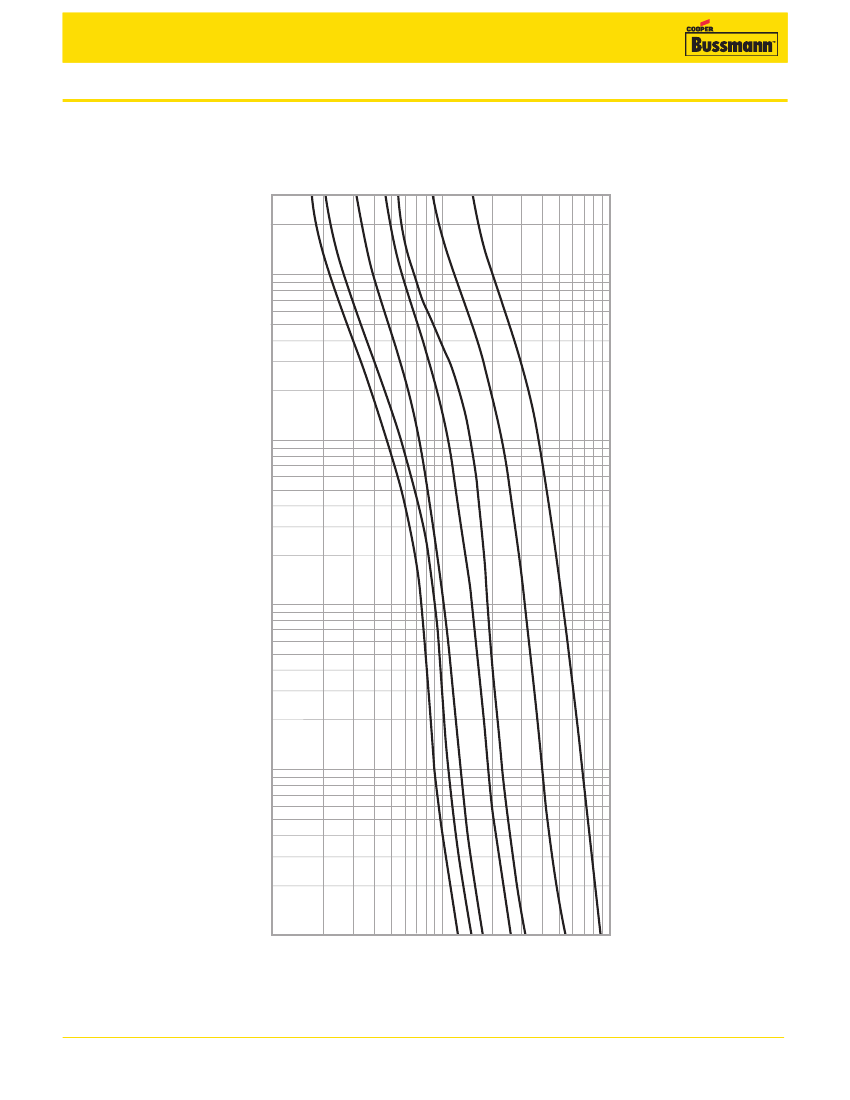

Current-Limitation Curves
100000
90000
80000
70000
60000
50000
40000
30000
B
600A
400A
200A
100A
INSTANTANEOUS PEAK LET-THROUGH CURRENT IN AMPERES
20000
10000
9000
8000
7000
6000
5000
4000
2000
1000
900
800
700
600
500
400
300
200
A
100
100
500
600
700
800
900
1000
200
300
400
6000
7000
8000
9000
10000
2000
3000
4000
5000
60000
70000
80000
90000
100000
30000
20000
40000
50000
200000
300000
PROSPECTIVE SHORT-CIRCUIT CURRENT - SYMMETRICAL RMS AMPS
Current-Limiting Effects
Prosp.
Let-Through Current
S.C.C.
(Apparent RMS Symmetrical Vs. Fuse Rating)
—
100A
200A
300A
400A
1000
1000
1000
1000
1000
3000
2000
2000
3000
3000
5000
2000
3000
5000
5000
10,000
2000
4000
6000
8000
15,000
3000
4000
7000
9000
20,000
3000
4000
7000
10,000
25,000
3000
5000
8000
10,000
30,000
3000
5000
8000
11,000
35,000
4000
5000
9000
12,000
40,000
4000
6000
9000
12,000
50,000
4000
6000
10,000
13,000
60,000
4000
6000
11,000
14,000
80,000
5000
7000
12,000
15,000
100,000
5000
8000
12,000
17,000
150,000
6000
9000
14,000
19,000
200,000
6000
9000
16,000
21,000
250,000
7000
10,000
17,000
23,000
300,000
7000
11,000
18,000
24,000
