TDA3840T datasheet, PDF - EEWORLD Datasheet

TDA3840T: DescriptionIC AM, VIDEO DISCRIMINATOR, PDSO20, Receiver IC; CategoryAnalog mixed-signal IC Consumption circuit; File Size332KB，12 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

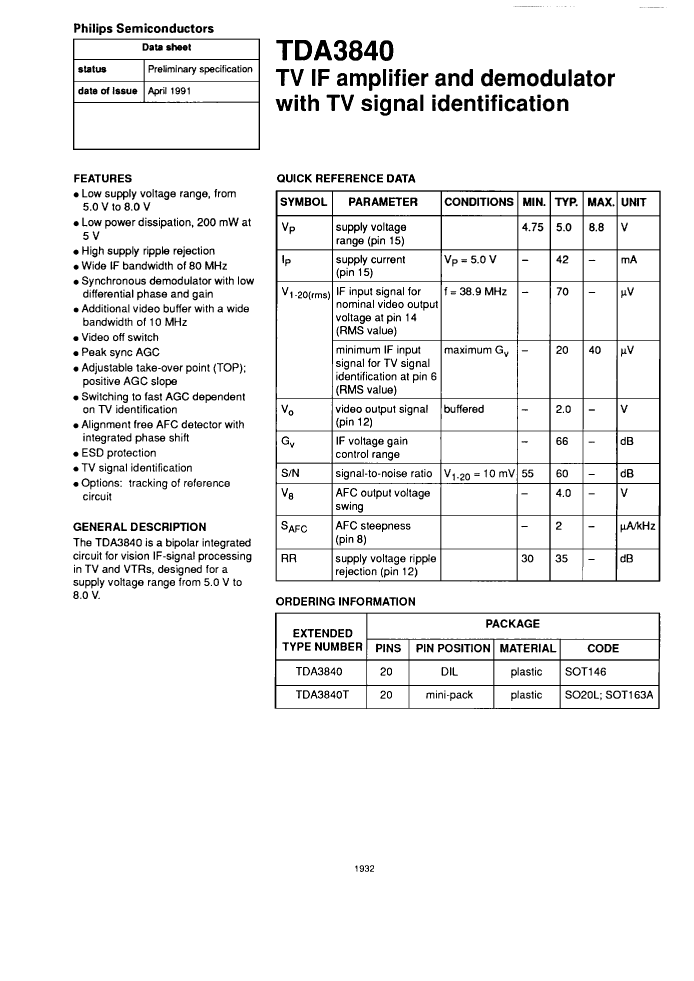

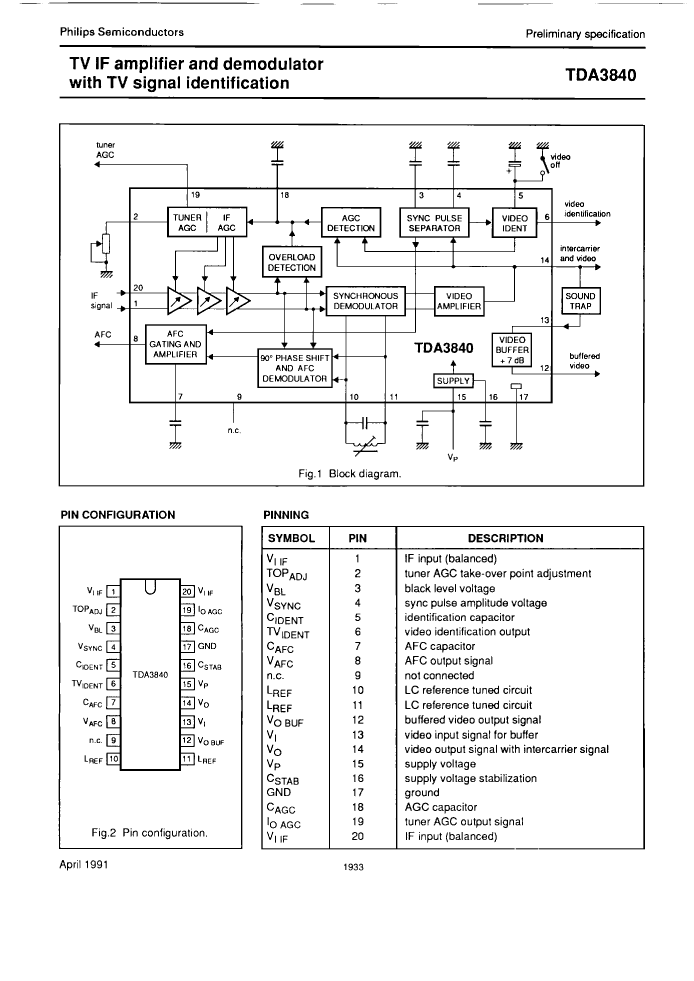

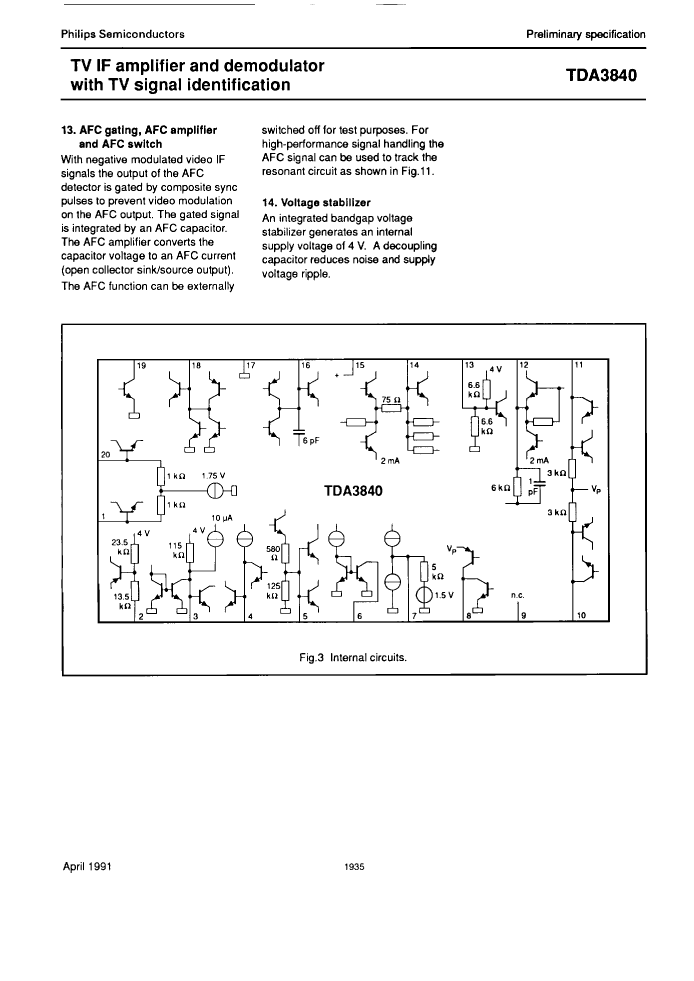

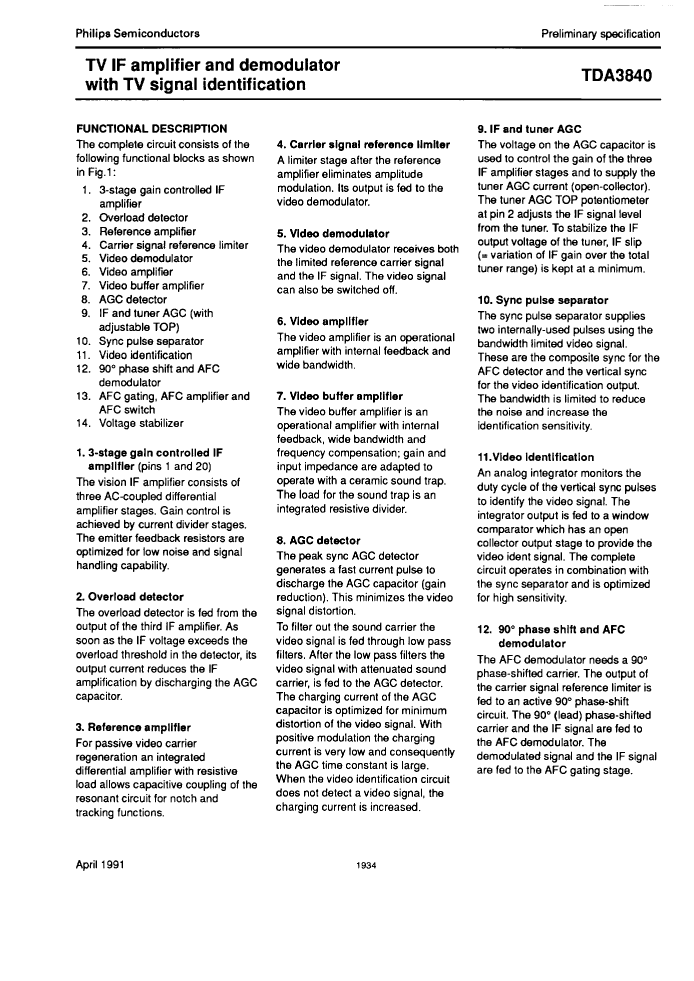

TDA3840T Overview

IC AM, VIDEO DISCRIMINATOR, PDSO20, Receiver IC

Parameter Name	Attribute value
Maker	NXP
package instruction	SOP,
Reach Compliance Code	unknown
Commercial integrated circuit types	VIDEO DISCRIMINATOR
Demodulation type	AM
JESD-30 code	R-PDSO-G20
length	12.8 mm
Number of functions	1
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Output voltage nominal (AM)	2000 mV
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	2.65 mm

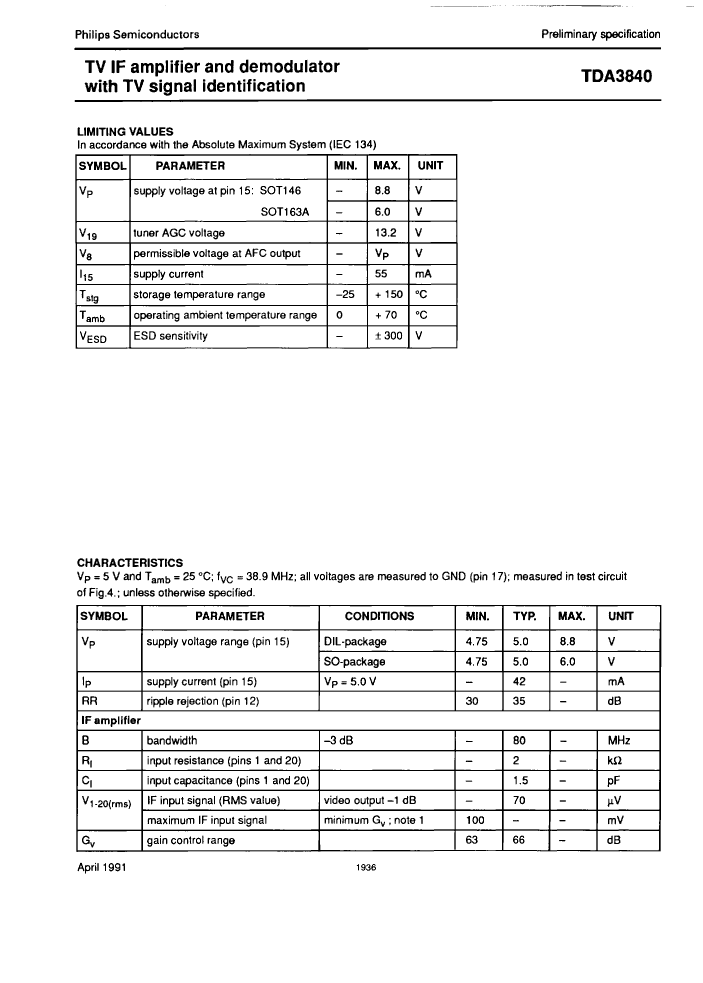

Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	4.75 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm

	TDA3840T	TDA3840	TDA3840T-T
Description	IC AM, VIDEO DISCRIMINATOR, PDSO20, Receiver IC	IC AM, VIDEO DISCRIMINATOR, PDIP20, Receiver IC	IC AM, VIDEO DISCRIMINATOR, PDSO20, Receiver IC
Maker	NXP	NXP	NXP
package instruction	SOP,	DIP,	SOP,
Reach Compliance Code	unknown	unknown	unknown
Commercial integrated circuit types	VIDEO DISCRIMINATOR	VIDEO DISCRIMINATOR	VIDEO DISCRIMINATOR
Demodulation type	AM	AM	AM
JESD-30 code	R-PDSO-G20	R-PDIP-T20	R-PDSO-G20
length	12.8 mm	26.73 mm	12.8 mm
Number of functions	1	1	1
Number of terminals	20	20	20
Maximum operating temperature	70 °C	70 °C	70 °C
Output voltage nominal (AM)	2000 mV	2000 mV	2000 mV
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	4.2 mm	2.65 mm
Maximum supply voltage (Vsup)	6 V	8.8 V	6 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V
surface mount	YES	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
width	7.5 mm	7.62 mm	7.5 mm
